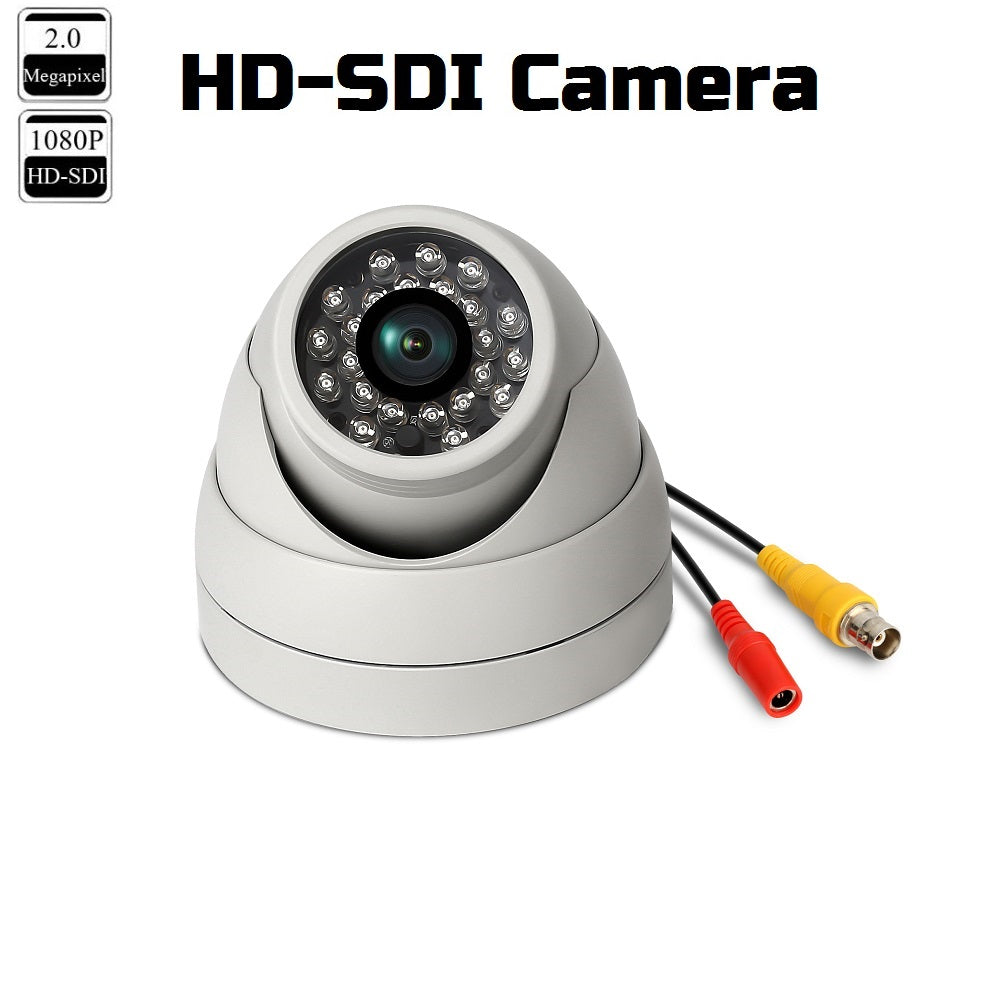

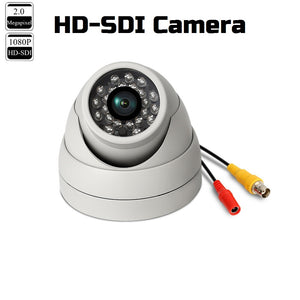

Accept OEM in small Qty CCTV HD-SDI 2.0MP 1080P WDR 3.6mm lens Security Metal housing SDI IR Camera with Night Vision outdoor dome cam
Product overview
•SDI 1080p(1920x1080)@30/25fps
•Support WDR,3D-DNR,DEFOG
•OSD menu,Motion detection,Privacy Zone,HLC,BLC
•Dual Output-Megapixel HD-SDI(BNC)&CVBS:1.0 Vp-p 750hm
|
Model No. |
OSY-SDI EB5102 |
|
Image Sensor |
2.0Mega Pixel, Panasonic CMOS Sensor |
|
Effective pixels |
1920(H) x 1080(V) PAL 25fps NTSC 30fps |
|
Scanning system |
Progressive Scan |
|
Minimum illumination |
0.001 Lux |
|
Lens |
3.6mm Lens |
|
IR view distance |
N/A |
|
WDR (Long and Short exposure) |
OFF/ON(Level Adjustable) |
|
O.S.D |
Built-in |
|
3D-DNR (3D Digital Noise Reduction) |
OFF/ON(LOW/MIDDLE/HIGH) |
|
Sens-Up |
OFF/ON |
|
Motion Detection |
OFF/ON |
|
Privacy Zone |
OFF/ON |
|
HLC |
OFF/ON |
|
B.L.C. control |
OFF/ON |
|
Defog |
OFF/ON |
|
White balance |
AWB/ATW/PUSH/MANUAL |
|
A.G.C |
HIGH / LOW |
|
Electronic shutter Speed |
AUTO/MANUAL/FLK |
|
Video output |
HD-SDI(SMPTE 292M compatible) / CVBS:1.0 Vp-p Composite Signal (75ohm) |
|
Operation temperature |
-30℃ - +50℃ |
|
Material |
Metal |
|
Power supply |
DC12V(+/-15%) |
|
Power Consumption |
1000mA |
Item Included:
1 x CCTV HD-SDI 1080P Dome Camera (Note: The SDI Camera is only compatible with SDI devices)
1 x OSD Menu Cable
