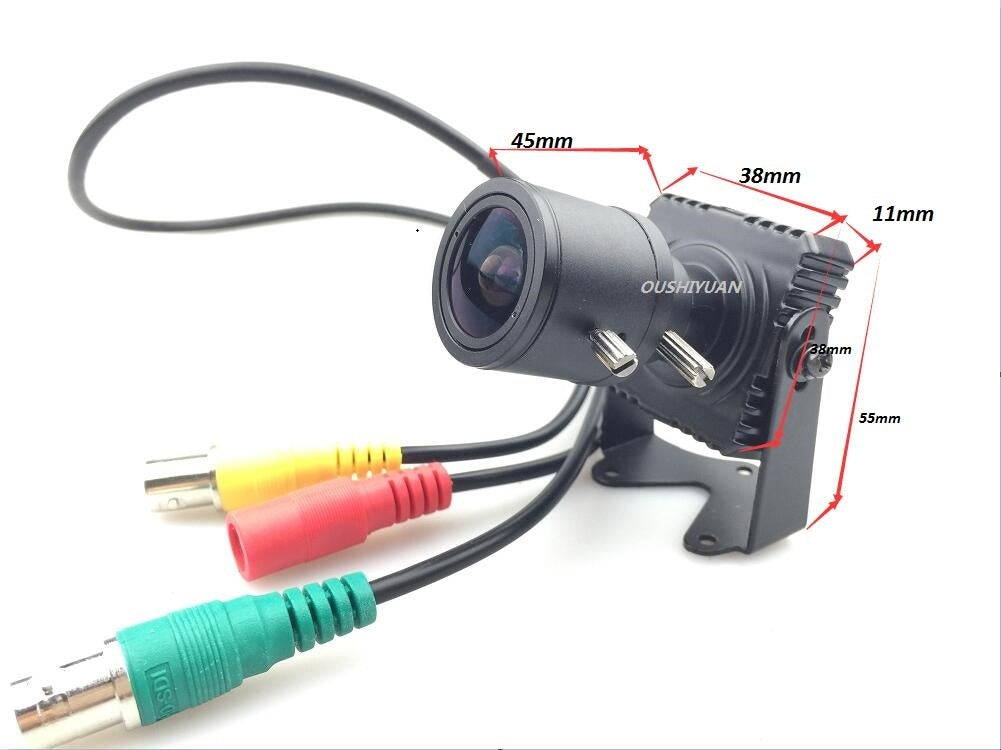

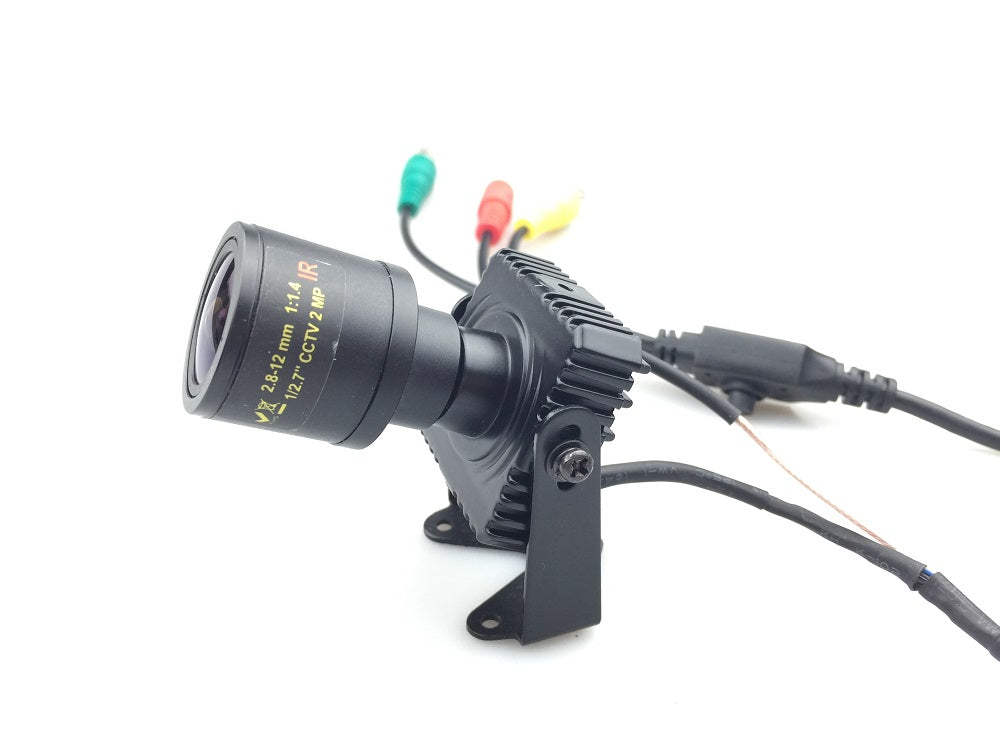

CCTV 2.0MP Full 1080P Lens Zoom 2.8-12mm HD-SDI Mini Box Camera
OSYBZ-SID553 HD SDI Camera Using 1/2.8 CMOS image sensor, SDI 2 MP 1080P output
1080P high definition image quality, effective resolution reaches 1920*1080, no delay, no compression, low loss and real-time transmission
OSD Menu: include D-WDR(Digital-WDR)/ DS-WDR(double scan-WDR)
1080P high definition image quality, effective resolution reaches 1920*1080, no delay, no compression, low loss and real-time transmission
OSD Menu: include D-WDR(Digital-WDR)/ DS-WDR(double scan-WDR)
Product overview
•2.0 Mega Pixel, Panasinic CMOS Sensor •1080p(1920x1080) 30/25fps
•Support WDR,3D-DNR,DEFOG
•OSD menu,Motion detection,Privacy Zone,HLC,BLC
•Dual Output-Megapixel HD-SDI(BNC) CVBS:1.0vp-p 750hm
Technical parameters
|
Model No. |
OSYBZ-SID553 |
|
Image Sensor |
2.0 Mega Pixel, Panasonic CMOS(MN34041) Sensor |
|
Effective pixels |
1920(H) x 1080(V) |
|
Scanning system |
Progressive Scan |
|
Minimum illumination |
0.001 Lux |
|
Lens |
2.8-12mm Lens |
|
IR view distance |
N/A |
|
WDR (Long and Short exposure) |
OFF/ON(Level Adjustable) |
|
O.S.D |
Built-in |
|
3D-DNR (3D Digital Noise Reduction) |
OFF/ON(LOW/MIDDLE/HIGH) |
|
Sens-Up |
OFF/ON |
|
Motion Detection |
OFF/ON |
|
Privacy Zone |
OFF/ON |
|
HLC |
OFF/ON |
|
B.L.C. control |
OFF/ON |
|
Defog |
OFF/ON |
|
White balance |
AWB/ATW/PUSH/MANUAL |
|
A.G.C |
HIGH / LOW |
|
Electronic shutter Speed |
AUTO/MANUAL/FLK |
|
Video output |
HD-SDI(SMPTE 292M compatible) / CVBS:1.0 Vp-p Composite Signal (75ohm) |
|
Operation temperature |
-10C - +50C |
|
Operation Humidity |
Within 95% RH |
|
Power supply |
DC12V(+-15%) |
|
Power Consumption |
100mA |
Item Included:
- 1 x CCTV 2.0MP Lens 2.8-12mm 1080P MINI SDI Camera
