CCTV HD 1080P SDI Camera Lens 3.6mm Application Fields Security Monitoring Industrial Medical Live Broadcast
- Product description:
OSYBZ-SD30 is 1080P HD-SDI Miniature Camera, using 2 mega pixel panasonic progressive scan CMOS chip which have 1080P clear picture, good real-time,lower illumination, with 3D noise reduction and WDR functions, can use in bank, army, prison and so on.
- Characteristics description：
1080P high-definition real-time output;HD - SDI video signal output, support SMPTE292M standard
WDR, 3DNR, BLC functions; Defog function; 96X digital zoom; Privacy mask, motion detection
- Specitications：
|
Image Sensor |
1/3”Progressive-Scan CMOS |
|
Total Pixel |
2010(H)x1108(V) |
|
Actual pixels |
1920(H)x1080(V) |
|
Lens |
3.6mm Mega pixel lens |
|
Resolution |
1100TV Line |
|
Min.Illumination |
Color 0.2lux，Black 0.01lux |
|
Shutter |
Auto 1/25~1/3000 |
|
Frame cumulative |
Auto（Max x4） |
|
SNR |
50dB |
|
BLC |
WDR, BLC,(D-WDR) |
|
DNR |
3D |
|
Digital amplification |
x96 |
|
Privacy covered |
32 Area |
|
Motion detecting |
OK |
|
OSD |
OK |
|
Vedio Output |
HD-SDI/CVBS |
|
Power |
DV12V |
|
Consumed Power |
Max 2W |
|
Operating temperature |
-10℃~+50℃ |
|
Operating Humidity |
Max 90%RH |
|

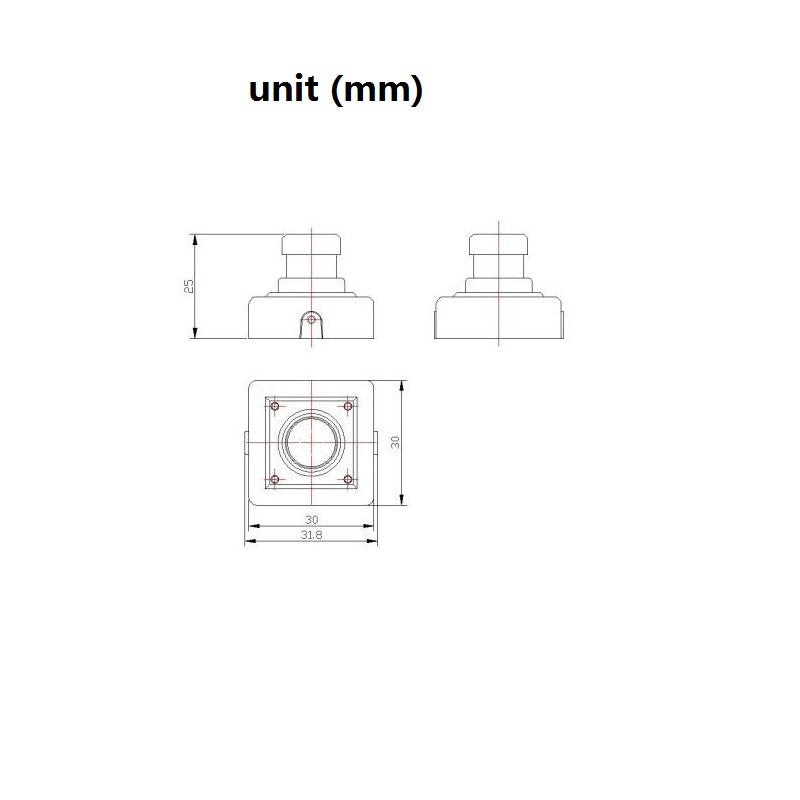

Size |
30*30mm |
|
Weight |
220 g |
