Industry 4K HDMI Camera 2160P30FPS 1080P60fps Streaming Live Video with 6-12mm Lens

Working state overtemperature

The working heat of the camera will be relatively large, which will not affect

the normal use.

No image displayed

Try to change the HDMI output resolution

Picture distortion

The distortion is caused by the lens, 6-12MM lens

Solution ： IMX 334 Sensor 8MP 4K CMOS Senso

HDMI output：3840*2160@30FPS  1920*1080@120FPS&60FPS

The resolutions listed above need to be supported by your

monitor or capture device. For example, if your monitor

does not support 4K, The

will not appear in the resolution selection list.(Note Use a high-quality HDMI cable)

The sensor: IMX 334

Image storage mode: TF card + UVC

video: 3840*2160P30

Exposure time: 0-30MS

Parameter Settings: Color, mirroring, gridlines, scales, etc

The system software: Youngwin OS

PC software: S-EYE2.0

Exposure：AUTO / Manual

White Balance：AUTO / Manual

Power On：Auto Power On when plug ac adapter
Press camera middle button

Power O：Long press camera middle button power o

Lens：C/CS mount

Power Mode：DC 12V 1A

Screen Orientation Change：Support screen rotation 180 degrees and Mirroring

Zoom mode：Manual ( optical zoom )

Focus mode：Manual

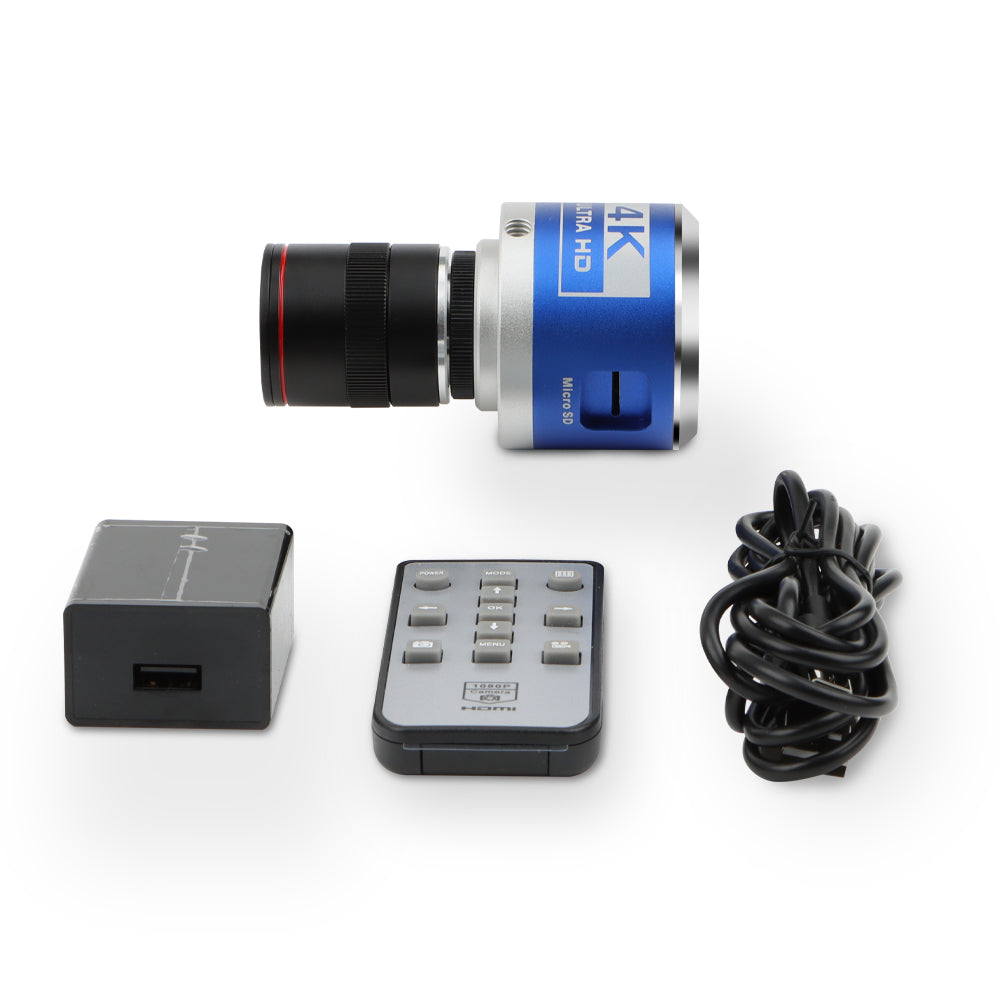

packing list

1 * 6-12mm lens HDMI camera

1 * DC12V power supply
