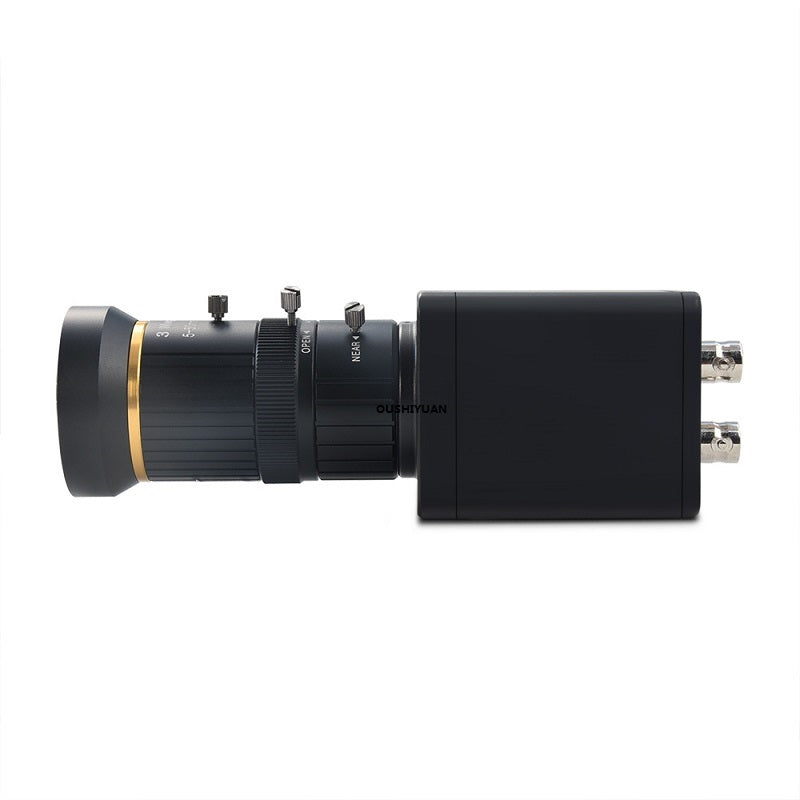

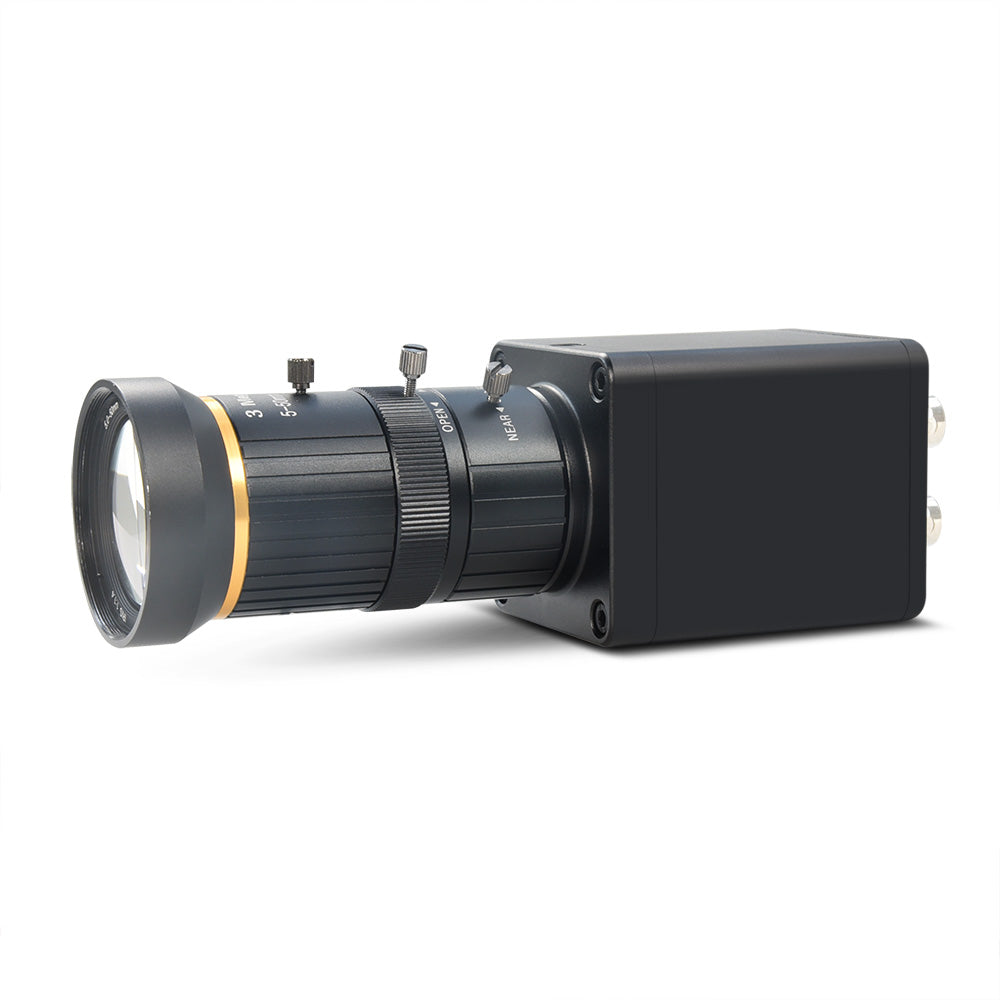

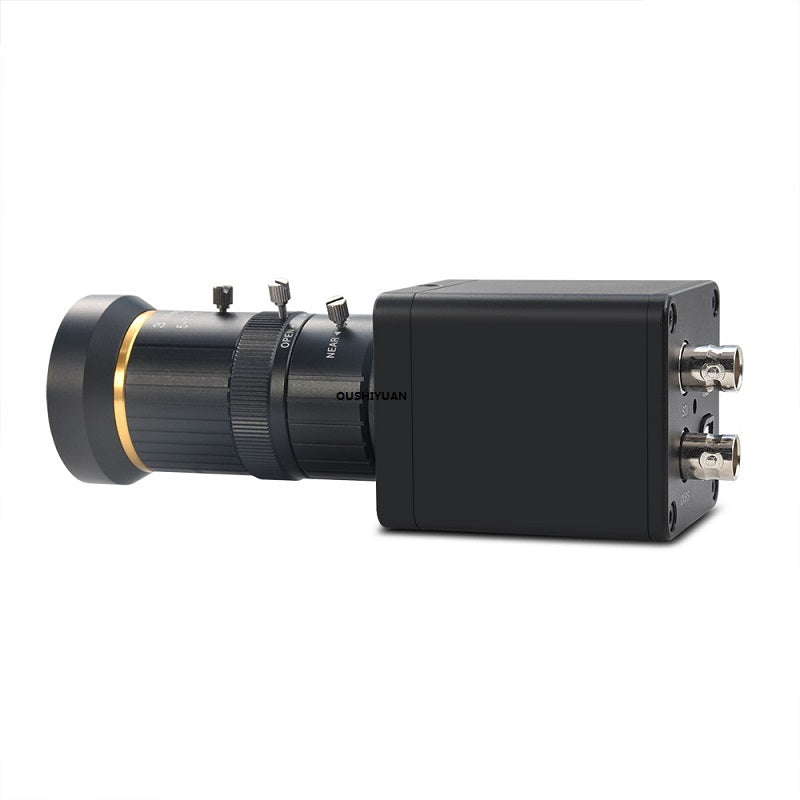

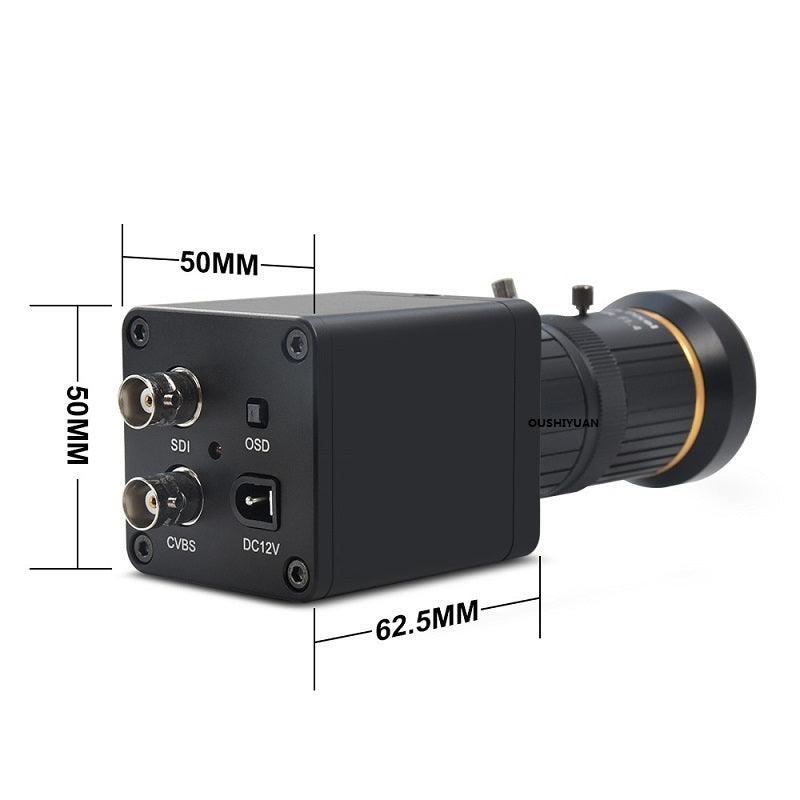

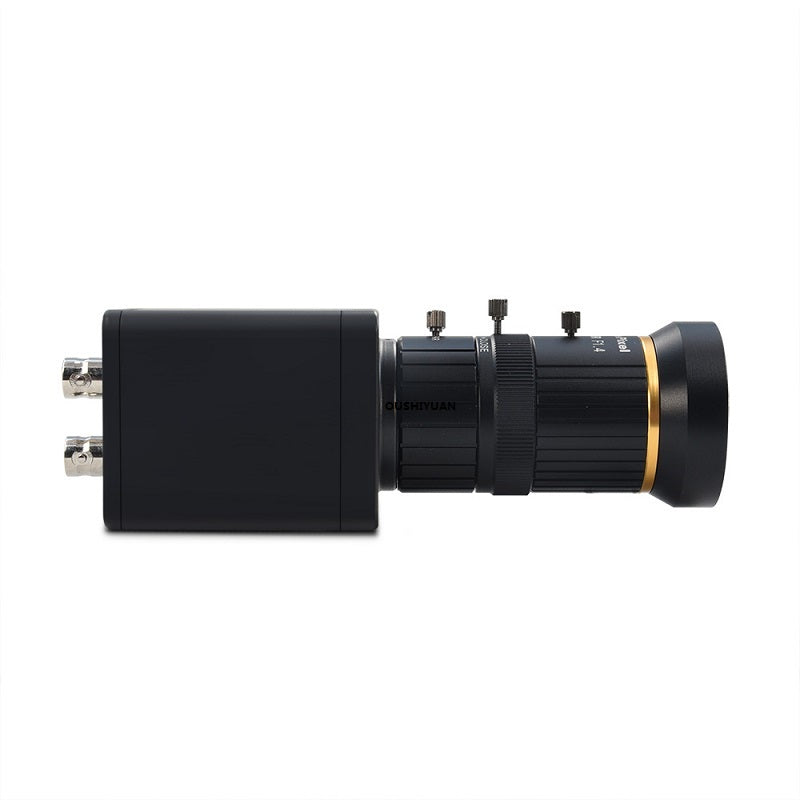

CCTV HD SDI 2.0MP 1080P 3G SDI Industrial 1080i 60fps/50fps Lens 5-50mm Manual Varifocal Security Digital SDI Camera HD lens -black
CCTV 3G SDI Camera Using 1/2.8 CMOS image sensor, 3G / HD SDI digital signal and CVBS analog signal output
1080P high definition image quality, effective resolution reaches 1920*1080, no delay, no compression, low loss and real-time transmission
Security Digital SDI Camera 2.0Mega Pixel Panasonic V34229 +Eyenix 778
1080p(1920x1080)@NTSC 60fps/30fps PAL 50fps / 25fps(You can choose from the menu)
Support WDR,3D-DNR
Defog:Use this function in the fog weather.
OSD menu,Motion detection,Privacy Zone,HLC,BLC
TV Out(BNC) with NTSC/PAL Selectable

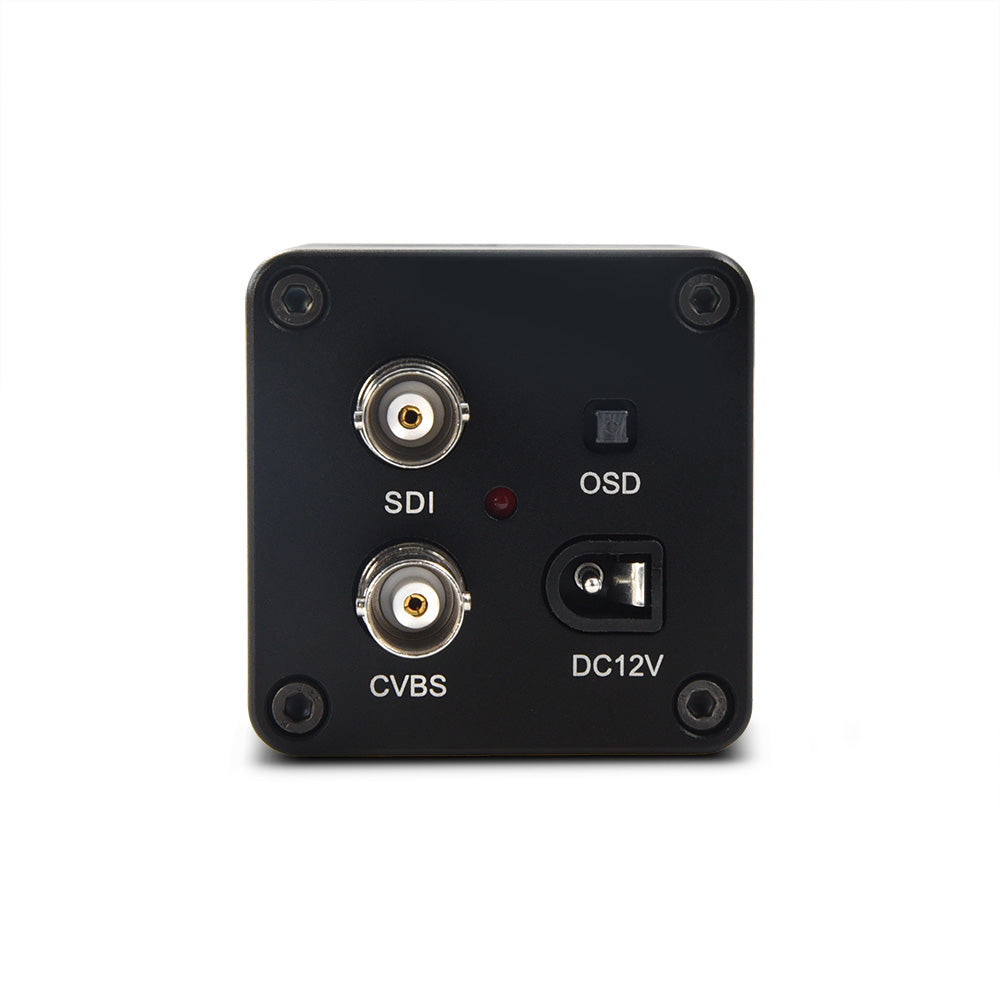

Dual Output-Megapixel HD-SDI(BNC)&CVBS:1.0 Vp-p 75ohm
| Model No. |
OSY-SDI-60
|
||||||
| Image Sensor | 2.0Mega Pixel,Panasonic V34229 +Eyenix 778 | ||||||
| Effective pixels | 1920(H) x 1080(V) | ||||||
| Scanning system | Progressive Scan | ||||||
| Minimum illumination | 0.2 Lux(Color/Day) 0.01Lux(B/W) | ||||||
| Lens | 5-50mm Manual Varifocal | ||||||
| IR view distance | N/A | ||||||
| WDR (Long and Short exposure) | OFF/ON(Level Adjustable) | ||||||
| O.S.D | Built-in | ||||||
| 3D-DNR (3D Digital Noise Reduction) | OFF/ON(LOW/MIDDLE/HIGH) | ||||||
| Sens-Up | OFF/ON | ||||||
| Motion Detection | OFF/ON | ||||||
| Privacy Zone | OFF/ON | ||||||
| HLC | OFF/ON | ||||||
| B.L.C. control | OFF/ON | ||||||
| Defog | OFF/ON | ||||||
| White balance | AWB/ATW/PUSH/MANUAL | ||||||
| A.G.C | HIGH / LOW | ||||||
| D-ZOOM | 1.0x - 8.0x | ||||||
| MIRROR | OFF/ON | ||||||
| FLIP | OFF/ON | ||||||
| TV system | PAL/NTSC | ||||||
| Electronic shutter Speed | AUTO/MANUAL/FLK | ||||||
| Video output | HD-SDI(SMPTE 292M compatible) / CVBS:1.0 Vp-p Composite Signal (75ohm) | ||||||
| Operation temperature | -10℃ - +50℃ | ||||||
| Operation Humidity | Within 95% RH | ||||||
| Power supply | DC12V(+/-15%) | ||||||
| Power Consumption | 1000mA | ||||||
1X SDI Camera
1X Power supply
As a product and industry expert, we dedicate ourselves to the security camera field by conducting thorough research and development and offering innovative products for sale. Any inquiries or issues during the purchasing procedure can be directed towards us. With confidence, we promise to deliver top-notch technical assistance and exceptional post-sale services.
We can be reached at : Lisa@osybz.com or Wechat: 13332901132.
