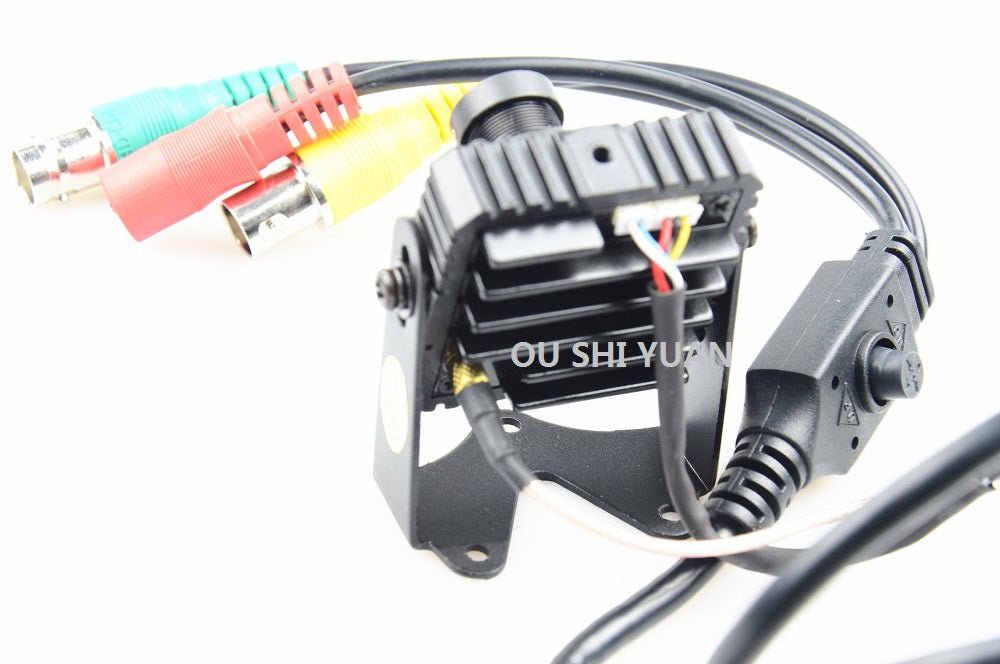

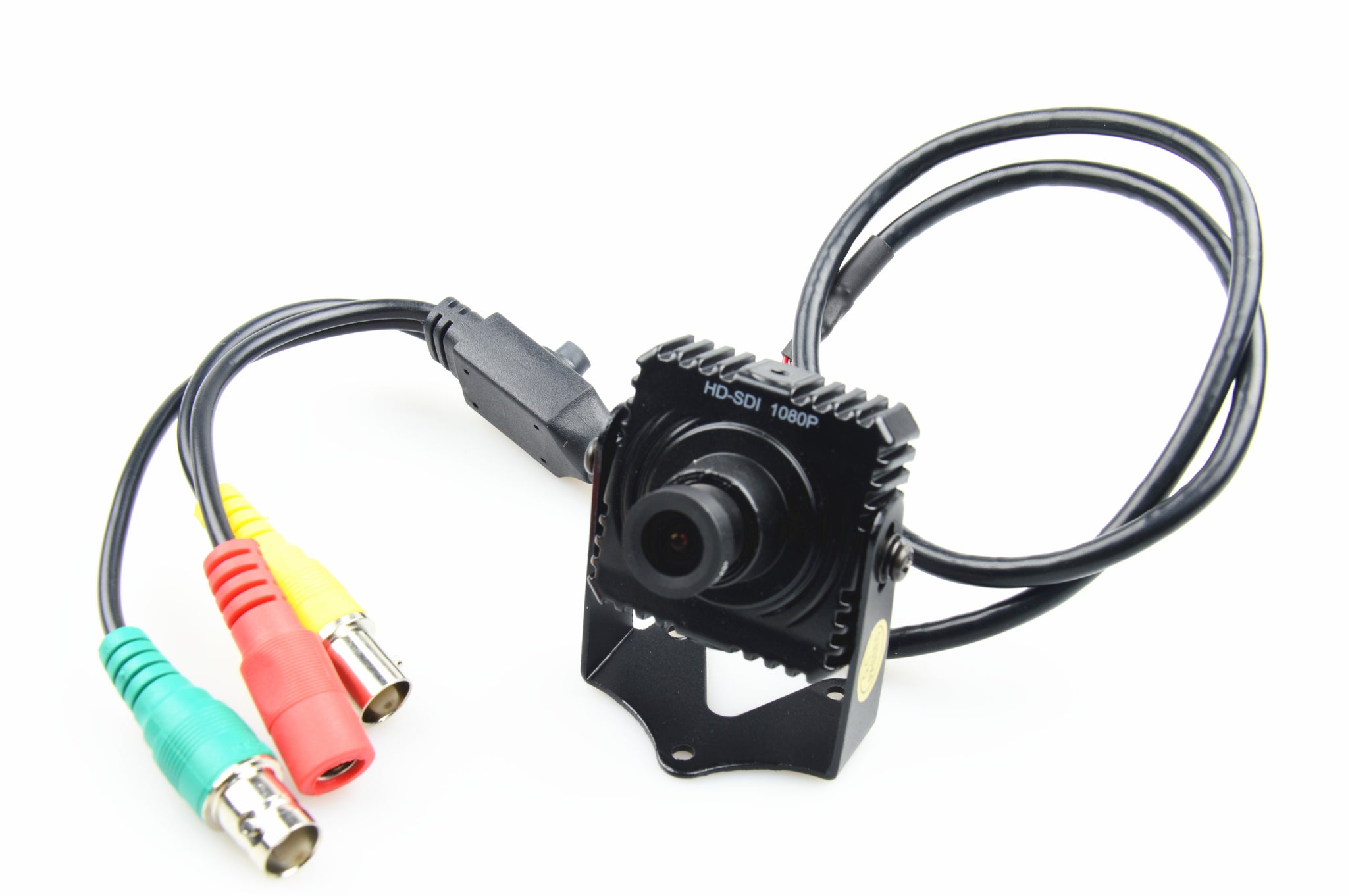

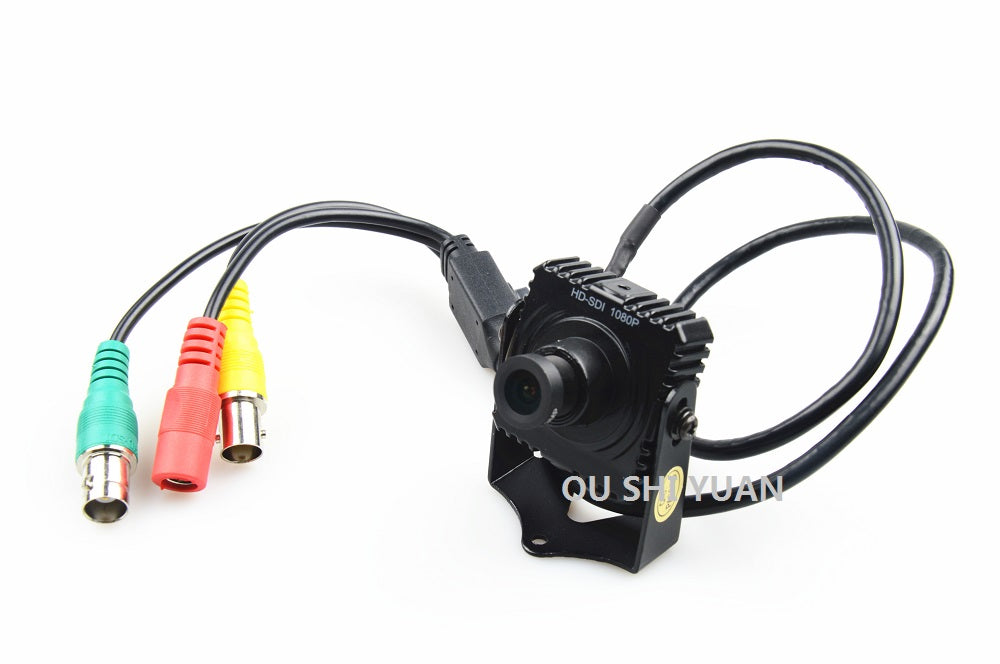

CCTV SDI 2.1MP 1080P Full Lens 3.6MM HD SDI OSD Menu WDR Security Mini SDI Box Camera For SDI DVR
Product overview2.1 Mega Pixel, IMX Sony CMOS Sensor
1080p(1920x1080)@30/25fps
Support WDR,3D-DNR,DEFOG
OSD menu,Motion detection,Privacy Zone,HLC,BLC

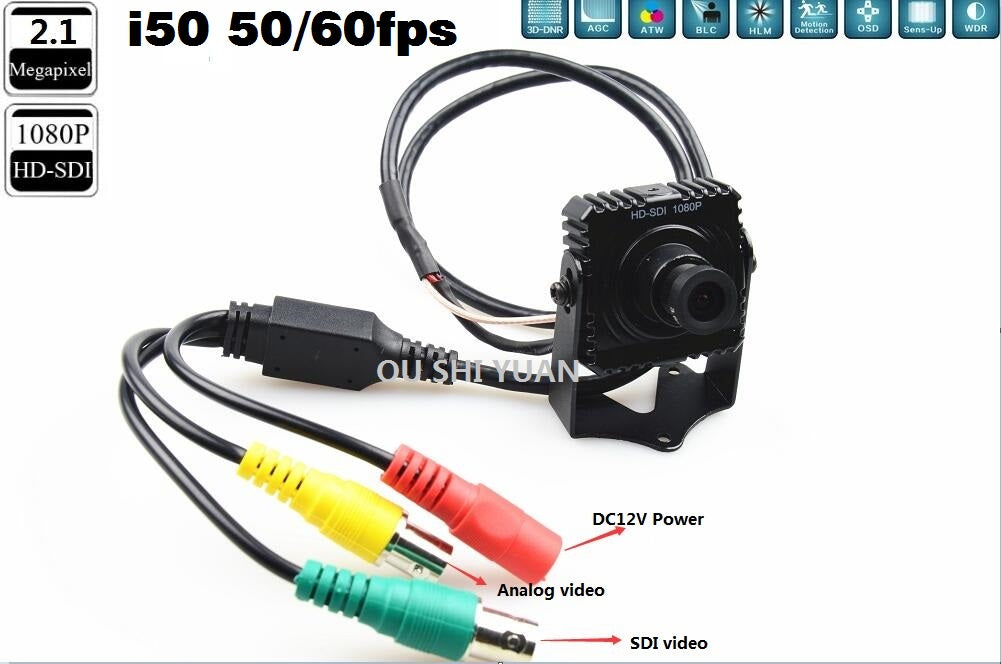

Dual Output-Megapixel HD-SDI(BNC)&CVBS:1.0 Vp-p 750hm
Technical parameters
|
Model No. |
OSY-SID332 (3.6mm) |
|
Image Sensor |
201 Mega Pixel, Sony CMOS Sensor |
|
Effective pixels |
1920(H) x 1080(V) |
|
Scanning system |
Progressive Scan |
|
Minimum illumination |
0.001 Lux |
|
Lens |
3.6mm Korea Lens |
|
IR view distance |
N/A |
|
WDR (Long and Short exposure) |
OFF/ON(Level Adjustable) |
|
O.S.D |
Built-in |
|
3D-DNR (3D Digital Noise Reduction) |
OFF/ON(LOW/MIDDLE/HIGH) |
|
Sens-Up |
OFF/ON |
|
Motion Detection |
OFF/ON |
|
Privacy Zone |
OFF/ON |
|
HLC |
OFF/ON |
|
B.L.C. control |
OFF/ON |
|
Defog |
OFF/ON |
|
White balance |
AWB/ATW/PUSH/MANUAL |
|
A.G.C |
HIGH / LOW |
|
Electronic shutter Speed |
AUTO/MANUAL/FLK |
|
Video output |
HD-SDI(SMPTE 292M compatible) / CVBS:1.0 Vp-p Composite Signal (75ohm) |
|
Operation temperature |
-10 - +50 |
|
Operation Humidity |
Within 95% RH |
|
Power supply |
DC12V(+/-15%) |
|
Power Consumption |
100mA |
1* SDI 1080P 2.1MP SDI MINI Camera
Advantage: High bandwidth, low latency, strong anti-interference capability, and support for long-distance transmission.
Application fields: such as live broadcasting, multi-camera shooting, film production, etc., real-time monitoring, on-site switching, integration with professional equipment, high-resolution shooting, etc.
SDI cameras, with their high-quality video and low-latency features, are widely applied in broadcasting and television, film and television production, security surveillance, medical field, education, meetings, industrial inspection, transportation, sports, and scientific research.
