Laser AF Autofocus 10X Lens HD 1080P Live Broadcast Video USB HDMI Camera

10X-USB/HDMI dual output

  live all-in-one camera

l Do not use the camera in
extreme temperature environments

Please use the camera in the temperature range of -10°C to 50°C.

The use of air vents is required in high temperature environments.

l Do not use the camera in a
humid environment as this may cause blurred images

l Do not use this camera under unstable lighting
conditions.

Flickering light will degrade
the picture quality.

l Do not use this camera in an air or oil leak
place, as the camera may not function properly

l Donot disassemble this camera

There are no user-friendly accessories inside.

l Do not drop the camera as this may cause
malfunction.

l Do not expose the camera to bright light for a
long time to avoid damage to the CMOS.

l Do not expose the camera to
rain or any liquid.

If the camera is exposed to
moisture, please dehumidify it immediately.

The minerals contained in the
liquid will corrode the electronic components.

l SONY 1/2.8’’ CMOS 5M Image
Sensor

IMX335LQN-C Progressive Scan

The high pixel CMOS sensor provides superb clarity and resolution image
quality with low noise, and enables camera video with high signal-to-noise
performance.

l Image
Processor

High-performance image processor integrates advanced ISP image
processing algorithm and has built-in 3D noise reduction algorithm for detailed
and vivid realistic image reproduction. It not only provides the best image
quality with high color reproduction, but also provides smooth video and
extreme detailed rendering.

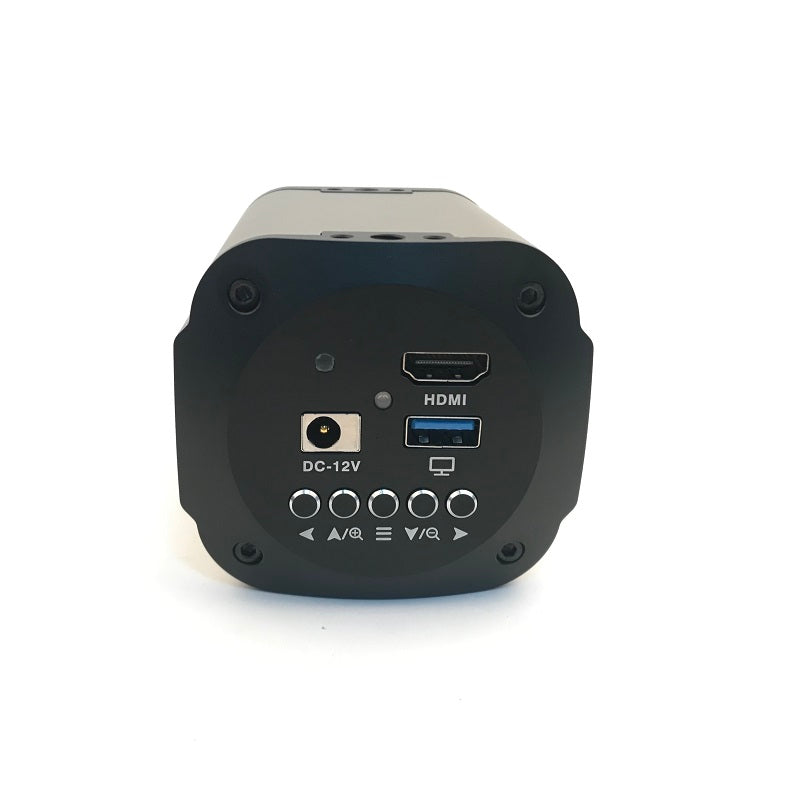

lVideo signal output

USB2.0 : MJPG/YUY2
format, can output 9：16 vertical screen resolution, such as 1080x1920、720x1280

HDMI：1080P
and 720P

Support
USB2.0 and HD dual output.

lFocus mode

TOF
recognition, precise auto-focus

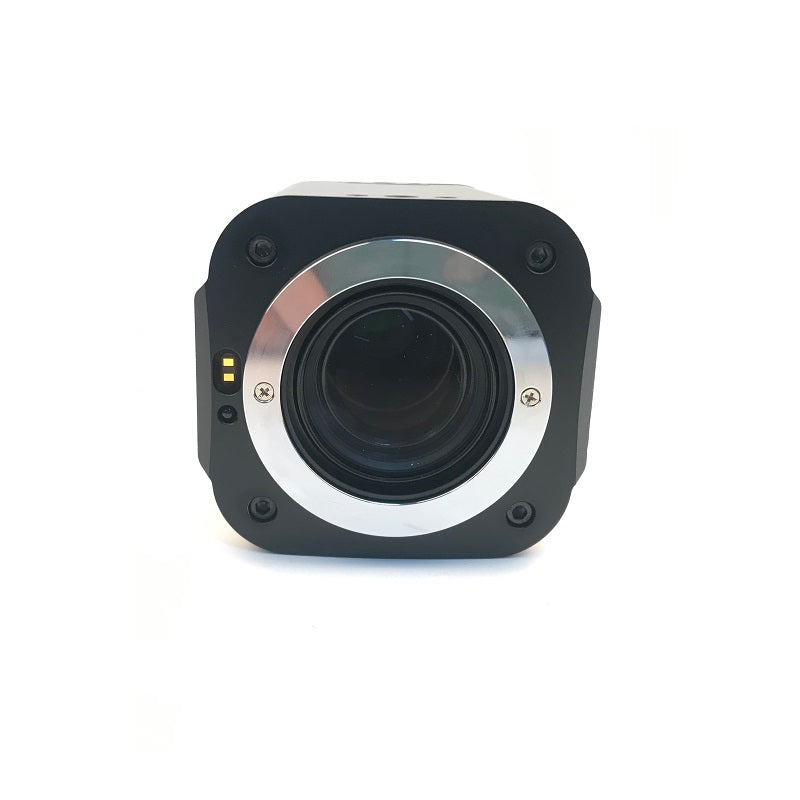

l10X optical zoom lens

High
precision 10x optical magnification lens, 67.5 degrees without distortion
F1.76~F3.0

lImage 3A processing

Auto exposure, Auto white balance and Auto focus

lExternal communication method

UVC1.0 Standard Protocol and
extension Protocol

lUpgrade method

USB upgrade

l Preset
position function

Panoramic and close-up
switching: Set the position of panoramic or close-up shots through preset position.

No need to cooperate with
anyone, the anchor can easily complete the live room operation by himself or

herself.

lAdvanced function(1)Digitalzoom(2)Mirror, flip(3)3Dnoise reduction(4)Chineseand English menu(5)Anti-flicker(6)Widedynamic

5.1. Focus

This camera
supports 10x optical zoom, 12x digital magnification

Optical zoom
10x, f = 4.32 mm to 40.9 mm (F 1.76 to F 3.0)

Digital
magnification 12x

Focusing mode：

Auto mode：Adjusts focus position
automatically

Manual mode：Adjusts the focus position
manually when the magnification is changed

One-touch
mode：When the one-touch auto focus
command is issued, the camera enters auto focus mode. After the focus position
is automatically adjusted, it will switch to manual adjustment mode

Zoom
tracking mode：

Auto mode：Auto
adjust the focus position during the zooming process

Zoom speed supports 8 kinds of zoom speed:0~7

Lens reset: This function refreshes the focus position to
prevent the lens from being out of step

5.2. Exposure

Full
auto：Auto aperture, automatic gain
and automatic shutter speed

Shutter
Priority：Adjustable electronic shutter speed
(1/50~1/10,000), automatic aperture and gain

adjustment

Aperture
priority：Adjustable aperture size (F1.76~close, 14 stops),
electronic shutter speed and gain

automatic adjustment

Manual：Electronic
shutter speed, aperture size and gain can be manually adjusted

Brightness：Brightness
level adjustable (32 files), adjust the gain and aperture to maintain the
brightness

Level (When the gain is 0dB, F1.76~close 17 steps; when the aperture is
F1.76, the gain range is from

0Db~28dB
15 steps)）

5.3. White balance

Auto
White Balance : Color temperature is
automatically adjusted to 3,000K ~ 7,500K

Auto-tracking
white balance: Color temperature is automatically adjusted to
1,500K~10,500K

Manual white balance : Color temperature can be manually adjusted to each
adjustable value (R gain and B gain, each 256 steps)

One-touch white balance mode: Fixed white balance mode, only readjustment at u
request

When applying to the green or blue screen background of a live scene,
you can focus on a white sheet of paper in front of the camera and then switch
to this mode to lock the white balance

When there is a sudden power
failure, the one-touch white balance mode data will be lost. In this case, it
needs to be reset.

5.4. Day and night switch

Daytime: The camera remains in color mode

Night :The camera remains in black and white mode

5.5. 3D de-noise

After the camera's 3D noise
reduction function turns on, the image noise will be significantly reduced, and
the details of the bright and dark parts of the image will be clearer and
closer to the effect that seen by the human eyes.

Noise reduction levels are divided into automatic and 1-5 levels.

5.6.Image
adjustment

5.6.1.Digital
effect

Image output can be set to horizontal, mirror,
rotation display.

5.6.2.Sharpness

As the sharpness value increases, the contour lines of the image become
clearer and more distinct. This sharpness value can be adjusted reasonably to
make the image display clearer.

5.6.3. Anti-flicker

Flicker refers to the intermittent flicker of
certain light sources, which may cause band shadows or partial discoloration on
the image. Depending on the frequency of the light source, turning on the
corresponding anti-flicker setting can effectively reduce the flicker of the
image.

5.6.4. Video format

Video output
parameter setting

1920x1080p@50,60;

1920x1080p@25,30 ;

1280x720p@50,60;

1280x720p@25,30

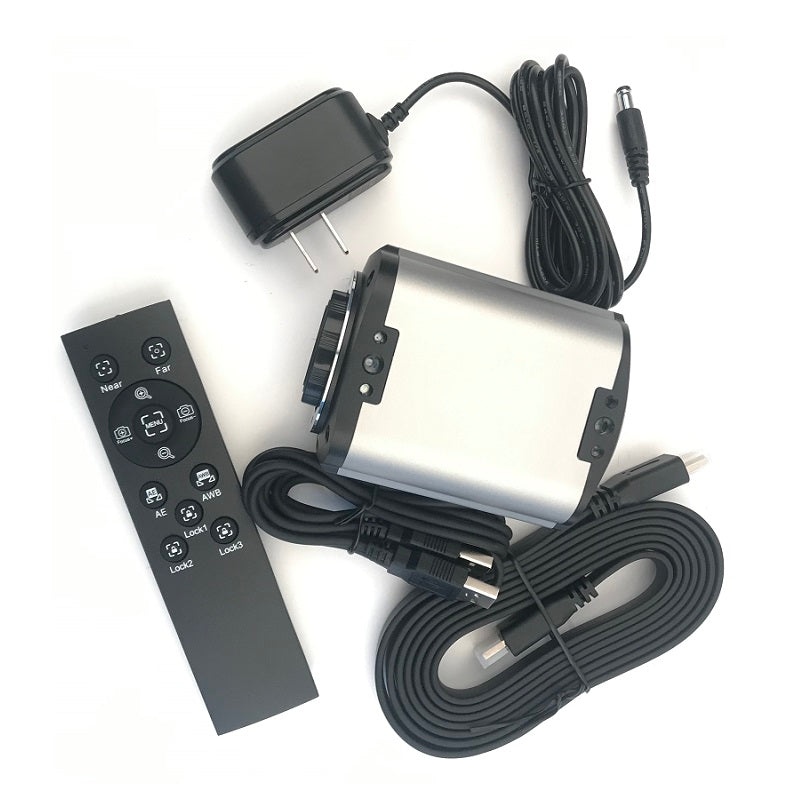

packing list

1 * AF HDMI Camera

1 * DC12V power supply

1* USB Cable

1*HDMI Cable

1*Remote control
