Product overview
High Quality, High Resolution, Clear Images
1/2.3 Inch big size Panasonic CMOS Image Sensor
Pictures 28.0 MP HDMI output 1080P 60fps
TF Card Video Recorder
Photo Model / Video Model

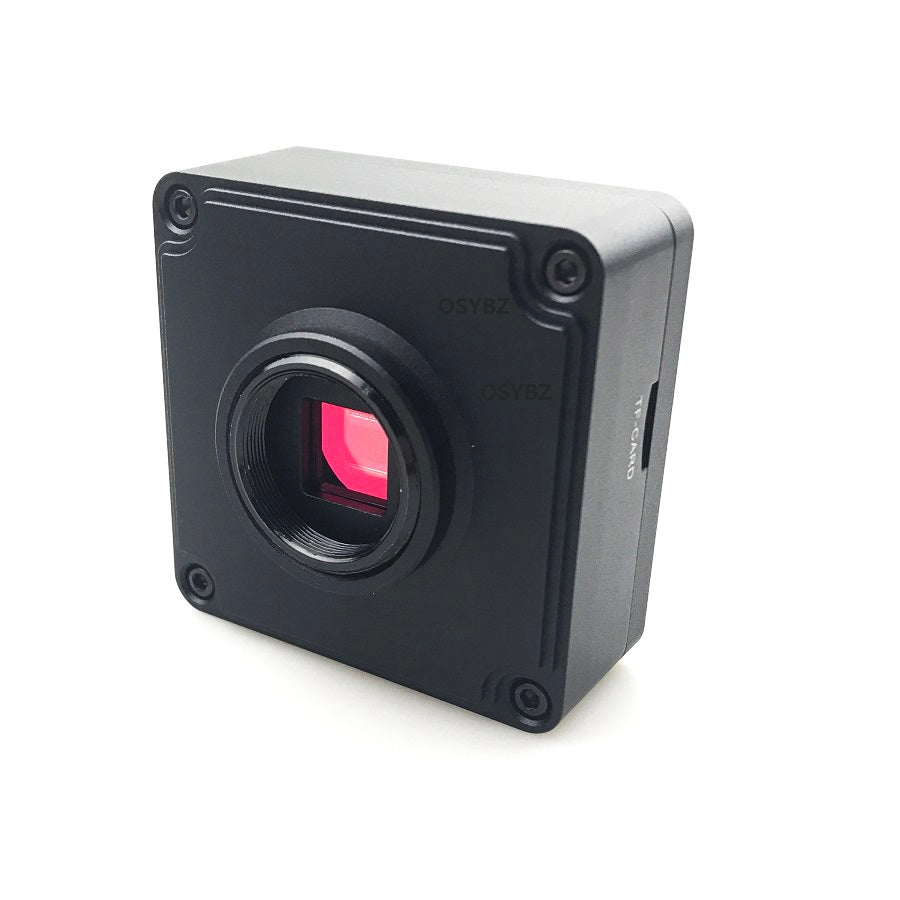

Industry CMOS Camera. It can Show the live image directly on any HDMI monitor , Projector or TV.

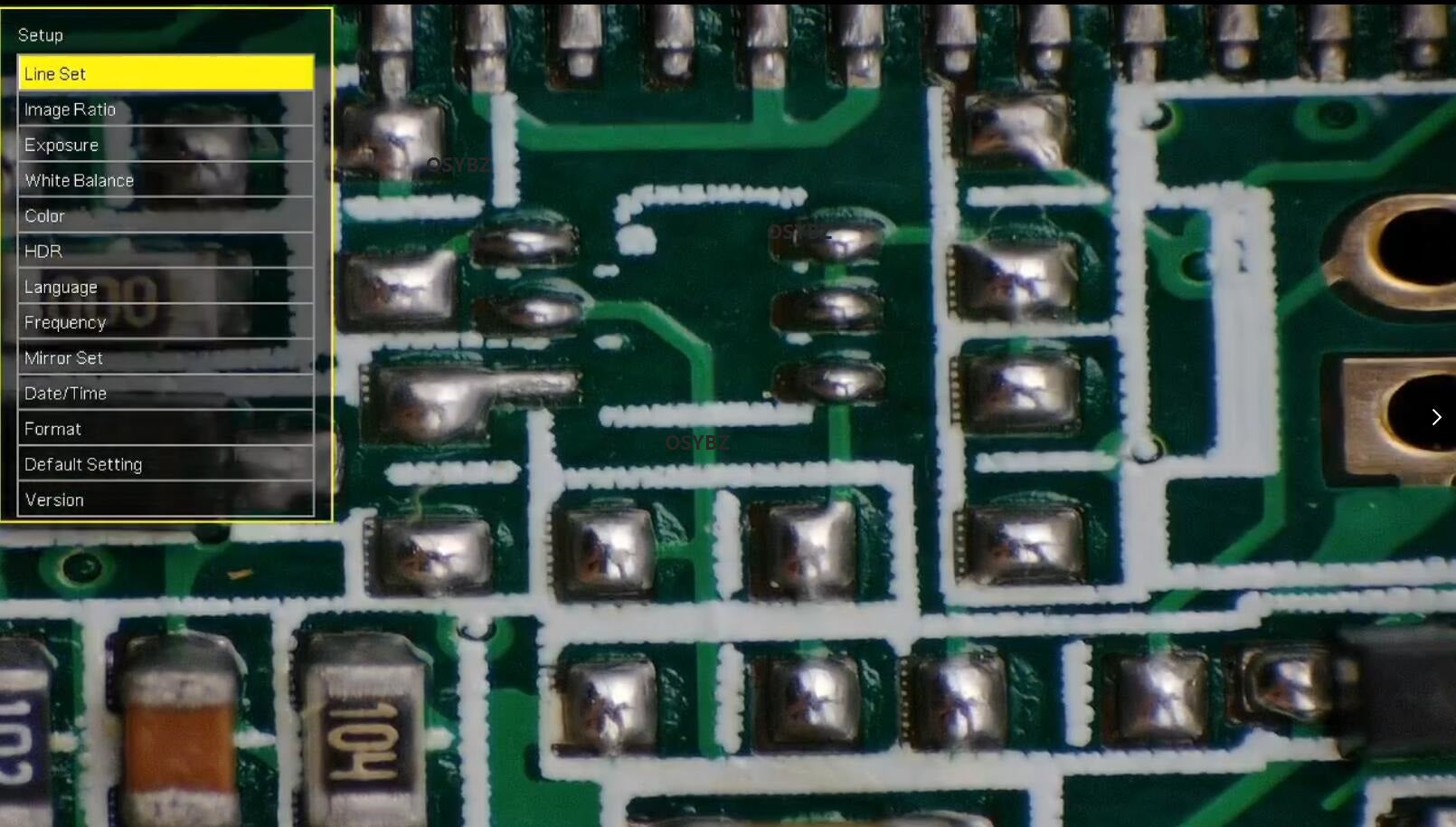

It builds in digital crosshairs and color control, add line in the pictures, freeze ,Mirror, Rotate, Negative

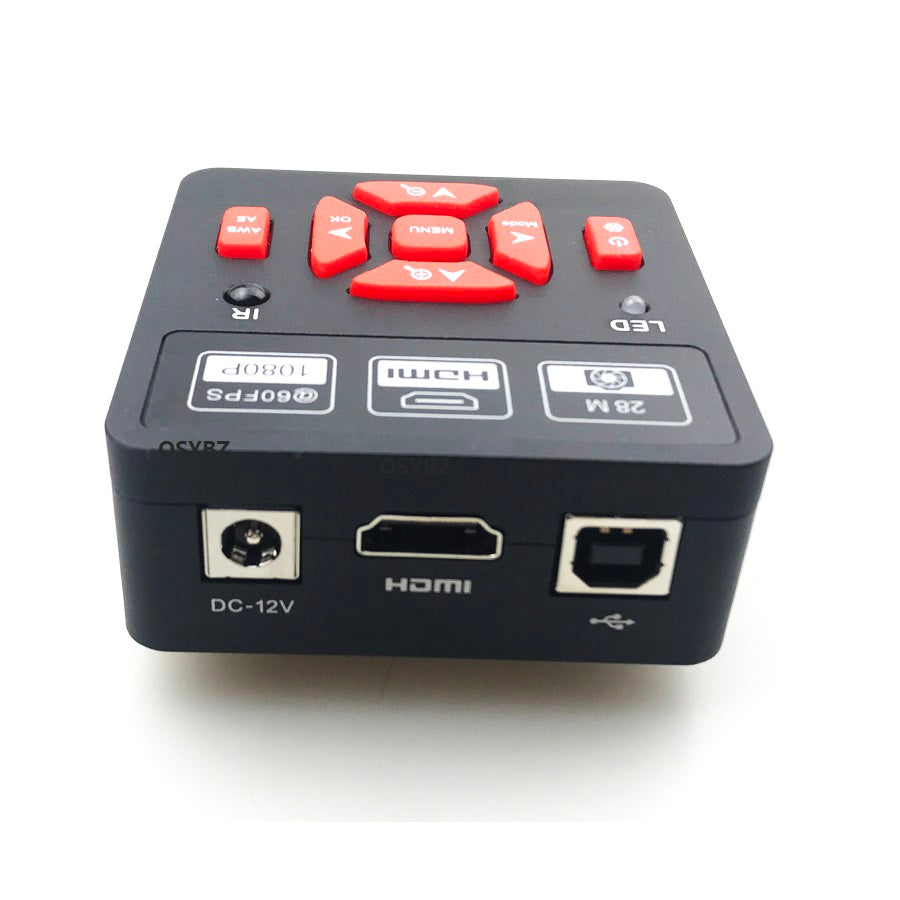

Supply USB2.0,HDMI HD video,Two output
Technical parameters
|
Specification
|
Model
|
OSYBZ-H150
|
|
Series
|
HDMI lndustrial Camera
|
|
Sensor size
|
1/2.3" Panasonic
|
|
Effective pixel
|
28MP
|
|
Frame frate
|
1920*1080@60FPS
|
|
Output
|

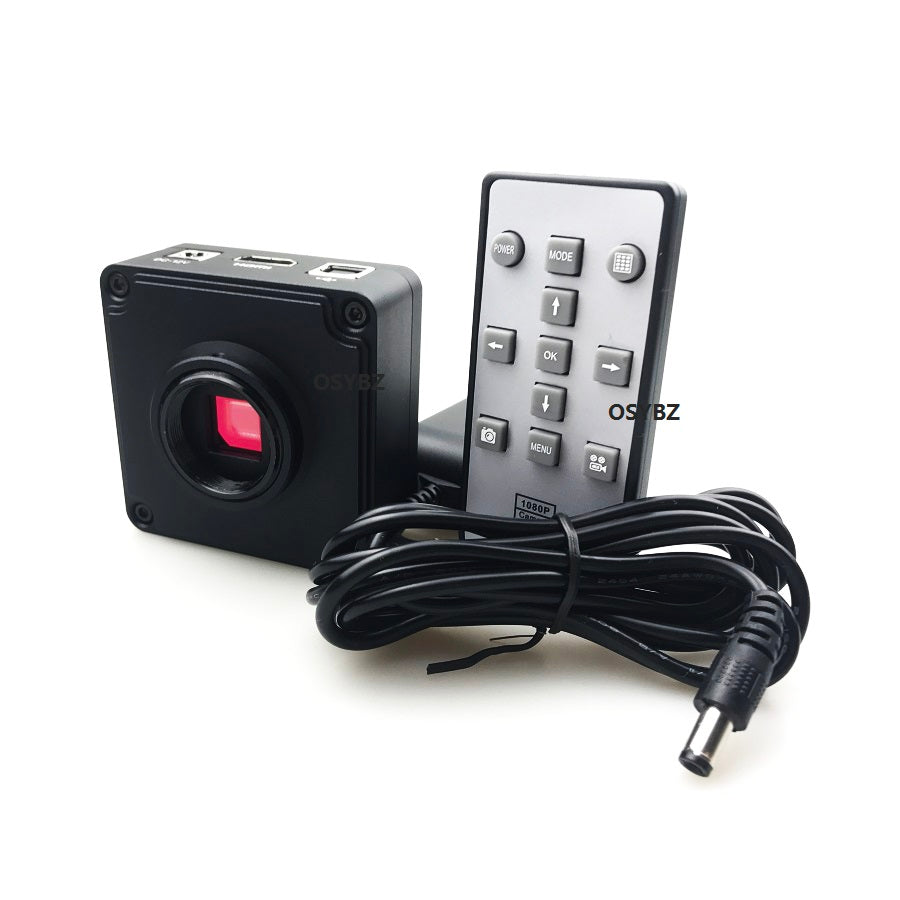

USB, HDMI, TF card, infrared remote control
|
|
Pixel size
|
1.43*1.43μm
|
|
Power
|
DC-12V/1A
|
|
Features
|
Basic function
|
Brightness, contrast, saturation, white balance,
black and white switching, date adjustment
|
|
Image adjustment
|
Exposure, Flicker restrain, Acutance,
Gamma, Cb/ Crgain adjustment
|
|
Camera function
|
Digital zoom, Horizontal/
vertical mirror, image freeze
|
|
Storage
|
Image capture,video, image preview, SD card formatting
|
|
Reticle
|
4 sets of reticle, can define the
color, line, displacement, and hidden
|
|
Crosshair
|
Can adjust color, line size, hide or display
|
|
|
Size
|
68.00*40.30*68.00mm
|
|
Weight
|
0.25kg
|
|

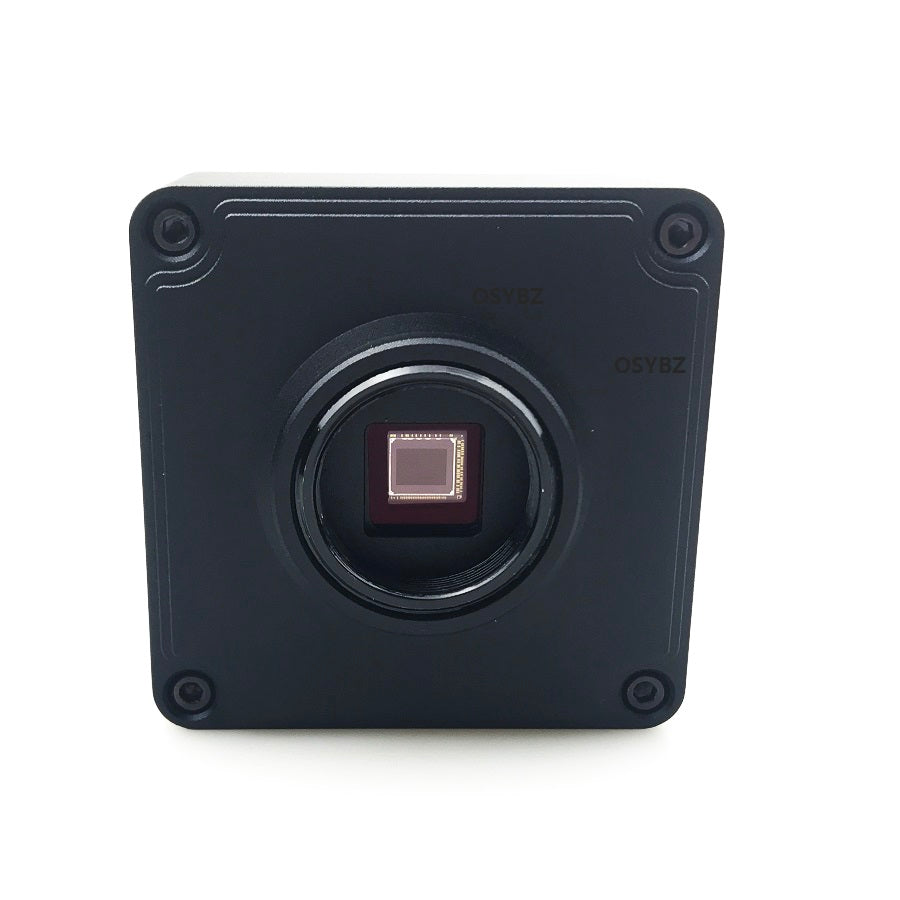

Lens interface
|
C/CS Interface
|
