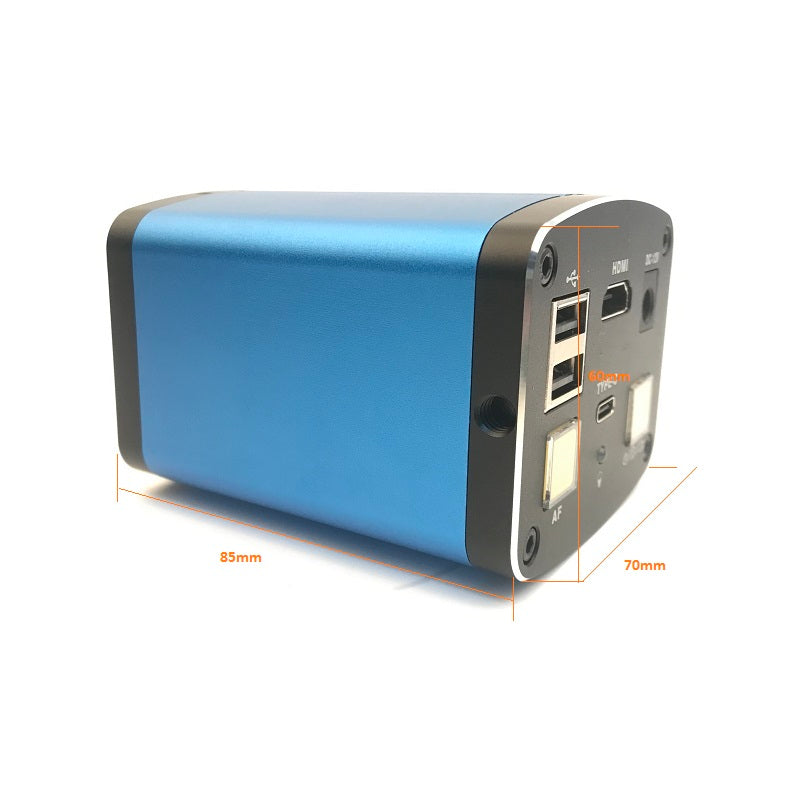

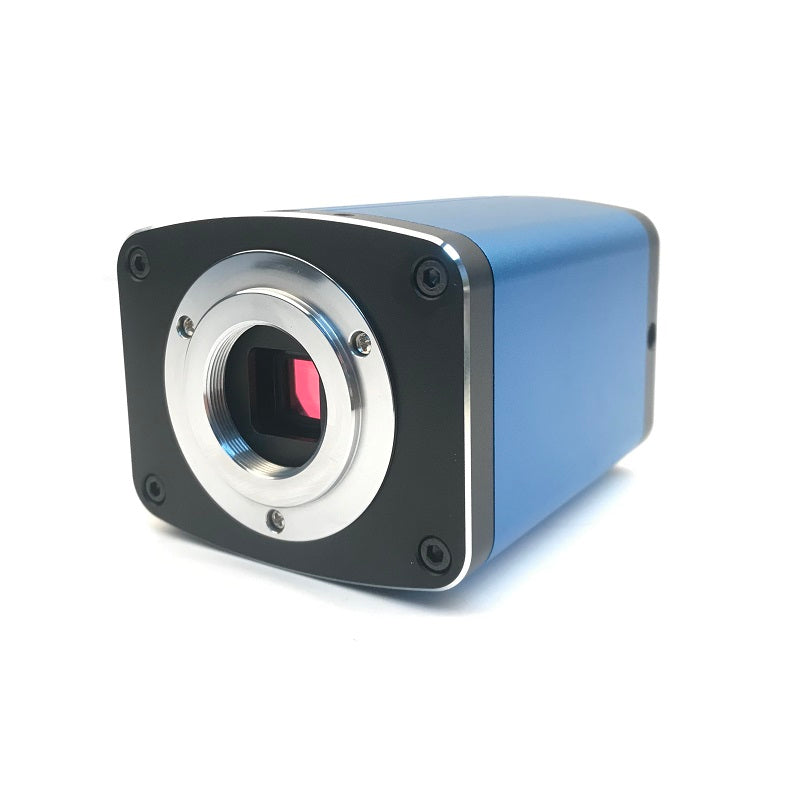

Digital Microscope AF Auto Focus HDMI 1080P 60FPS Industrial Camera 100X 180X

Featur
Adopt new generation high dynamic range CMOS image sensor;
Adopt 1/2.8-inch image sensor;
HDMI 1080P 60 frame image output;
Support photo, JPG format and Video Storage;
Support manual one-key exposure
Support manual one-key white balance, red, green and blue adjustable;
Provide 30 line drawing functions, the line color, thickness, and position are adjustable;
Picture is clearer without shaking;
se CNC precision milling technology to process aluminum alloy shell;

Specifications
Sensor: 1/2.8 inch CMOS sensor
Pixel size: 3.75µm ×3.75µm
HDMI output: 1920*1080 60 frames
Lens interface: C/CS interface
Exposure: One-click exposure
White balance: one-key white balance
Storage: Support U disk storage
Input voltage: DC 5V
Scribe: support 30 straight lines, color, thickness and position are adjustable
Mirror: support horizontal/up and down roll
1. Unscrew the lens cap and install the lens;

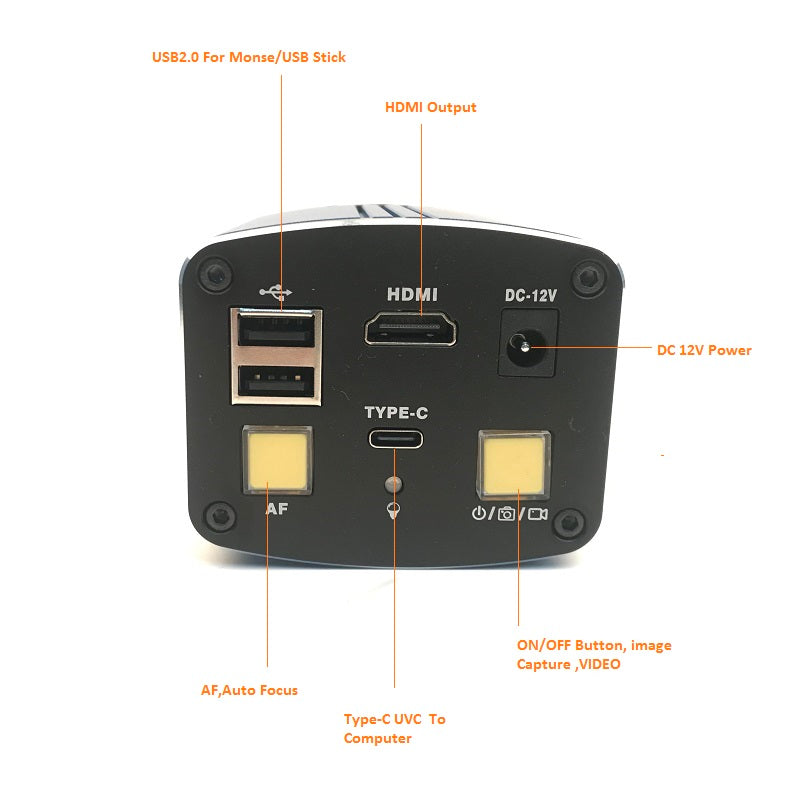

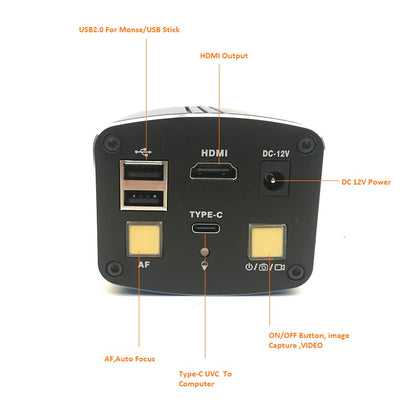

2. Plug in the HDMI/VGA cable and DC power supply, and the LED light is on at this time, indicating that the camera has been turned on;

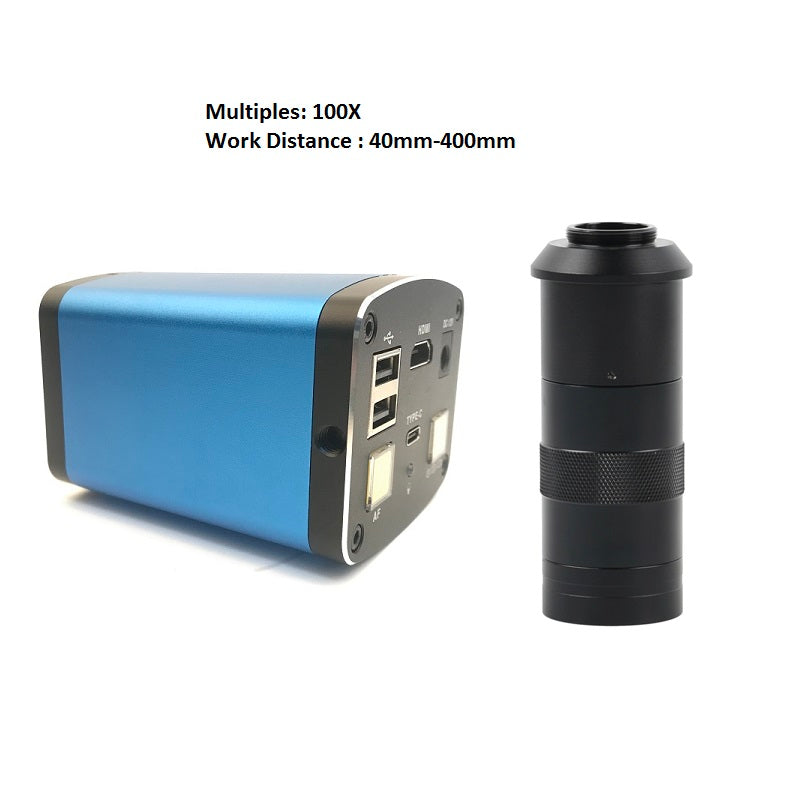

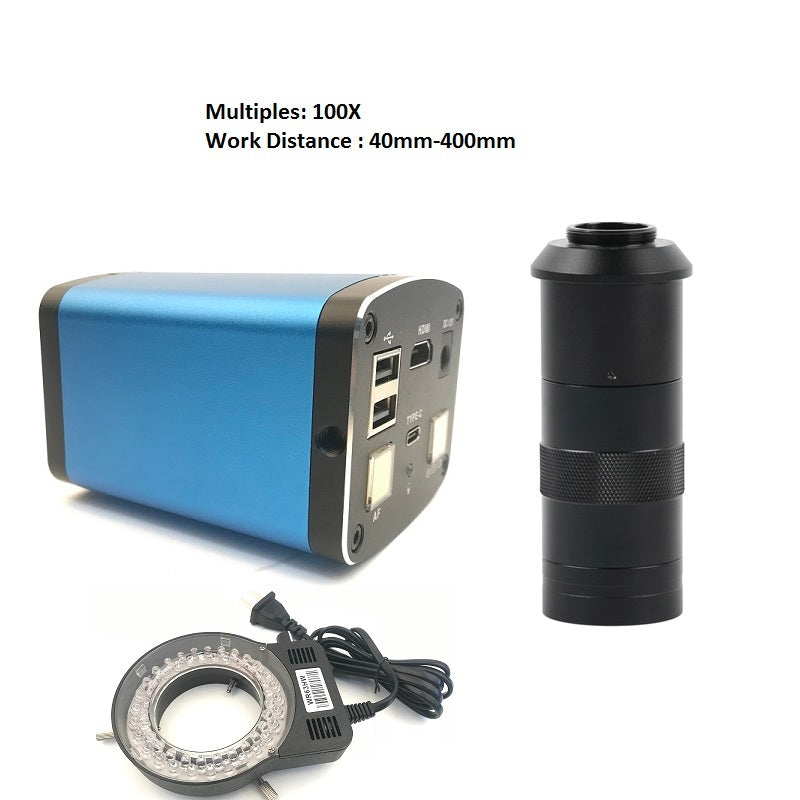

8X-100X Zoom C-mount Lens:
Work distance: 40mm-400mm
Zoom ratios: 1:17
Magnification Power by 0.12 - 2X (about 8X - 100X on the Monitor)
view field of Max multiple : 5.4mm*3mm
view field of Min multiple : 54mm*30mm
Size: 115mm(L) * 40mm(DIA)
Weight: 210g

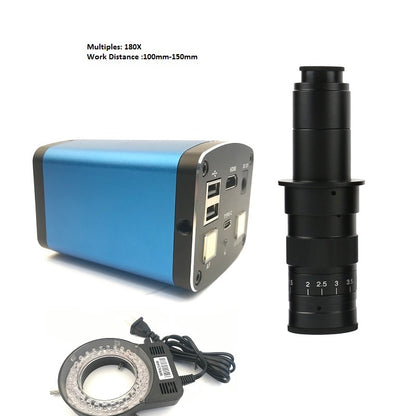

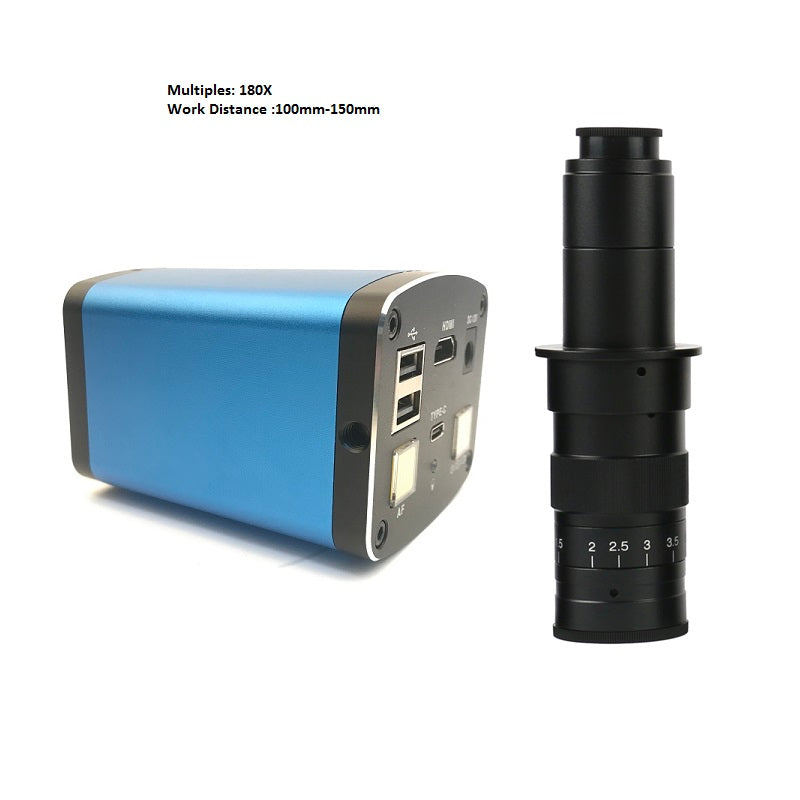

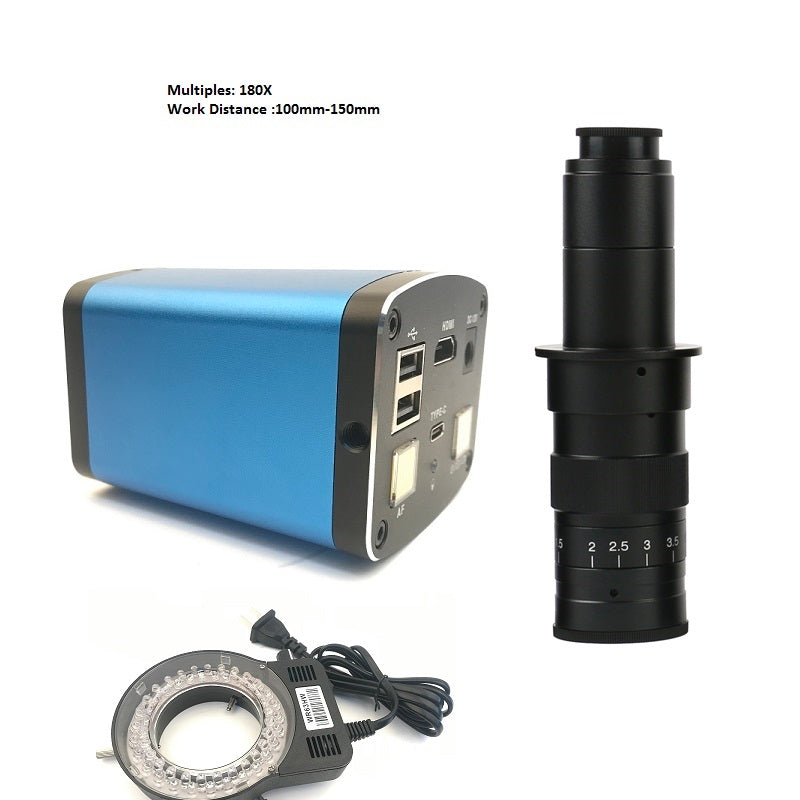

10X-180X C-MOUNT Lens:
Working distance: 100-150mm
Zoom ratios: 1:6.5
Magnification Power by 0.7 - 4.5X(about 15 - 180X on the display)
view field of Max multiple : 2.8mm*1.5mm
view field of Min multiple : 25mm*14mm
Eyepiece lense : 0.5X
Size: 168mm(L) * 50mm(DIA)
Weight: 550g

56 LED Adjustable Compact Microscope Ring Light
Provides intense and focused shadow-free illumination
56 bright white LED bulbs
Lighting direction changeable
Variable intensity control
Intense and focused shadow-free illumination
100,000 hours of life
Power input: 100-240V, 50-60HZ, auto switching
Inside diameter of the ring light: 1.0" (27mm)
Overall outside diameter: 1.77" (45mm)
Working Distance: 27mm-120mm

Package incluede:
1 x Video Microscope Camera
1 x Power supply
Optional Accessories Incluede:
1 x C-MOUNT Lens
1 x 56 LED Adjustable Microscope Ring Light
