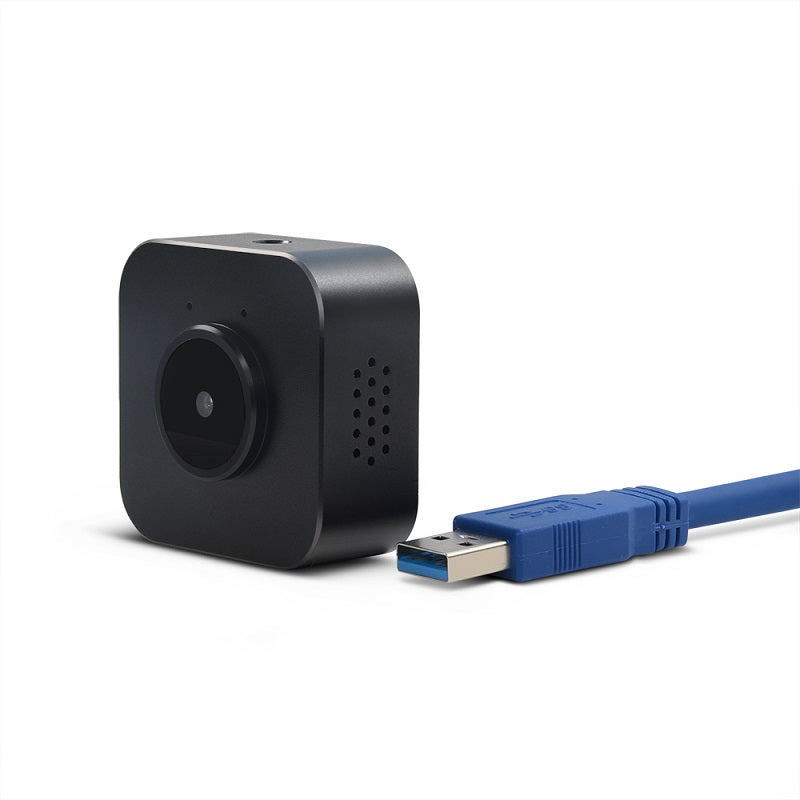

Industry USB HD 8MP Camera No Distortion Fast Auto focus Lens Sony Sensor IMX179 USB Camera
| Product model | OSYBZ-U10 | |
| Sensor | SONY IMX179 | |
| Lens Size | 1/3.2inch | |
| 1.4um | ||
| Image area | 6.18mm x 5.85mm | |
| Maximum effective pixel | 3264(H) X 2448(V) 8.0MP | |
| Output image format | MJPEG | |
| Supported resolution and frame rate | 3264X2448 @ 15fps / 2592X1944@ 15fps | |
| 1920x1080 @ 30fps / 1600X1200@ 30fps | ||
| 1280X720 @ 30fps / 960X540@ 30fps | ||
| 800X600 @ 30fps / 640X480@ 30fps | ||
| Signal to noise ratio | 34dB | |
| Dynamic range | 72.5dB | |
| Sensitivity | 0.65V/lux-sec@550nm | |
| Minimum illumination | 0.5lux | |
| Shutter type | Electronic rolling shutter / Frame exposure | |
| interface type | USB2.0 High Speed | |
| Support drive - free protocol | USB Video Class（UVC） | |
| Support OTG protocol | USB2.0 OTG | |
| Automatic exposure control AEC | Support | |
| Automatic white balance AEB | Support | |
| Automatic gain control AGC | Support | |
| Button pictures | Support | |
| Adjustable parameter | Brightness, contrast, color saturation, and tonal clarity | |
| Gamma gain white balance contrast exposure | ||
| lens parameters | No Distortion Lens size 1/3.2 | |
| fast auto focus 75degree | ||
| USB | USB BUS POWER 4P-2.0mm | |
| Working voltage | DC5V 200MA | |
| Working temperature | -10～70℃ | |

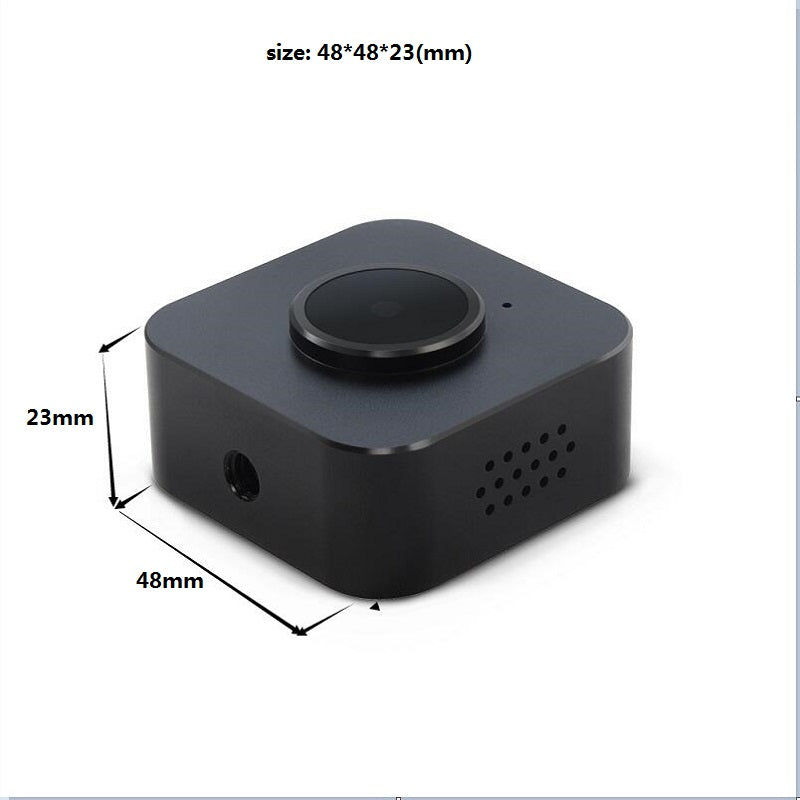

| module module | 38X38mm（compatible 32X32mm） | |
| Supported system | WinXP/Vista/Win7/Win8 | |
| Linux with UVC（above linux-2.6.26） | ||
| MAC-OS X 10.4.8 or later | ||
| Wince with UVC | ||
| Android 4.0 or above with UVC | ||
| Package includes: 1X USB 8MP Camera 1X USB Cable |
||
