CCTV Panasonic Sensor Full HD 2.0MP 1080P SDI /SDI EX /AHD/TVI/CVI /CVBS 6 IN 1 Industrial HD SDI WDR Security Mini Box Camera

  • $120.00
  • Save $25









Product Features:

1. Intelligent OSD (menu) operating system. strong DSP memory. power failure without losing data. .

2. High resolution and high speed: the Panasonic SENSOR, with good color reproduction, provide a clearer Visual effects, 1/3. can display HD images FULL SCREEN 1080P,

adapt to the color temperature of light source within a wider temperature range ... Unique digital technology,

for low-light environments, improving the sensitivity of target shooting, reduce uneven and defects of the optical signal processing.

3. HLI (strong light) is a super Eclipse: for light areas and compensation to achieve proper exposure in a particular area selected.

4. WDR (intelligent wide dynamic range compensation) (high/medium/low): If there is a contrast in the same picture appears will result in excessive exposure to heavy dark, smart WDR function can make the picture improved.

5. Patented menu options: special patented design, with icons show features and intuitive, so that users can set content at a glance. 11 available languages.

6. BLC (Super backlight compensation): in the back of the objects when a bright light source, can be caused by backlighting of the subject dark parts for backlight compensation, make the subject more clearly.

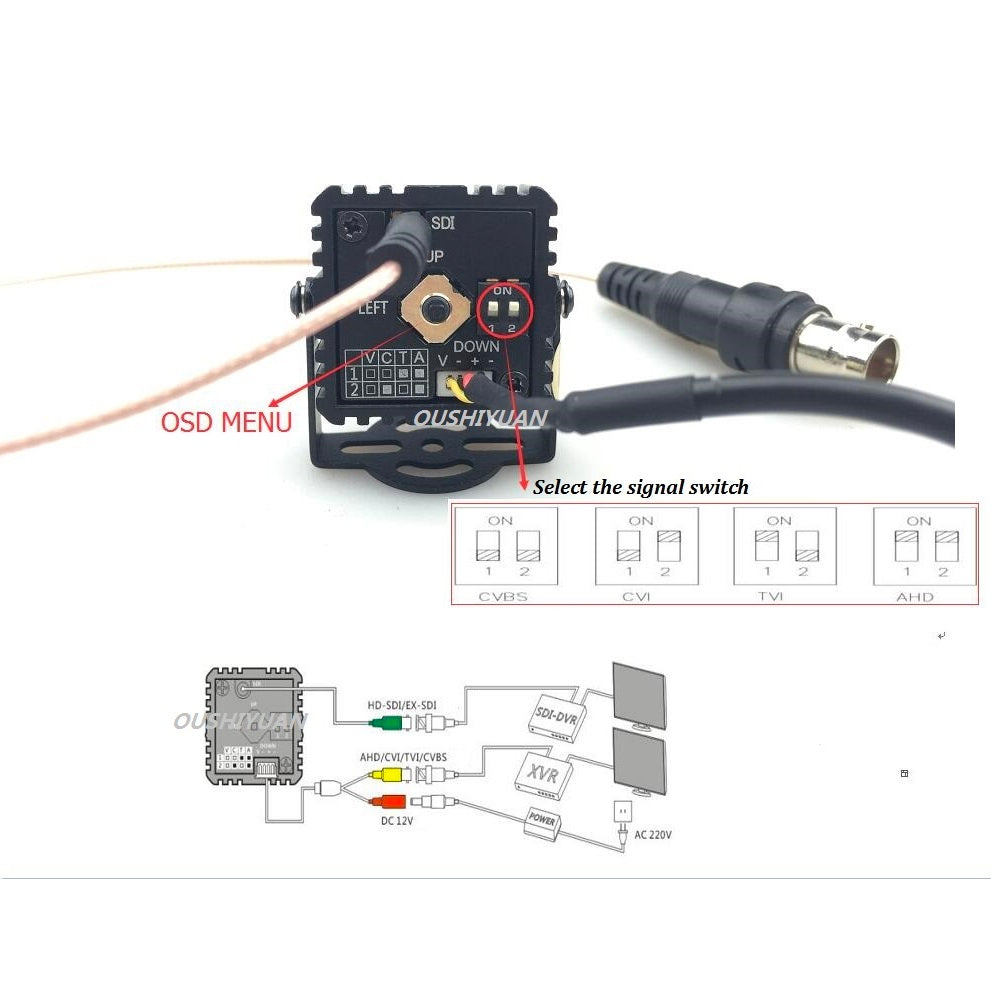

7. Support the dip switch AHD/TVI/CVI/CVBS output signal, different burning software program can output a HD/EX-SDI signal (6-in-1 signal output. to select combinations of the output signal)

8. 3D digital noise reduction, Super speed (frames accumulation).

9.Supports coaxial control signal features

10.Wide voltage: DC power supply voltage range between 10V~16V working properly.

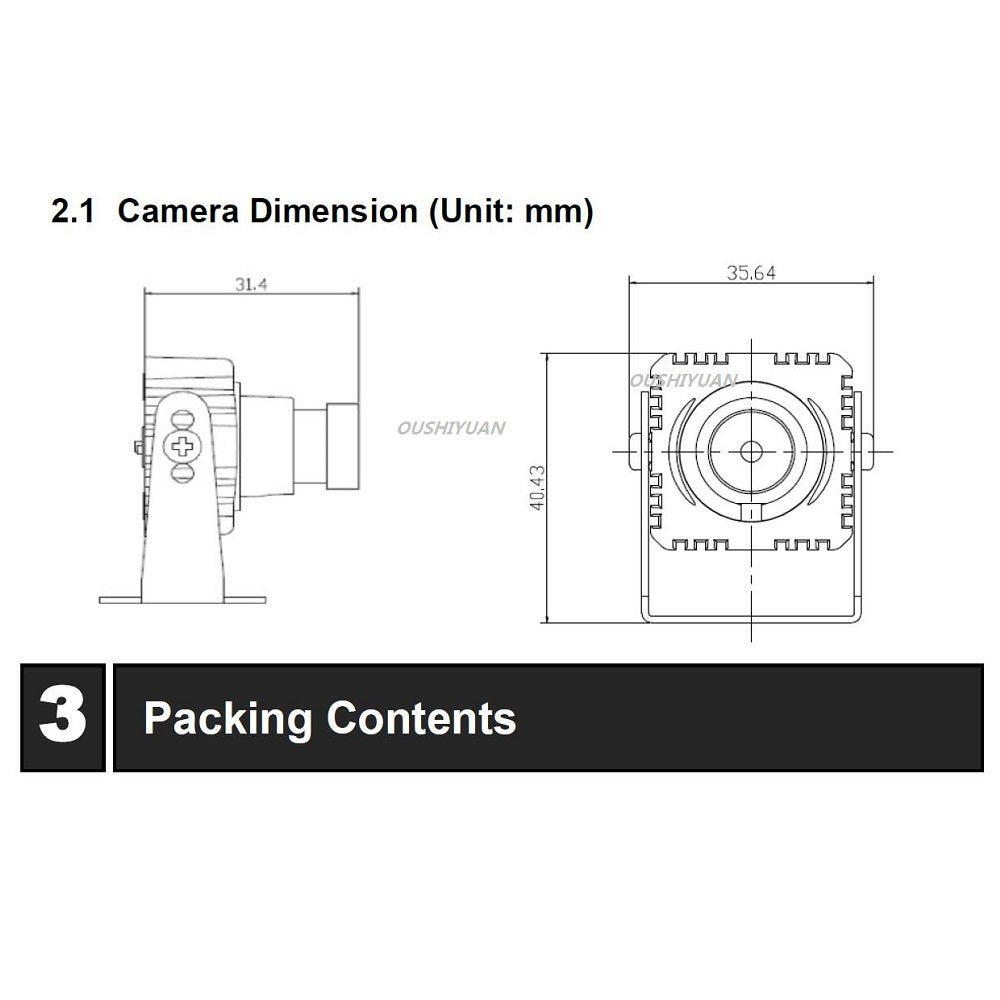

Overall dimensions: (units mm)


Panasonic Senor Starlight 1080P Full HD Mini Pinhole HD-SDI Camera
Support AHD/TVI/CVI/CVBS-1Vp-p//EX-SDI Video Output
Product overview
•2.0 Mega Pixel,1/3”Panasonic CMOS(MN34227) Sensor
•1080p@30/25fps (The OSD menu choose)
•Support WDR,3D-DNR,DEFOG
•OSD menu,Motion detection,Privacy Zone,HLC,BLC

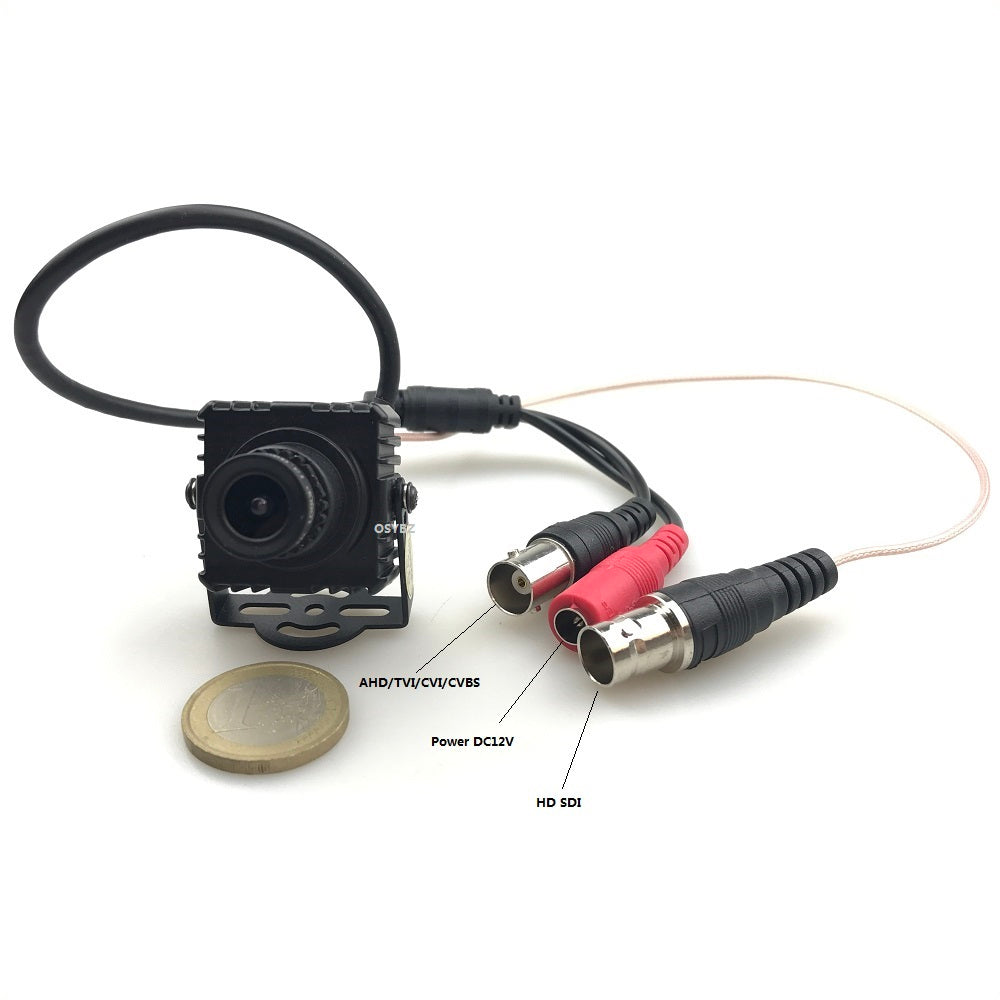

•Dual Output-Megapixel HD-SDI(BNC) CVBS:1.0 Vp-p 750hm
* Buyer Attention:
 SDI Camera can only compatible with SDI DVR
Technical parameters


Model No.

OSY-SDI888

Image Sensor

2.0 Mega Pixel, Panasonic CMOS(MN34227) Sensor  DSP EN771T

Effective pixels

1920(H) x 1080(V)

Scanning system

Progressive Scan

Minimum illumination

0.001 Lux(AGC OFF)oLux(IR ON)

Lens

3.6mm Lens

IR view distance

N/A

WDR (Long and Short exposure)

OFF/ON(Level Adjustable)

O.S.D

Built-in

3D-DNR (3D Digital Noise Reduction)

OFF/ON(LOW/MIDDLE/HIGH)

Sens-Up

OFF/ON

Motion Detection

OFF/ON

Privacy Zone

OFF/ON

HLC

OFF/ON

B.L.C. control

OFF/ON

Defog

OFF/ON

White balance

AWB/ATW/PUSH/MANUAL

A.G.C

0-10 steps

Electronic shutter Speed

AUTO/MANUAL/FLK

Video output

HD-SDI/EX-SDI/TVI/CVI/AHD/CVBS(6in1)

Operation temperature

-10℃ - +60℃

Operation Humidity

Within 95% RH

Power supply

DC12V(+/-15%)

Power Consumption

500mA

 Item Included:

1 x CCTV 1/3  2.0MP 3.6mm 1080P MINI SDI  6in1 Camera
