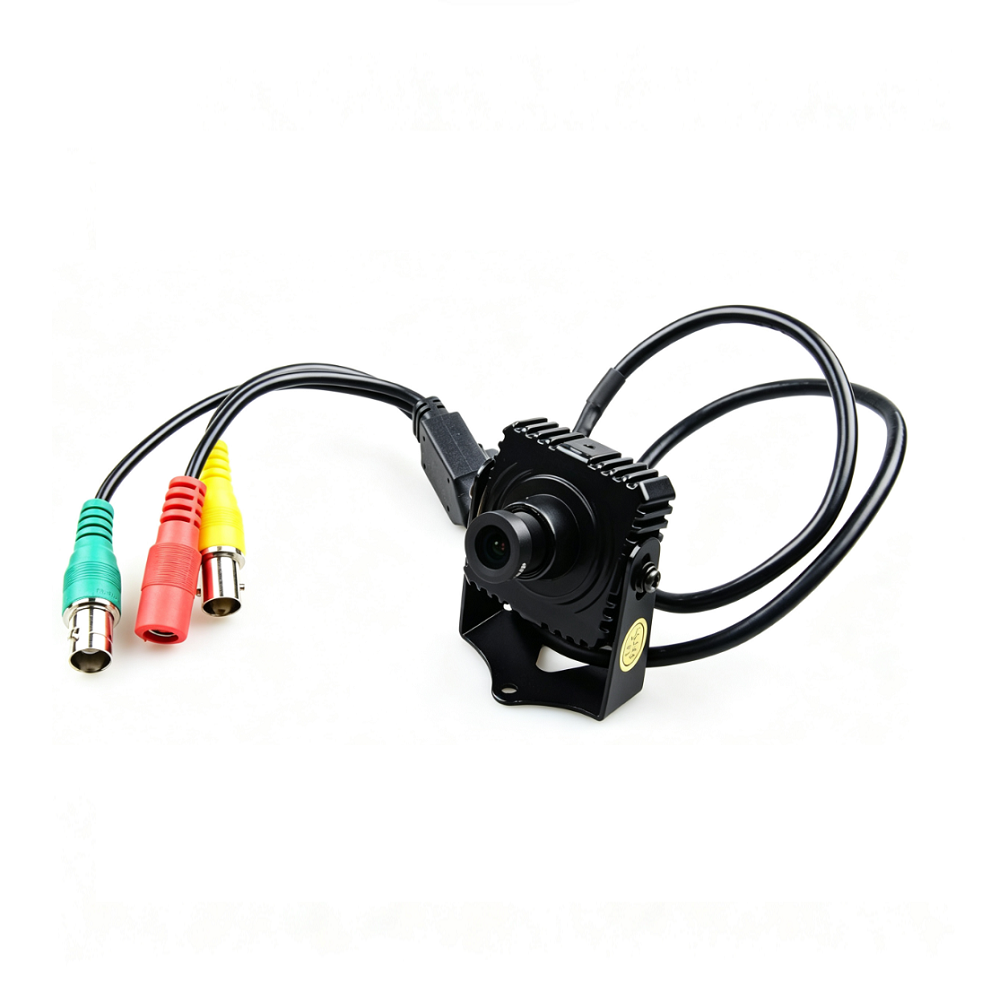

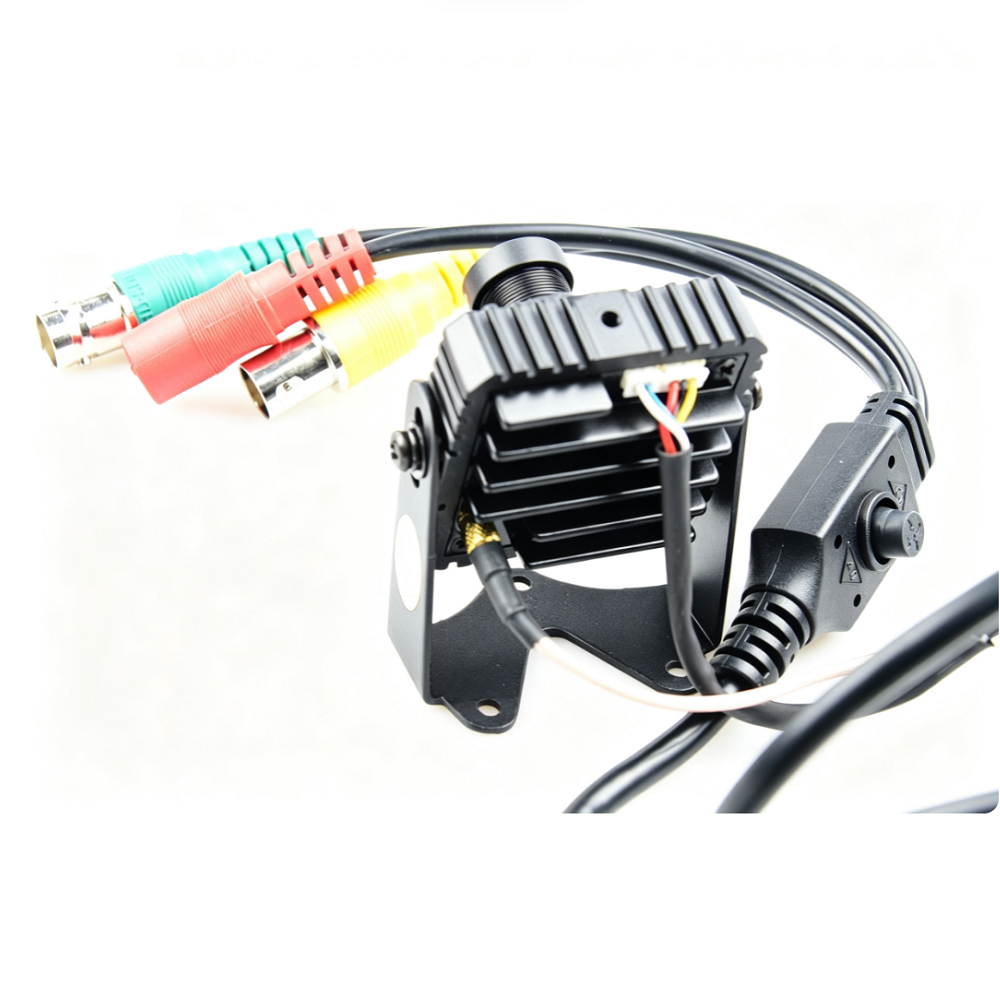

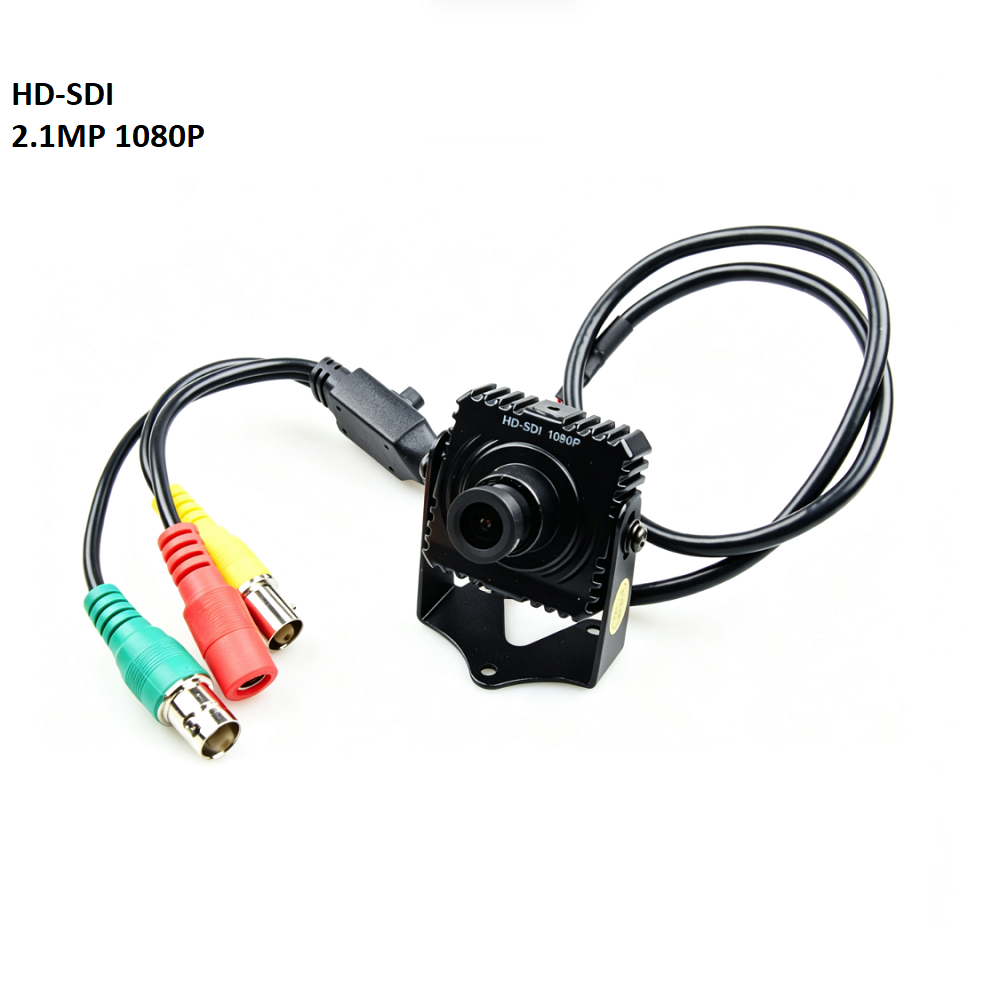

HD-SDI 2.1MP 1080P Mini Box Camera 3.6mm Lens Security WDR OSD
HD-SDI 2.1MP 1080P Mini Box Camera (OSY-SDI332) is a compact, high-performance video camera engineered for professional live broadcasting, industrial inspection, and specialized security surveillance. Featuring a 2.1 Megapixel Sony CMOS sensor and dual-output (HD-SDI & CVBS) capability, it delivers uncompressed, broadcast-grade Full HD video with ultra-low latency and superior color fidelity.
Key Features:
- Full HD 1080P Resolution: Delivers crisp 1920×1080 video at 30fps/25fps powered by a high-sensitivity 2.1MP Sony CMOS image sensor.
- Dual Video Outputs: Supports professional HD-SDI (SMPTE 292M compliant, 75Ω BNC) for long-distance, interference-free transmission alongside analog CVBS output.
- Wide Dynamic Range (WDR) & 3D-DNR: Hardware WDR balances high-contrast lighting conditions, while 3D Digital Noise Reduction ensures clean imagery in low light (down to 0.001 Lux).
- Compact Metal Housing: Ultra-mini form factor fits seamlessly into tight spaces, specialized enclosures, live streaming rigs, and machine vision setups.
- Versatile On-Screen Display (OSD): Built-in OSD menu with motion detection, privacy masking, defog, BLC, and HLC image adjustments.
Specifications:
| Model | OSY-SDI332 (3.6mm) |
| Image Sensor | 2.1 Mega Pixel Sony CMOS Sensor |
| Effective Pixels | 1920(H) × 1080(V) @ 30/25fps |
| Scanning System | Progressive Scan |
| Lens | 3.6mm Fixed Lens |
| Min. Illumination | 0.001 Lux |
| Video Output | HD-SDI (SMPTE 292M, 75Ω) / CVBS 1.0 Vp-p Composite (75Ω) |
| WDR | On / Off (Adjustable level) |
| Noise Reduction | 3D-DNR (Low / Middle / High / Off) |
| Image Functions | Defog, BLC, HLC, Sens-Up, Motion Detection, Privacy Zone |
| White Balance | AWB / ATW / Push / Manual |
| Power Supply | DC 12V (±15%), 100mA |
| Operating Conditions | -10°C to +50°C, Humidity < 95% RH |
Package Includes:
- 1 × HD-SDI 1080P Mini Box Camera with 3.6mm Lens
Note: 12V DC power adapter and BNC/SDI cables are sold separately.
Applications:
Ideal for live broadcasting, multi-camera studio production, machine vision, medical imaging, scientific research, UAV/drone surveillance, and specialized security monitoring.
Purchase with Confidence:
- Free Worldwide Shipping to 52 supported countries (1–3 business days handling, 7–15 business days delivery).
- 1-Year Manufacturer Warranty with dedicated technical support.
- 30-Day Return Policy for peace of mind.
