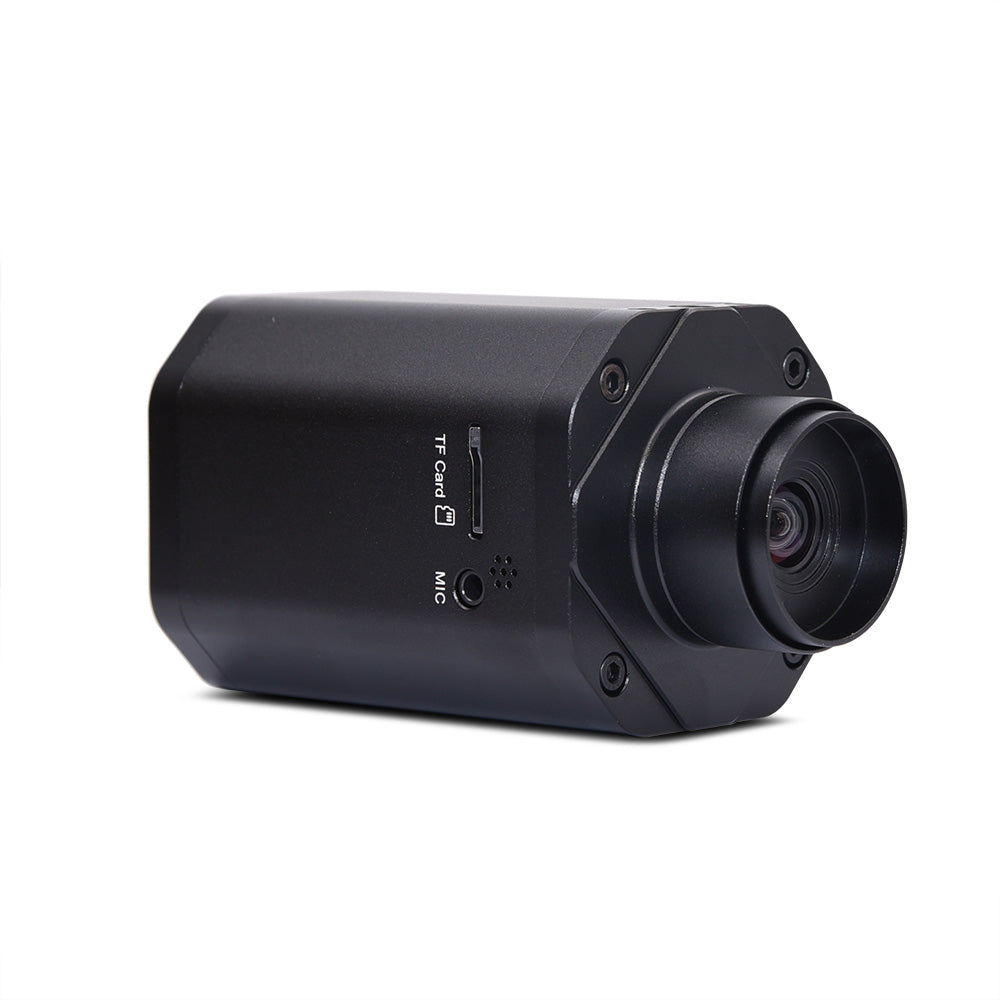

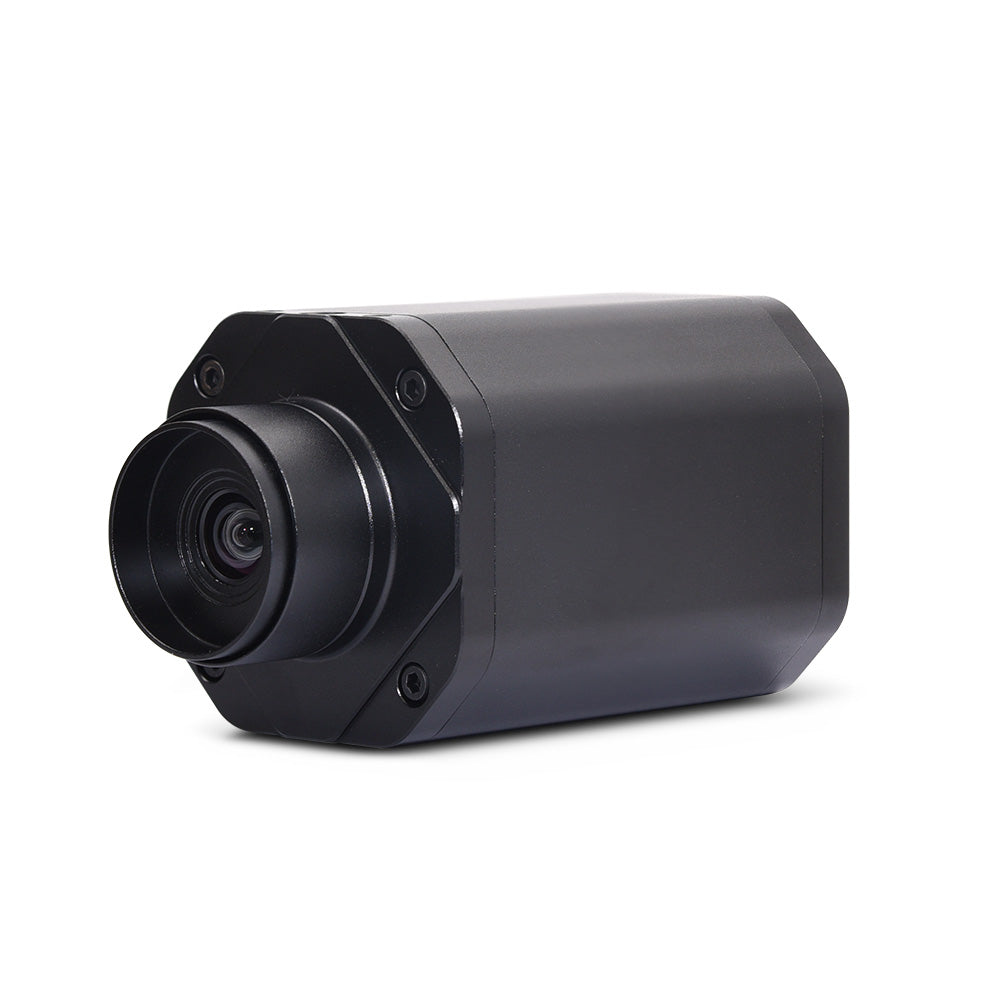

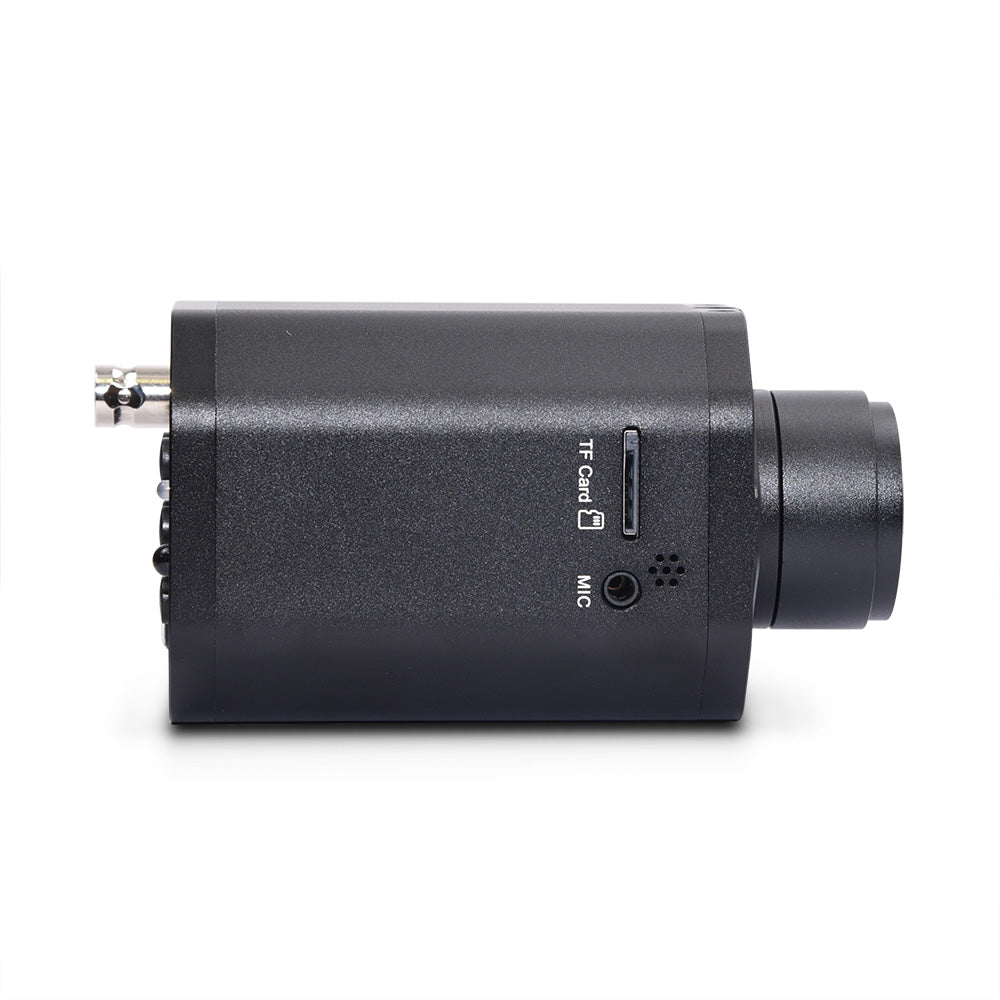

4K Digital HDMI SDI 1080P 60fps USB Webcam Live Broadcast Camera
HDMI SDI 1080P 50/60i 50P/60P Video Output built-in microphone， USB Webcam Live Public Broadcasting Camera 3.2mm Manual fix wide angle lens low distortion used for Stage live broadcast, teaching charity live broadcast, church.
HD Video Quality - Can record 4K/30fps video, Build-in with 1/2.3" 12MP raw image Sony IMX577 Exmor R CMOS image sensor.
The camera has a built-in microphone. In order to obtain better audio, the camera can also connect to an external independent microphone, and can connect a wireless microphone to capture audio from a long distance. HDMI and SDI output without audio.
The 4K Digital Camera adopts an interchangeable lens design and using a CS/C mount lens . A large number of industrial lens groups enable the 4K Digital Camera to be widely used in industrial scenarios.
Support 3840*2160P/30/25/24fps (HDMI only) ,1080P60/50/30/25/24fps, 1080i60/50, 720P60/50fps output，1080P30 USB output. Connect to a HDMI or SDI monitor capture video show on screen for teaching, or Connect to a HDMI or SDI video capture card for small activity Live Streaming.
Solid aluminum shell material ,1/4 Inch Screw Thread placement easier for multi-angels placement needs .
Playback-Support photos and videos playback thru HDMI or SDI output to Monitor with Audio.
Time Lapse Video recording, Support settings 0.25s, 0.5s, 1s, 2s, 5s, 10s, 30s, 60s, 2minutes, 5minutes, 30minutes, 1hour.
Burst for photo Support settings interval time 0.25s, 0.5s, 1s, 2s, 5s, 10s, 30s, 60s, 2minutes, 5minutes, 30minutes, 1hour.

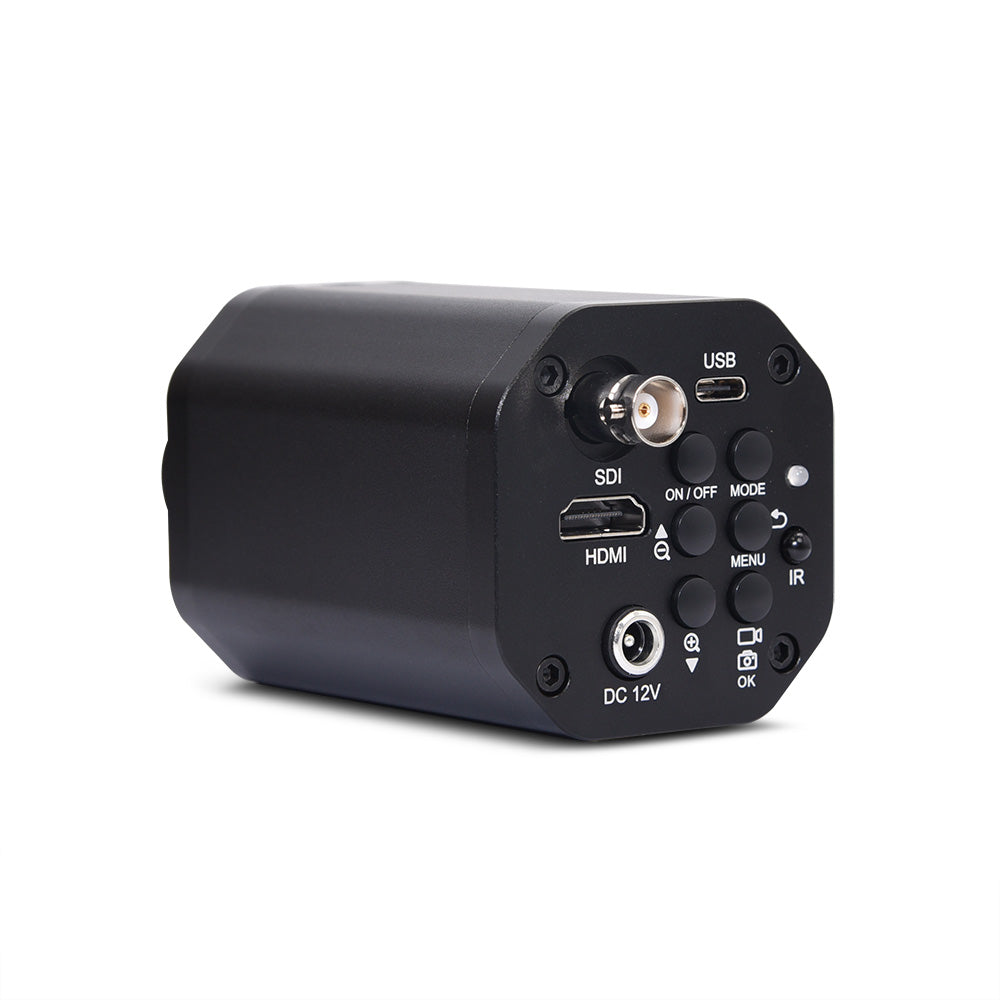

HDMI, SDI, USB double output.
Key Features
- Sony IMX577 12MP CMOS sensor for sharp 4K imaging

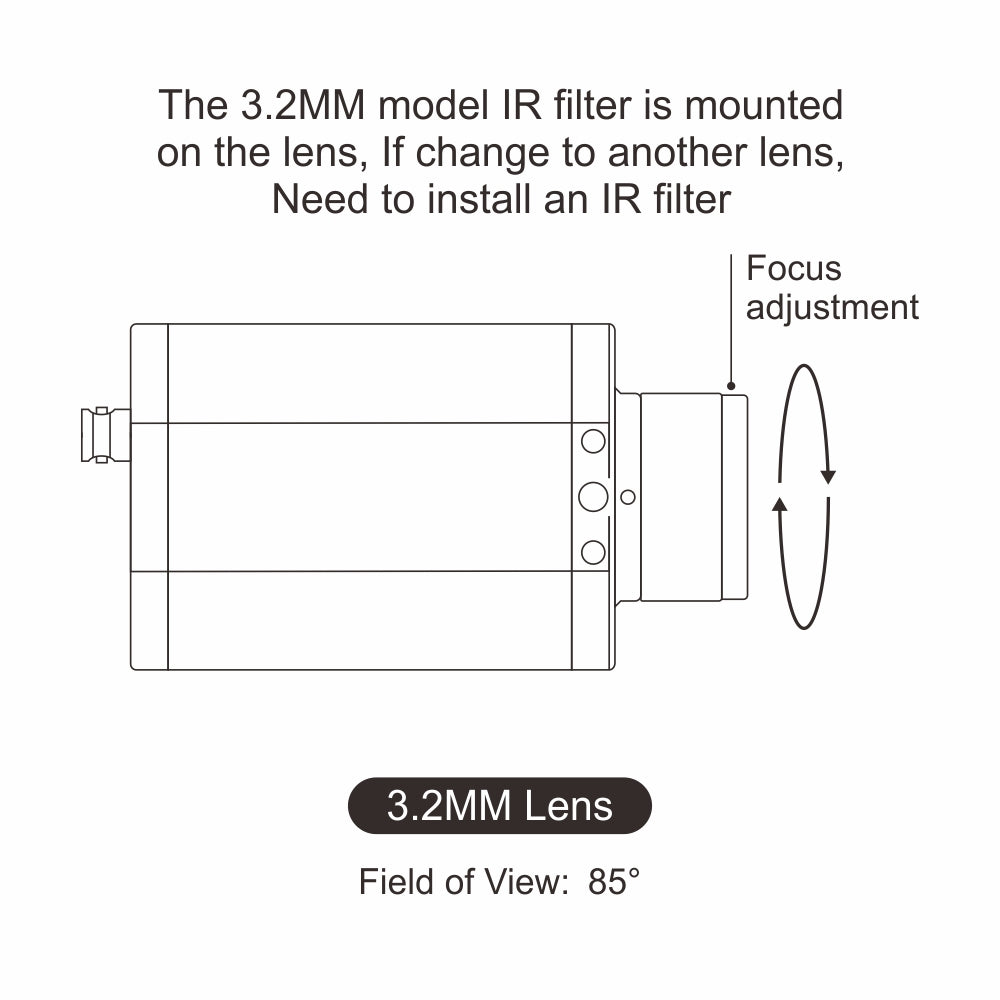

- 3.2mm low distortion wide angle lens for clear viewing
- 4K@30fps HDMI + 1080P@60fps 3G-SDI + USB 1080P triple output
- Time-lapse & burst shooting with adjustable interval
- Built-in microphone & external microphone support
- Support remote control, auto power on, loop recording
- Aluminum metal body, wide temperature range
- C/CS mount for interchangeable industrial lenses
- Small MOQ OEM service available
- Perfect for live, teaching, church, stage and industrial use
|
Camera Specification |
|
|
Model |
OSYBZ-4K-SDI-2 |
|
Sensor |
Sony IMX577 Exmor R CMOS 1/2.3” |
|
Resolution |
12MP |
|
Pixel Size |
1.55µm × 1.55µm |
|
Record video |
3840*2160@30FPS / 2560*1440@30FPS / 1920*1080@60FPS |
|
Video Format |
MP4 |
|
HDMI output |
2160P/30/25/24fps, 1080P60/50/30/25/24fps, 1080i60/50fps, 720P60/50fps |
|
SDI output |
1080P60/50/30/25/24fps, 1080i60/50fps, 720P60/50fps |
|
|
|
|
External microphone |
Support |
|
USB output |
1920*1080@30FPS / 1280X720@30fps / 640X480@30fps |
|
USB standard |
UVC / UAC |
|
Support system |
Windows / OS X / Linux |
|
Audio |
Record video / Video Playback / USB Mode with Audio / |
|
Time Lapse |
0.25s, 0.5s, 1s, 2s, 5s, 10s, 30s, 60s, 2minutes, 5minutes, 30minutes, 1hour |
|
Burst |
0.25s, 0.5s, 1s, 2s, 5s, 10s, 30s, 60s, 2minutes, 5minutes, 30minutes, 1hour |
|
Digital Zoom |
Support ( 1080P or 720P output，4K output not supported) |
|
Remote control |
Support ( HDMI or SDI Mode ), USB Mode for EV and Digital Zoom function only |
|
Remote Control |
About 5 Meters ( The remote control need aim the IR light ) |
|
Power On |
Auto Power On when plug ac adapter, |
|
Power Off |
Long press camera “ON / OFF” button power off， Remote control Power off |
|
Lens Mount |
C/CS |
|
Exposure |
AUTO / Manual |
|
ISO |
Auto / Manual (100~1600) |
|
Electronic shutter |
Auto / Manual (1/10~1/2000S) |
|
EV |
Support 12 Level manual Settings |
|
White Balance |
AUTO / Manual |
|
Storage |
Support 256GB(Max) TF card, Fat32 or Exfat only |
|
Power Mode（HDMI / SDI） |
DC 12V 1A |
|
Power Mode（usb） |
USB power |
|
Loop Recording |
3 / 5 / 10 mins each document Loop recording and |
|
Screen Orientation Change |
Support screen rotation 180 degrees and Mirroring |
|
Housing |
Metal |
|
Operating temperature |
-10-75℃ |
|
Camera Size |
100*60*60MM |
|
Product Weight |
230g |
|
Package size |
194*104*90mm |
packing list
