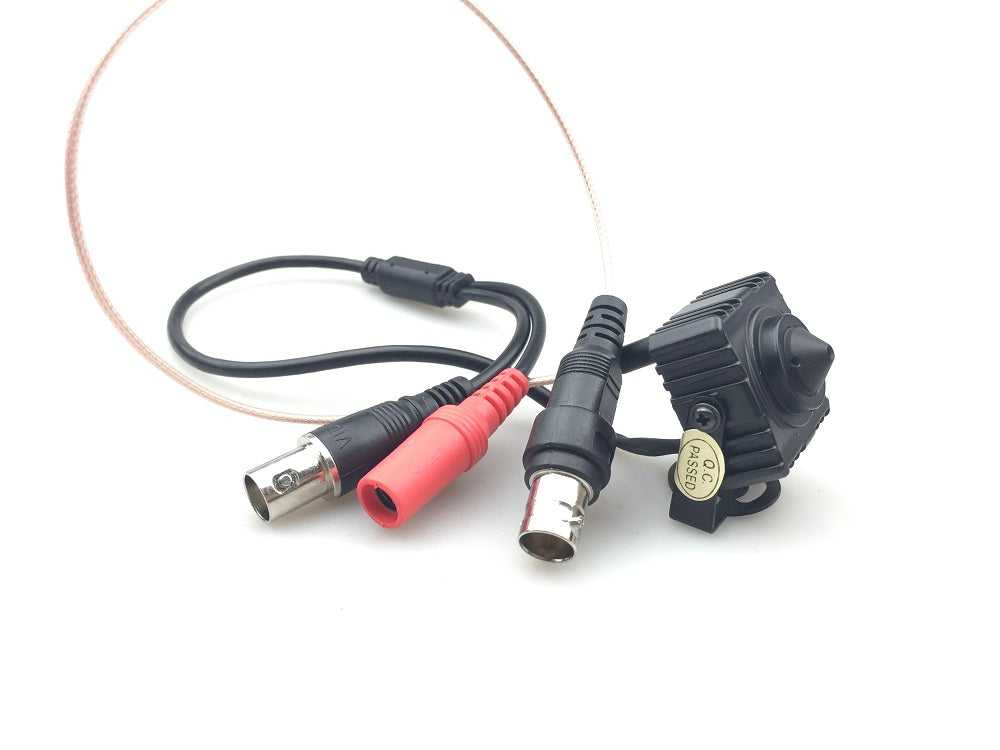

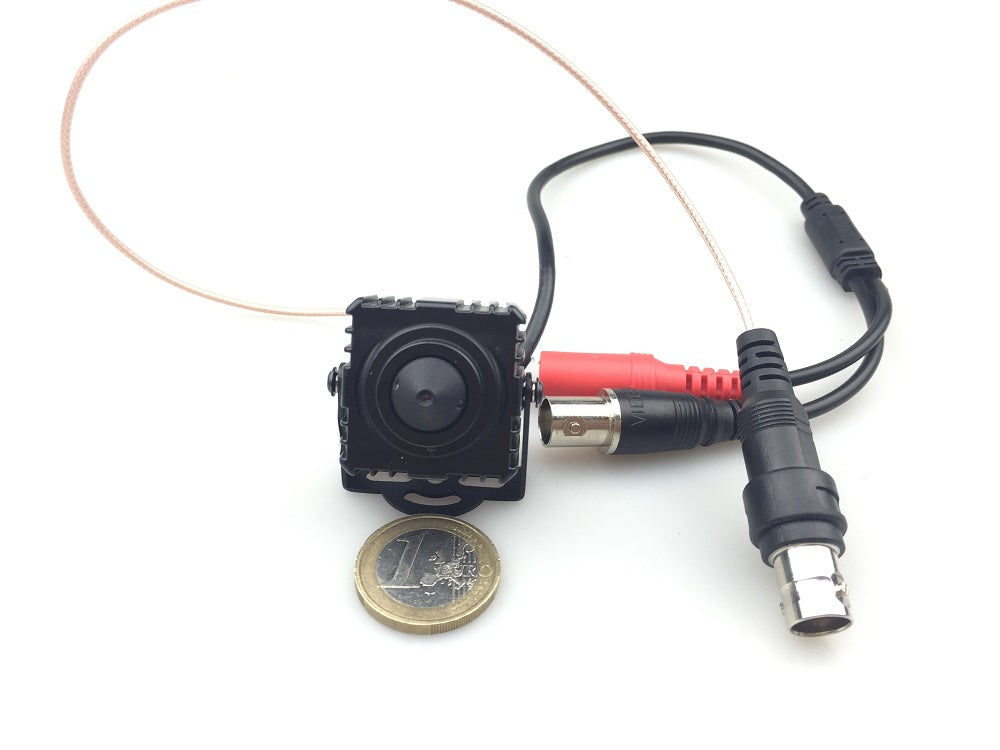

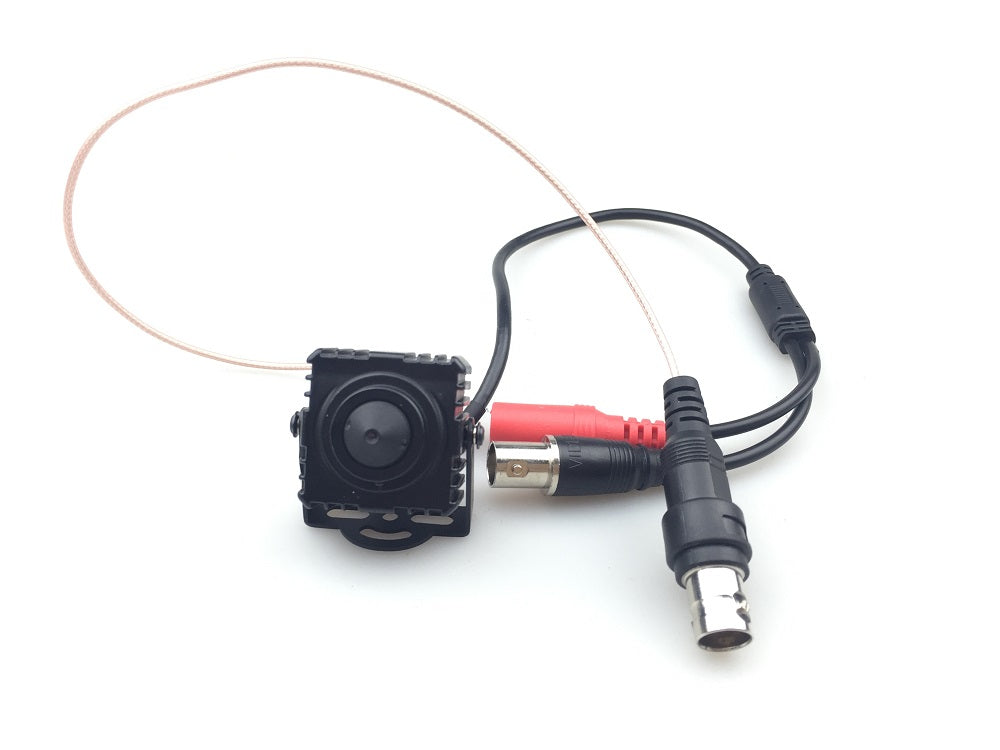

CCTV 1/2.8' Panasonic Full 2.1MP 1080P Lens 3.7mm Pinhole WDR Security Mini SDI /SDI EX /AHD/TVI/CVI /CVBS 6IN1 Box HD SDI Camera

  • $120.00
  • Save $25

Using 1/2.8 Panasonic CMOS image sensor, HD SDI 2.0MP 1080P output
1080P high definition image quality, effective resolution reaches 1920*1080, no delay, no compression, low loss and real-time transmission
OSD Menu: include D-WDR(Digital-WDR)/ DS-WDR(double scan-WDR)


Product Features:

1. Intelligent 0SD (menu) operating system. strong DSP memory. power failure without losing data. .

2. High resolution and high speed: the Panasonic SENSOR, with good color reproduction, provide a clearer Visual effects, 1/3. can display HD images FULL SCREEN 1080P,

adapt to the color temperature of light source within a wider temperature range ... Unique digital technology,

for low-light environments, improving the sensitivity of target shooting, reduce uneven and defects of the optical signal processing.

3. HLI (strong light) is a super Eclipse: for light areas and compensation to achieve proper exposure in a particular area selected.

4. WDR (intelligent wide dynamic range compensation) (high/medium/low): If there is a contrast in the same picture appears will result in excessive exposure to heavy dark, smart WDR function can make the picture improved.

5. Patented menu options: special patented design, with icons show features and intuitive, so that users can set content at a glance. 11 available languages.

6. BLC (Super backlight compensation): in the back of the objects when a bright light source, can be caused by backlighting of the subject dark parts for backlight compensation, make the subject more clearly.

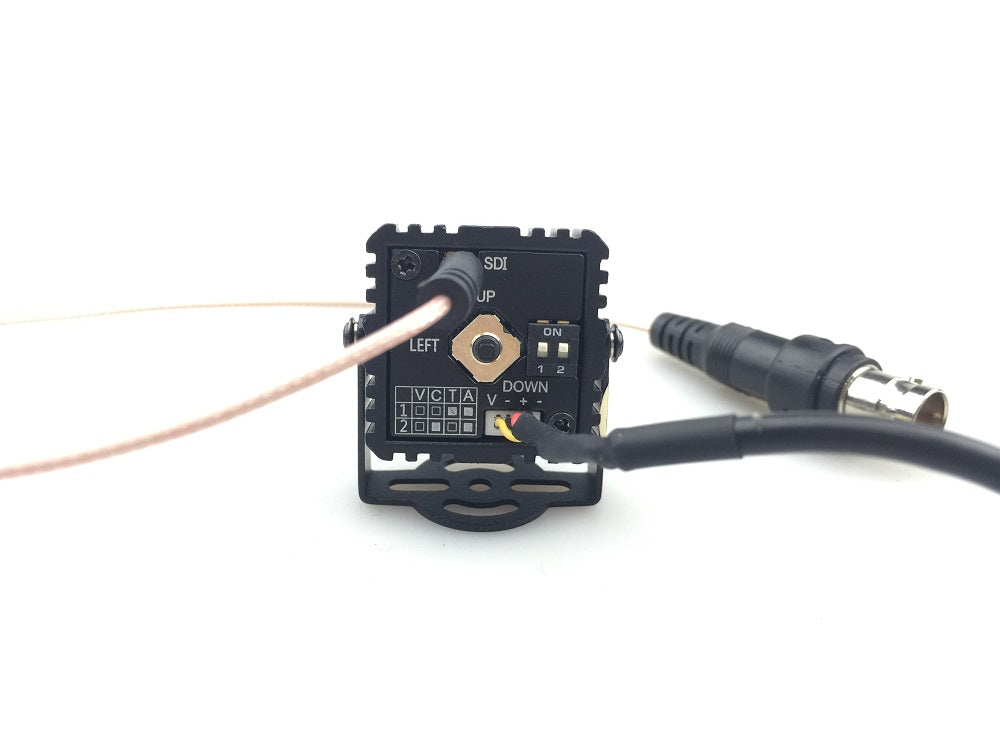

7. Support the dip switch AHD/TVI/CVI/CVBS output signal, different burning software program can output a HD/EX-SDI signal (6-in-1 signal output. to select combinations of the output signal)

8. 3D digital noise reduction, Super speed (frames accumulation).

9.Supports coaxial control signal features

10.Wide voltage: DC power supply voltage range between 10V~16V working properly.

Overall dimensions: (units mm)

Panasonic Senor Starlight 1080P Full HD Mini Pinhole HD-SDI Camera
Support AHD/TVI/CVI/CVBS-1Vp-p//EX-SDI Video Output
Product overview
•2.0 Mega Pixel,1/3”Panasonic CMOS Sensor
•1080p@30/25fps (The OSD menu choose)
•Support WDR,3D-DNR,DEFOG
•OSD menu,Motion detection,Privacy Zone,HLC,BLC
•Dual Output-Megapixel HD-SDI(BNC) CVBS:1.0 Vp-p 750hm
* Buyer Attention:
 SDI Camera can only compatible with SDI DVR
Technical parameters

Model No.


Image Sensor

2.0 Mega Pixel, Panasonic CMOS  Sensor  DSP EN771T

Effective pixels

1920(H) x 1080(V)

Scanning system

Progressive Scan

Minimum illumination

0.001 Lux(AGC OFF)oLux(IR ON)


3.7mm Pinhole Lens

IR view distance


WDR (Long and Short exposure)

OFF/ON(Level Adjustable)



3D-DNR (3D Digital Noise Reduction)




Motion Detection


Privacy Zone




B.L.C. control




White balance



0-10 steps

Electronic shutter Speed


Video output


Operation temperature

-10℃ - +60℃

Operation Humidity

Within 95% RH

Power supply


Power Consumption


 Item Included:

1 x CCTV 1/3  2.0MP 3.7mm 1080P MINI SDI  6in1 Camera
