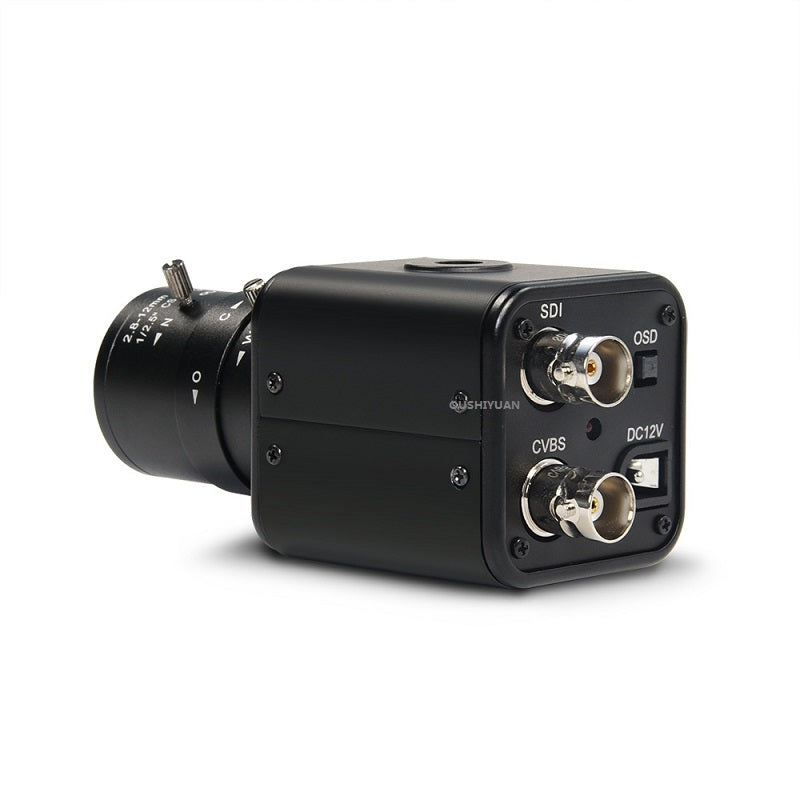

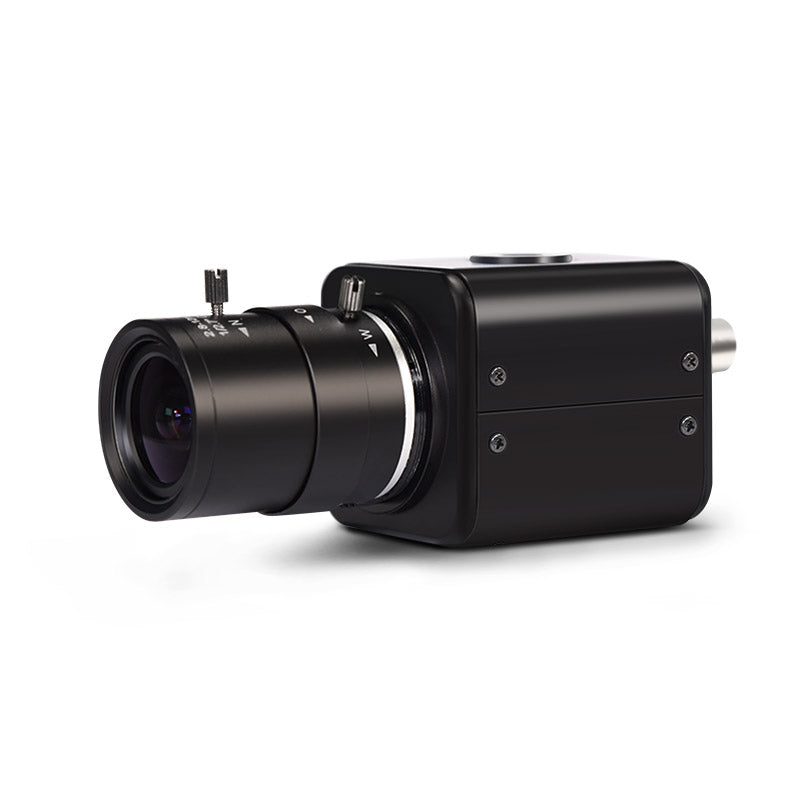

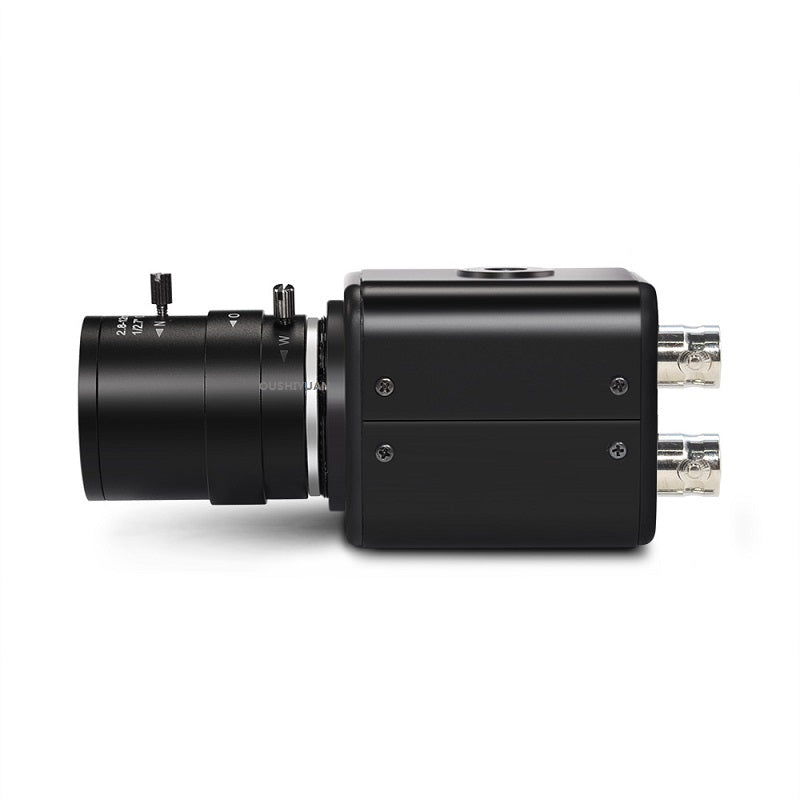

HD-SDI 2.0MP 1080P Mini Box Camera 2.8-12mm Zoom Sony Sensor
HD-SDI 2.0MP 1080P Mini Box Camera (OSY-SDI 99-9) is an affordable, professional-grade SDI camera equipped with a high-definition 2.8-12mm manual varifocal zoom lens and a 1/2.8" Sony CMOS image sensor. Delivering uncompressed, broadcast-quality Full HD video with zero latency over BNC, it is ideal for studio multi-camera live streaming, industrial inspection, and specialized surveillance.
Key Features:
- Full HD 1080P Resolution: Delivers sharp 1920×1080 video at 30fps/25fps powered by a high-sensitivity 2.0MP Sony CMOS sensor with progressive scanning.
- 2.8-12mm Manual Varifocal Zoom Lens: Integrated 3MP optical zoom lens allows flexible field-of-view adjustments from wide-angle to telephoto with independent zoom and focus rings.

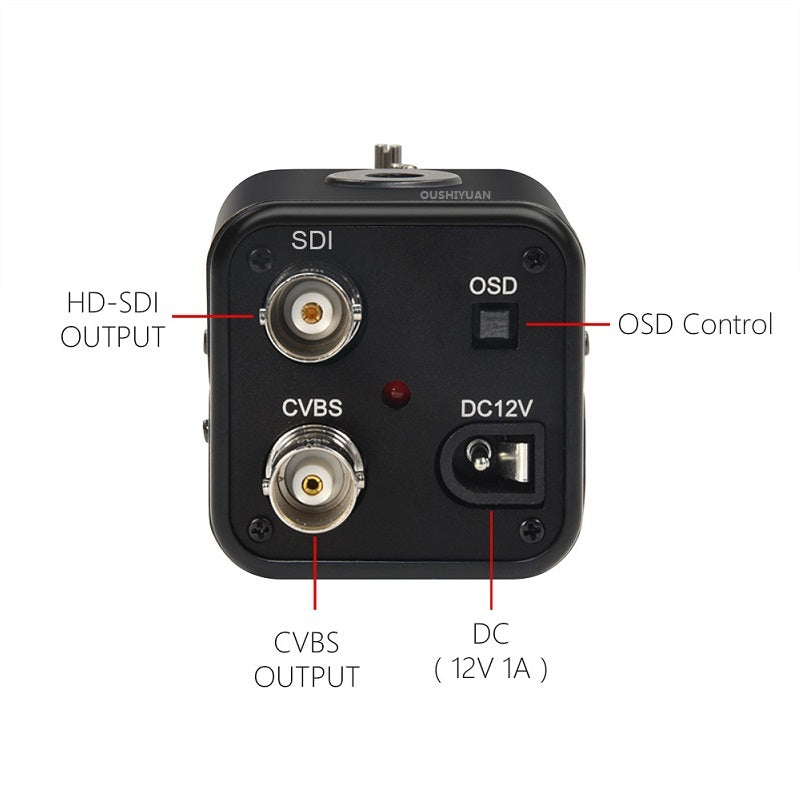

- Broadcast-Grade HD-SDI Output: Professional BNC output compliant with SMPTE 292M standards (75Ω) alongside analog CVBS output for long-distance, interference-free signal transmission.
- Hardware WDR & 3D-DNR: Built-in Wide Dynamic Range balances challenging high-contrast lighting, while 3D Digital Noise Reduction maintains clear, low-noise video down to 0.001 Lux.
- On-Screen Display (OSD) Controls: Comprehensive OSD menu for Defog, BLC, HLC, Sens-Up, Motion Detection, Privacy Masking, and white balance calibration.

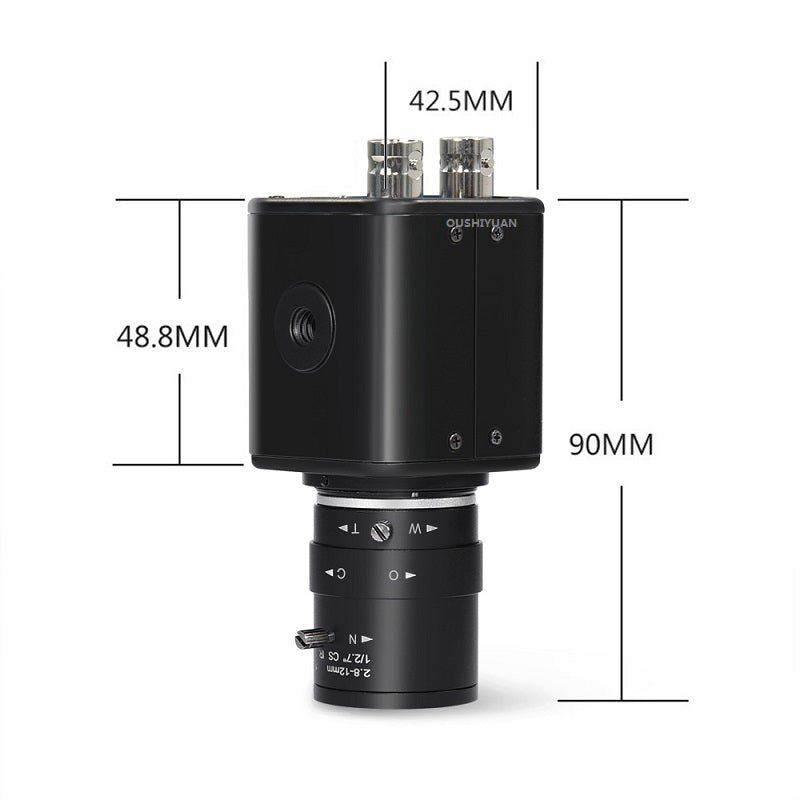

- Ultra-Compact Form Factor: Sturdy metal box housing designed for easy integration into tight setups, camera rigs, and industrial brackets.
Specifications:
| Model | OSY-SDI 99-9 (2.8-12mm) |
| Image Sensor | 1/2.8" 2.0 Mega Pixel Sony CMOS Sensor |
| Effective Pixels | 1920(H) × 1080(V) @ 30/25fps |
| Scanning System | Progressive Scan |
| Lens Included | 3MP 2.8-12mm Varifocal Manual Zoom Lens |
| Min. Illumination | 0.001 Lux |
| Video Output | HD-SDI (SMPTE 292M compatible, 75Ω) / CVBS 1.0 Vp-p (75Ω) |
| WDR | On / Off (Adjustable level) |
| Noise Reduction | 3D-DNR (Low / Middle / High / Off) |
| Image Functions | Defog, BLC, HLC, Sens-Up, Motion Detection, Privacy Zone |
| White Balance | AWB / ATW / Push / Manual |
| Power Supply | DC 12V (±15%), 100mA (Power Supply Included) |
| Operating Conditions | -10°C to +50°C, Humidity < 95% RH |

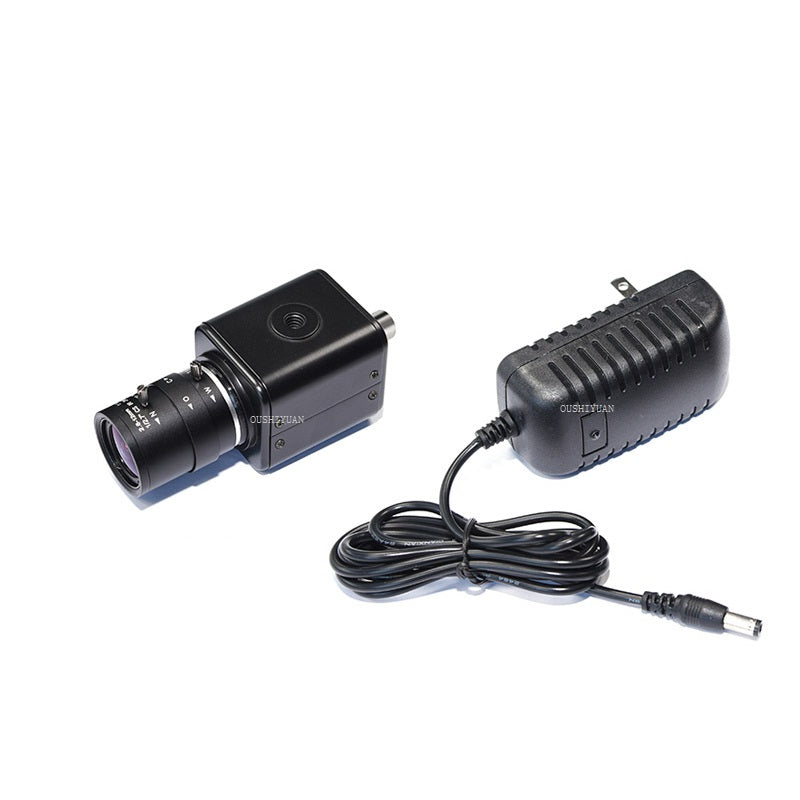

Package Includes:
- 1 × HD-SDI 2.0MP Camera (with 2.8-12mm Varifocal Lens)
- 1 × DC 12V Power Adapter
Applications:
Widely used for live broadcasting, multi-camera video production, church/event streaming, industrial machine vision, laboratory monitoring, and high-security surveillance.
Purchase with Confidence:
- Free Shipping
- 1-Year Manufacturer Warranty with dedicated technical support.
- 30-Day Return Policy for peace of mind.
