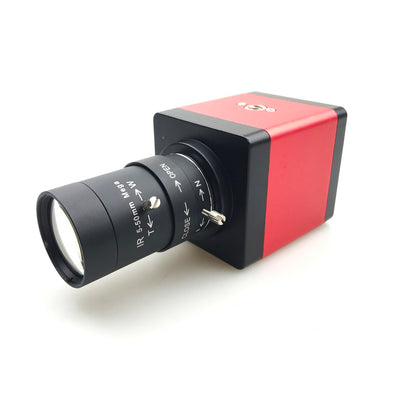

HDMI Camera Full 1080P 2.0MP 5-50mm Zoom Industrial Live Digital Camera
1080P 2.0MP HDMI & VGA Industrial Camera with 5-50mm Varifocal Zoom Lens delivers high-definition, real-time uncompressed video directly to any HDMI monitor, TV, or projector without requiring a computer. Equipped with a 1/2.8" CMOS sensor, dual simultaneous video outputs, and a versatile 10X manual zoom lens, it is the ideal standalone solution for PCB soldering, industrial inspection, microscope work, and live demonstrations.
Key Features:
- Full HD 1080P Real-Time Display: Direct plug-and-play to HDMI or VGA displays with zero latency, providing clear, high-resolution 1920×1080 imagery without needing a computer or software.

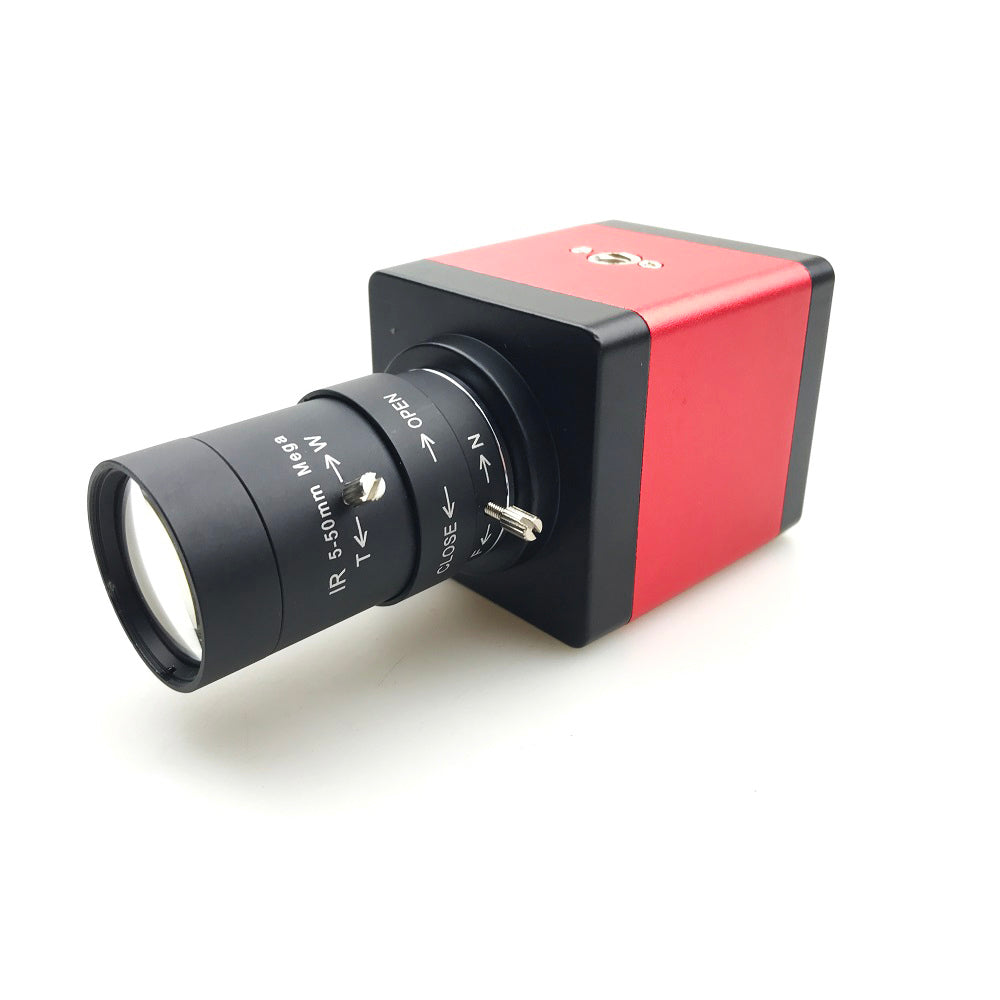

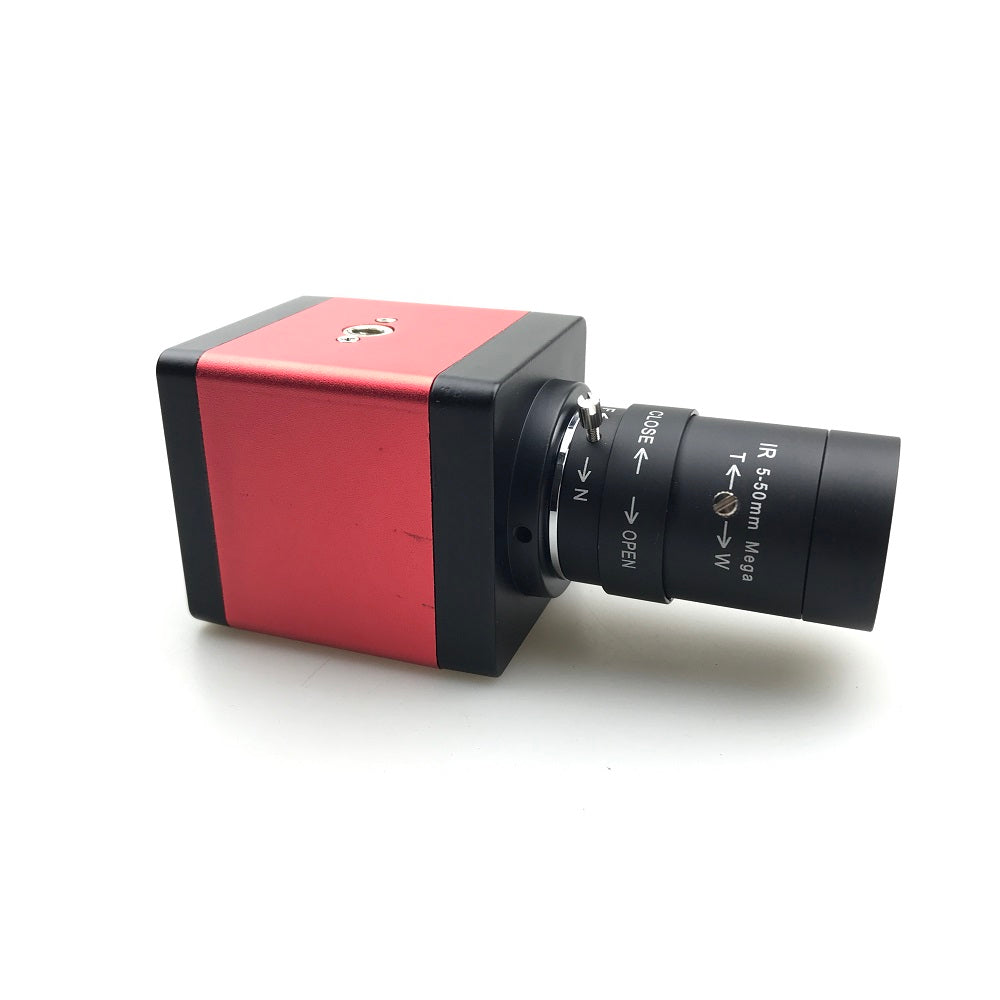

- 5-50mm Manual Varifocal Zoom Lens: Features smooth manual focus, zoom, and aperture adjustment with dedicated locking thumbscrews to secure your optical settings.

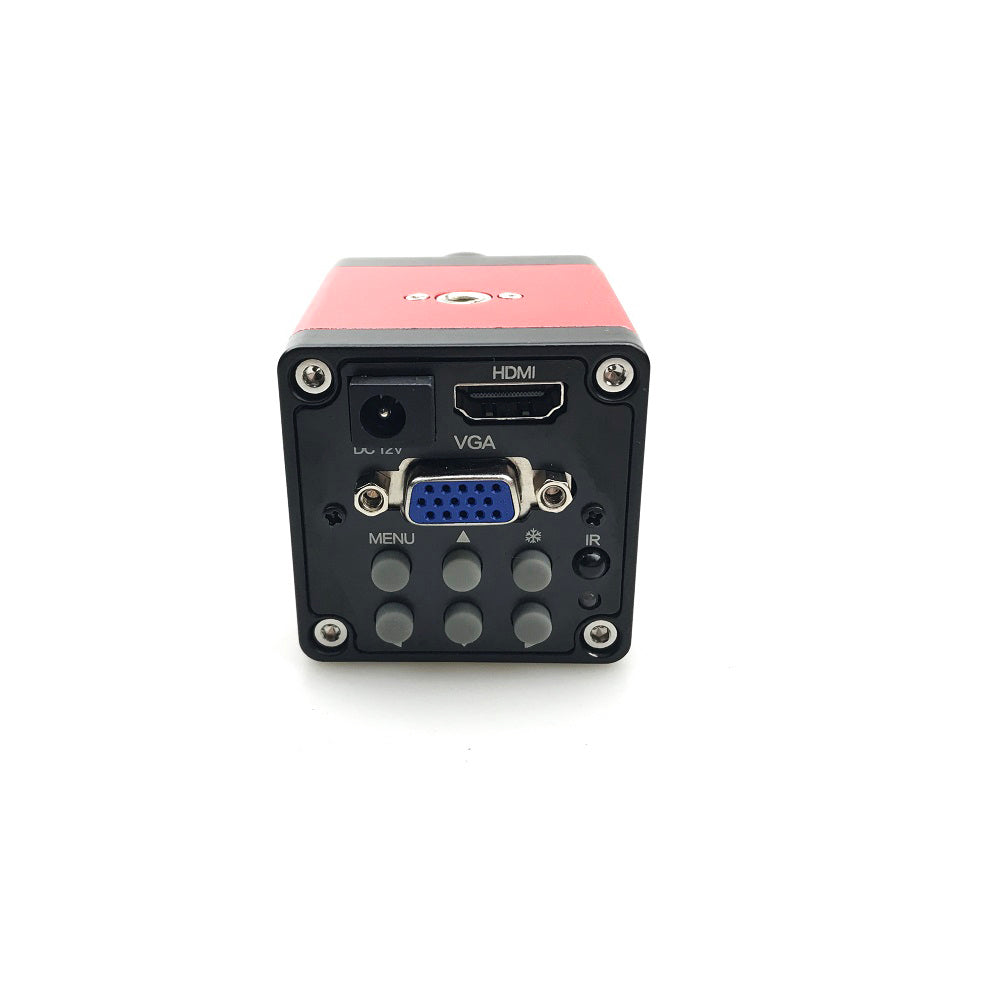

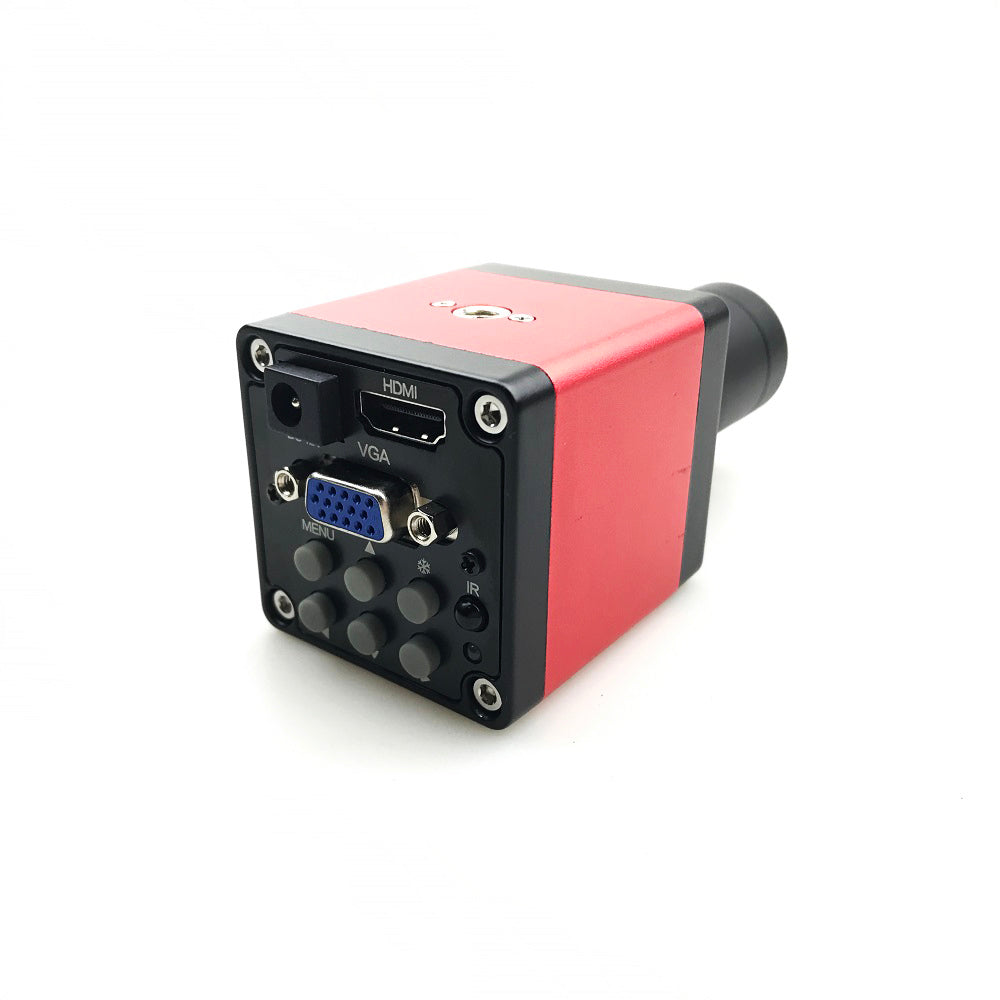

- Dual Outputs & Flexible Controls: Simultaneous HDMI and VGA output. Control all camera settings via the on-body 5-key navigation buttons or the included wireless IR remote control.
- Comprehensive Image Customization: Supports one-key automatic or manual white balance, brightness, contrast, saturation, exposure control, image mirroring (horizontal/vertical), and real-time image freeze.

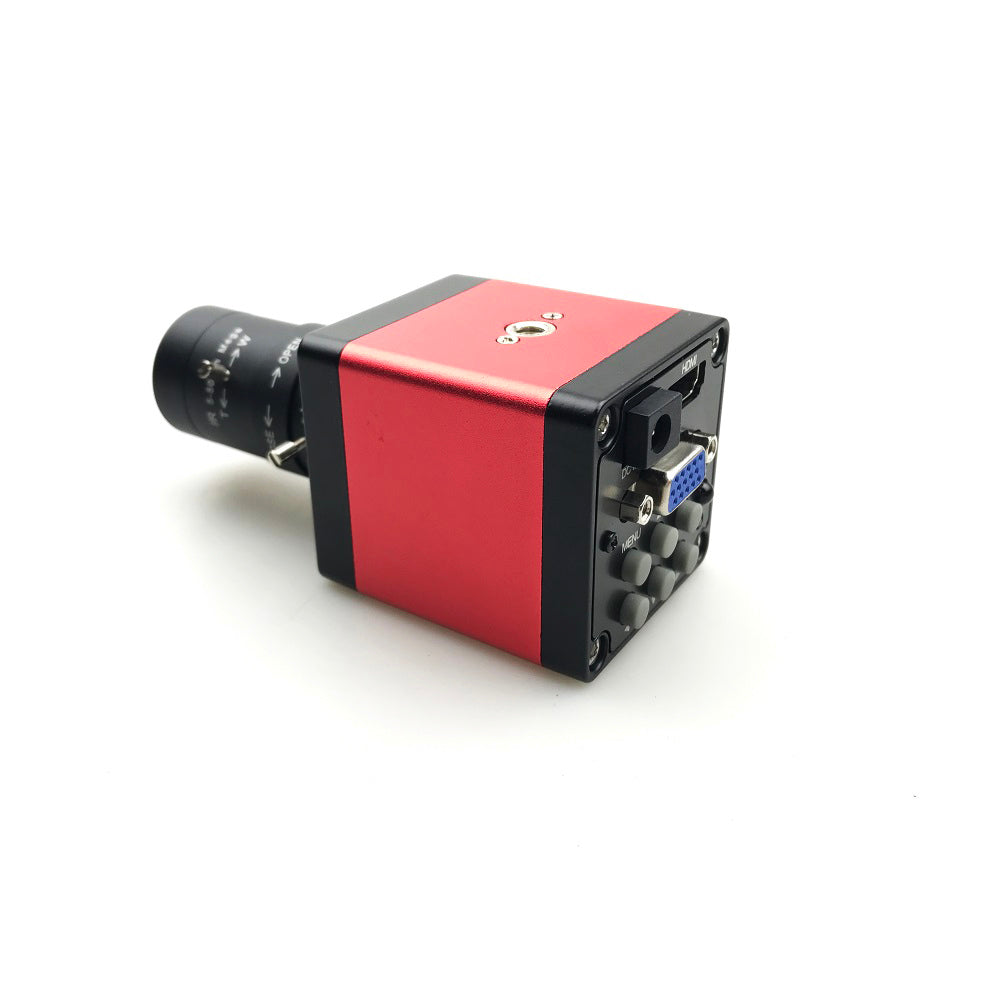

- Rugged Metal Housing: Robust aluminum alloy enclosure featuring standard 1/4"-20 threaded mounting holes for easy attachment to articulating arms, tripods, and microscope stands.
Specifications:
| Image Sensor | 1/2.8" CMOS Sensor |
| Video Resolution | 1080P (1920×1080) / 1024×768 |
| Video Outputs | HDMI + VGA (Simultaneous Output) |
| Lens Included | 5-50mm Varifocal Manual Zoom (CS-Mount) |
| Control Method | Rear 5-Key OSD Buttons & Wireless IR Remote |
| Basic Adjustments | Brightness, Contrast, Saturation (0–100% Adjustable) |
| White Balance | One-Key Auto White Balance / Manual (R/G/B adjustable) |
| Exposure | Automatic / Manual Exposure |
| Image Functions | Mirroring (H/V), Image Freeze, Crosshair overlay |
| Menu Language | English / Chinese |
| Power Supply | DC 12V 1A (Adapter Included) |

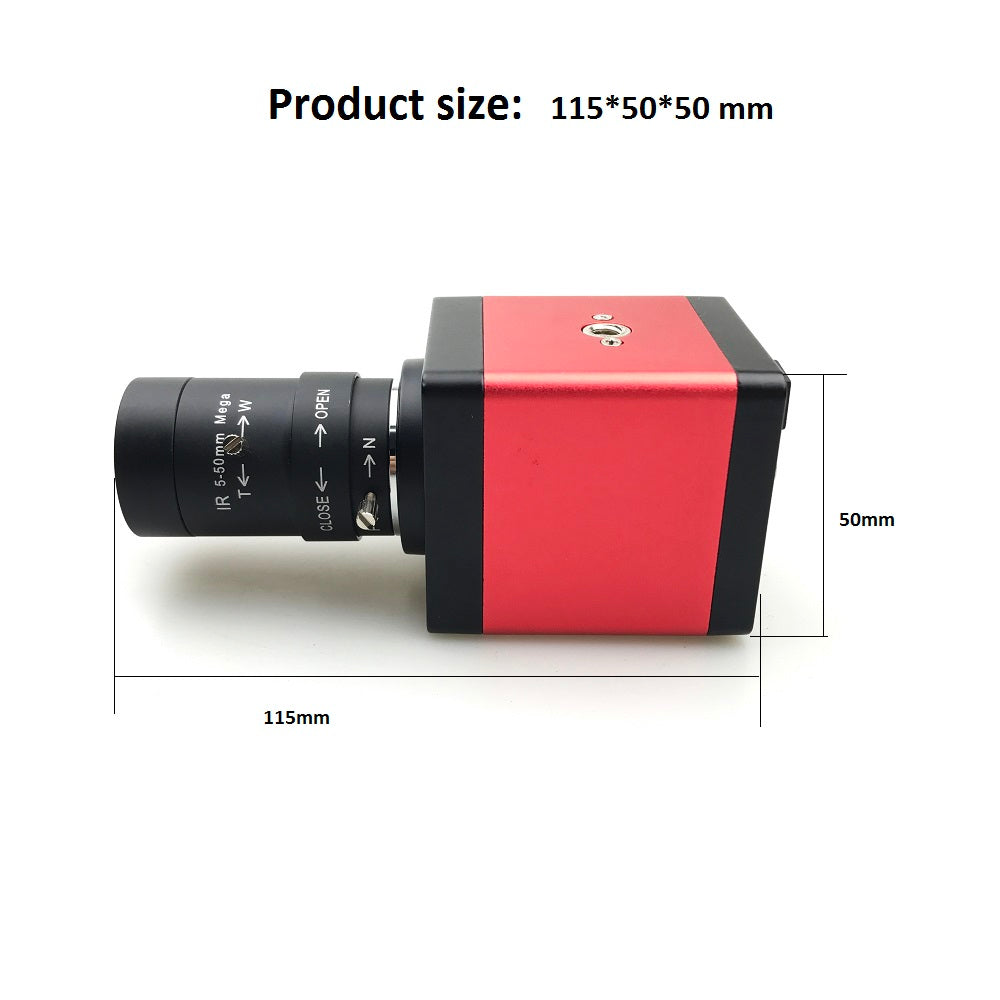

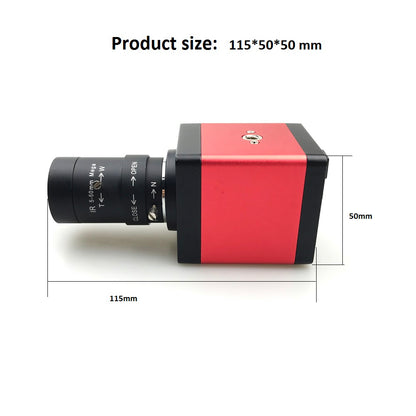

| Dimensions | 115mm × 50mm × 50mm |

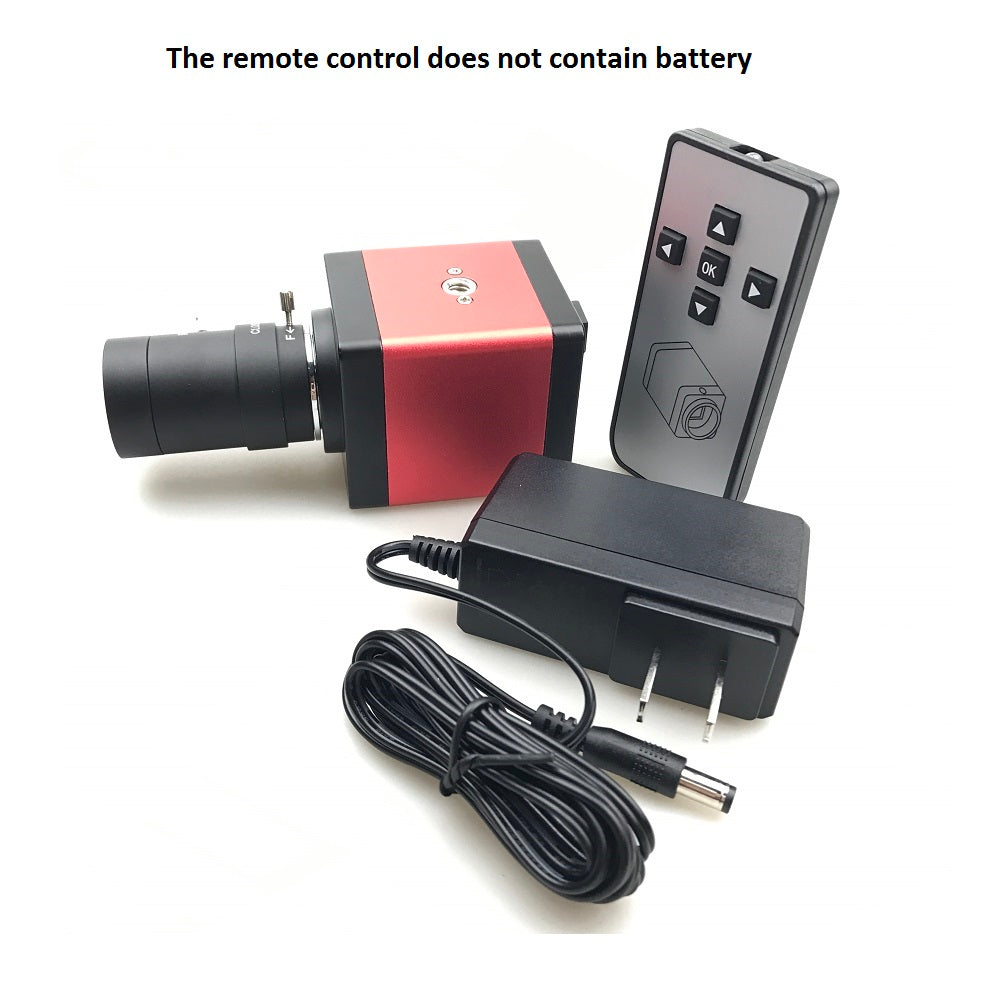

Package Includes:
- 1 × 1080P Industrial Camera Body
- 1 × 5-50mm Varifocal Zoom Lens
- 1 × 12V 1A DC Power Adapter
- 1 × Wireless IR Remote Controller (Battery not included)
Applications:
Widely utilized in electronics repair, PCB soldering inspection, industrial quality control, factory automation, laboratory microscopy, jewelry appraisal, and classroom teaching demonstrations.
