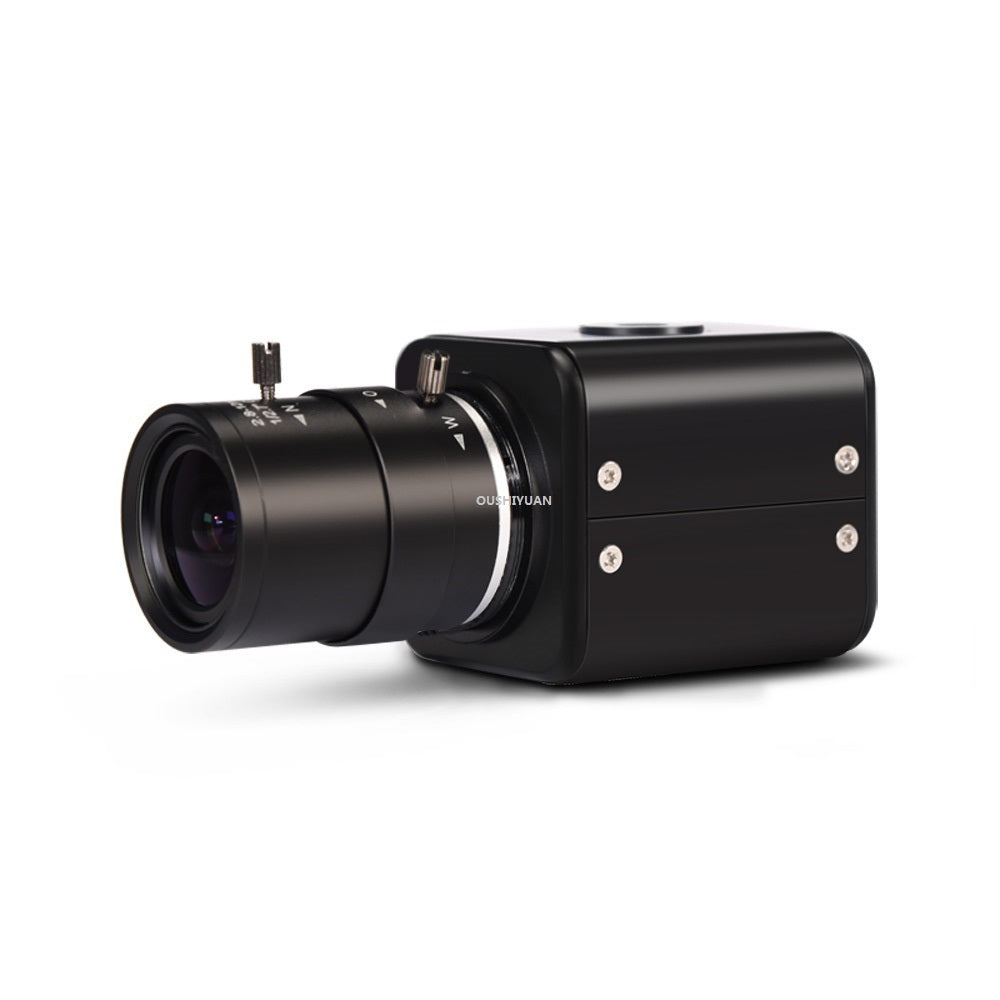

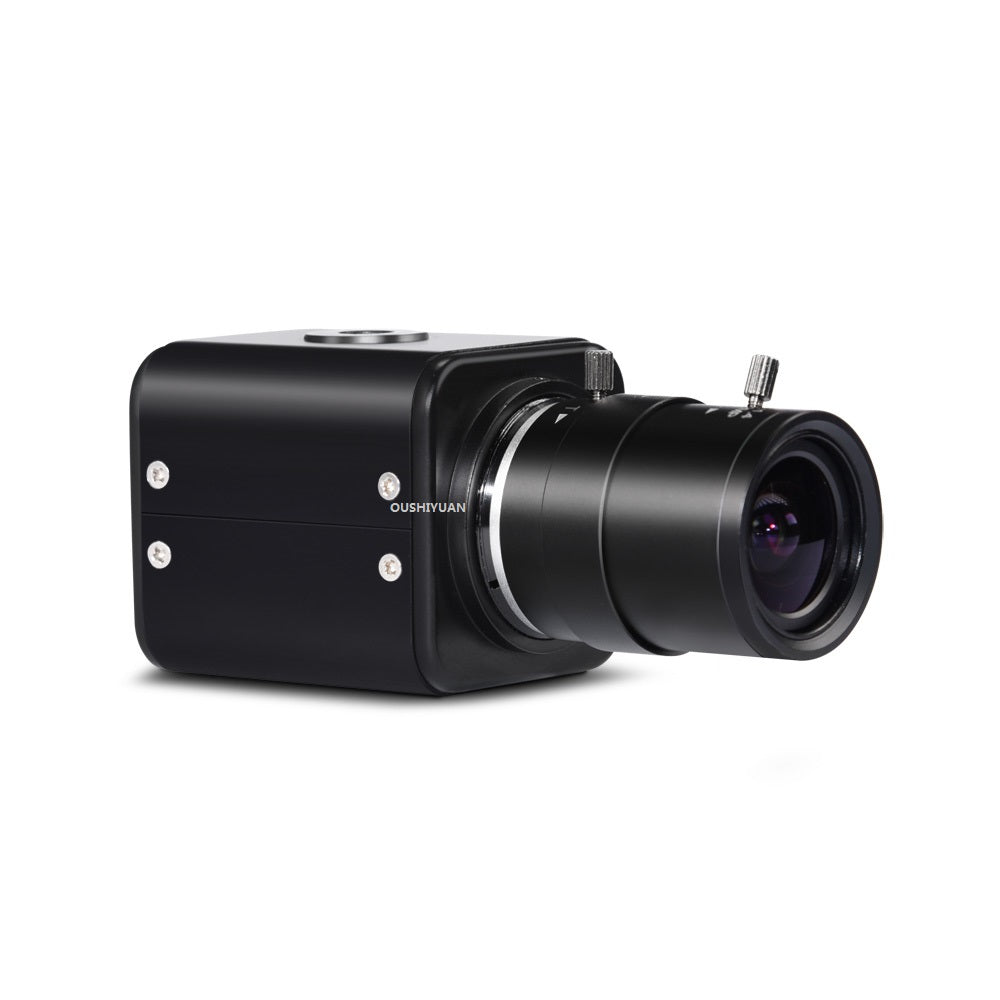

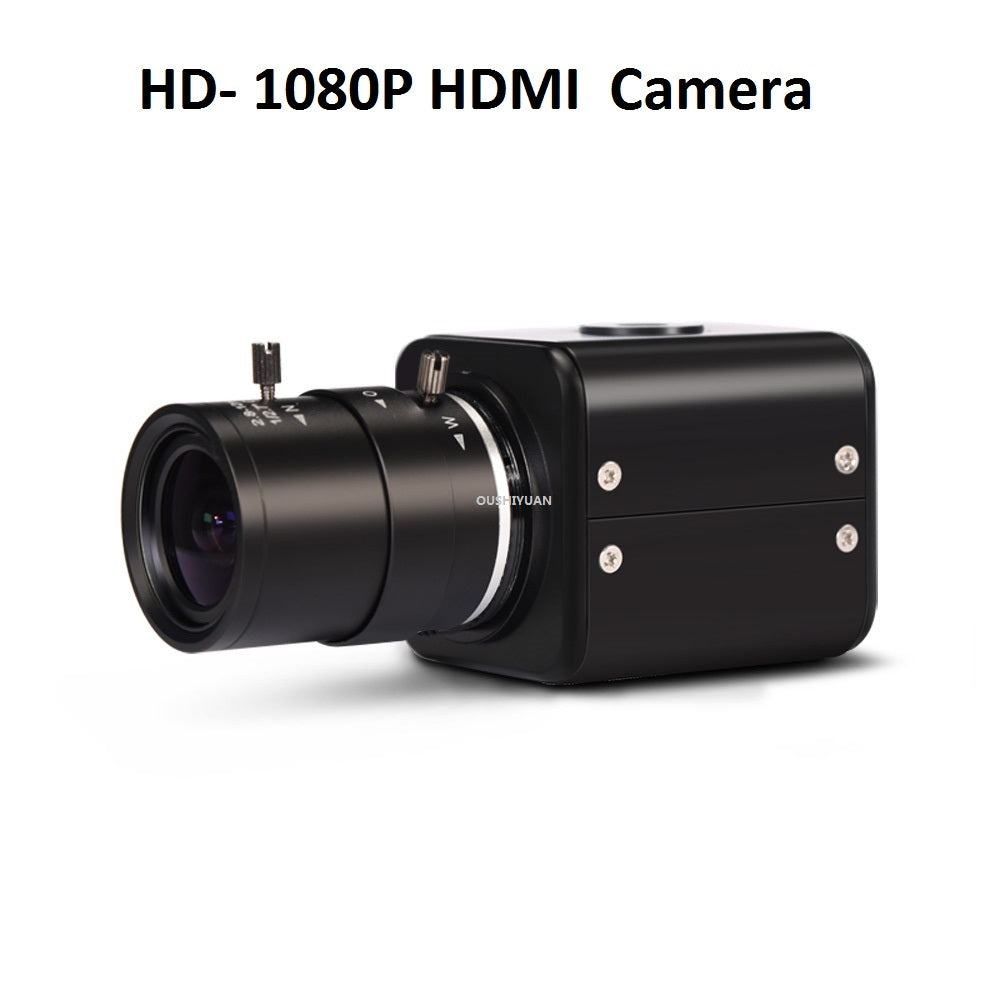

2.0MP 1080P HDMI Industrial Camera for Live Streaming & Machine Vision Inspection
The OSYBZ 2.0MP 1080P HDMI Industrial Camera delivers uncompressed, zero-latency Full HD video output directly to monitors, capture cards, and TV screens. Engineered with a high-sensitivity 1/2.5" sensor and standard C/CS mount, it is an ideal imaging solution for live streaming, soldering inspection, microscope observation, and industrial quality control.
Key Features
- Full HD 1080P at 60FPS: Native 1920x1080 resolution with smooth high-frame-rate output for fluid live broadcast and precision visual inspection.
- Direct HDMI Plug & Play: Connects directly to any HDMI monitor, switcher, or TV without needing a computer or software driver.
- Versatile C/CS Mount: Includes a 2.8-12mm manual zoom lens, compatible with standard industrial and microscope C-mount lenses.
- Advanced On-Screen Menu (OSD): Features 8 customizable crosshairs (adjustable color, position, and line width), image freeze, mirror flip, and comparison modes.
- Industrial Durability: Solid metal casing built for long-hour continuous operation in workshops, laboratories, and studio environments.
Technical Specifications

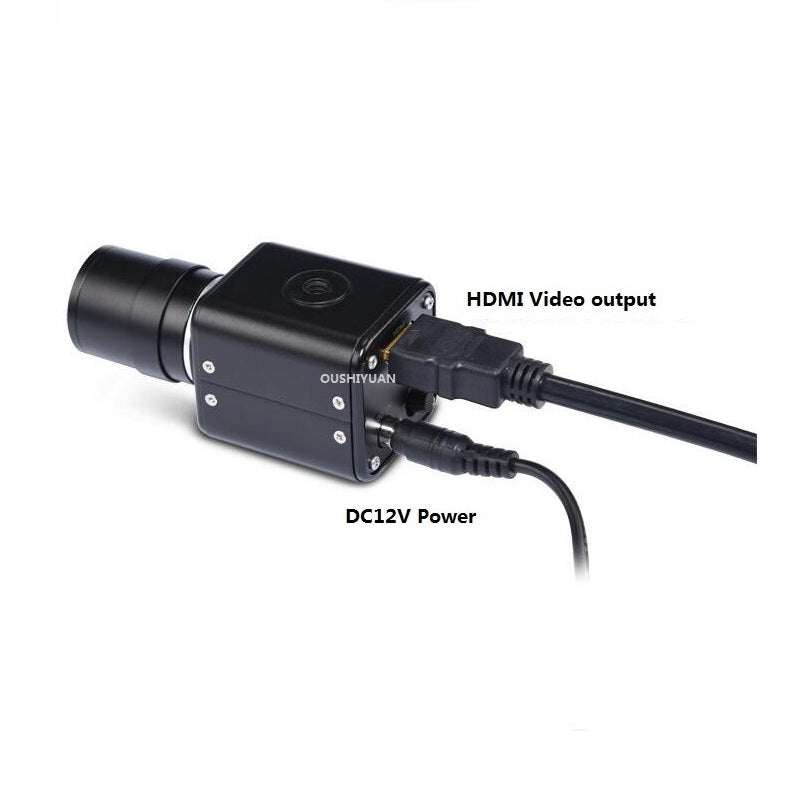

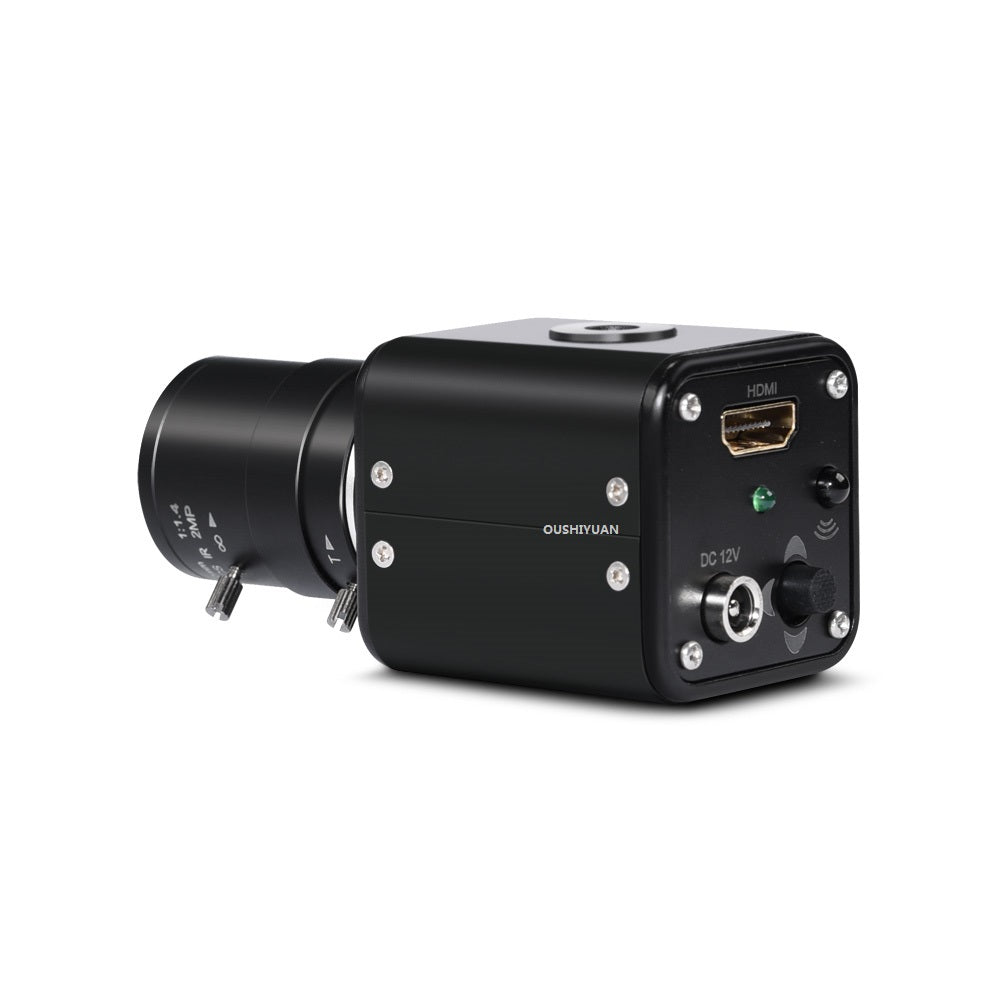

- Video Output: HDMI (Type A)
- Effective Resolution: 1920 x 1080 (1080P)
- Frame Rate: 60 FPS
- Image Sensor: 1/2.5" Progressive CMOS (Pixel size: 3.0µm x 3.0µm)
- Lens Interface: Standard C / CS mount (Includes 2.8-12mm zoom lens)
- Dynamic Range: 60 dB
- Signal-to-Noise Ratio (SNR): 45 dB

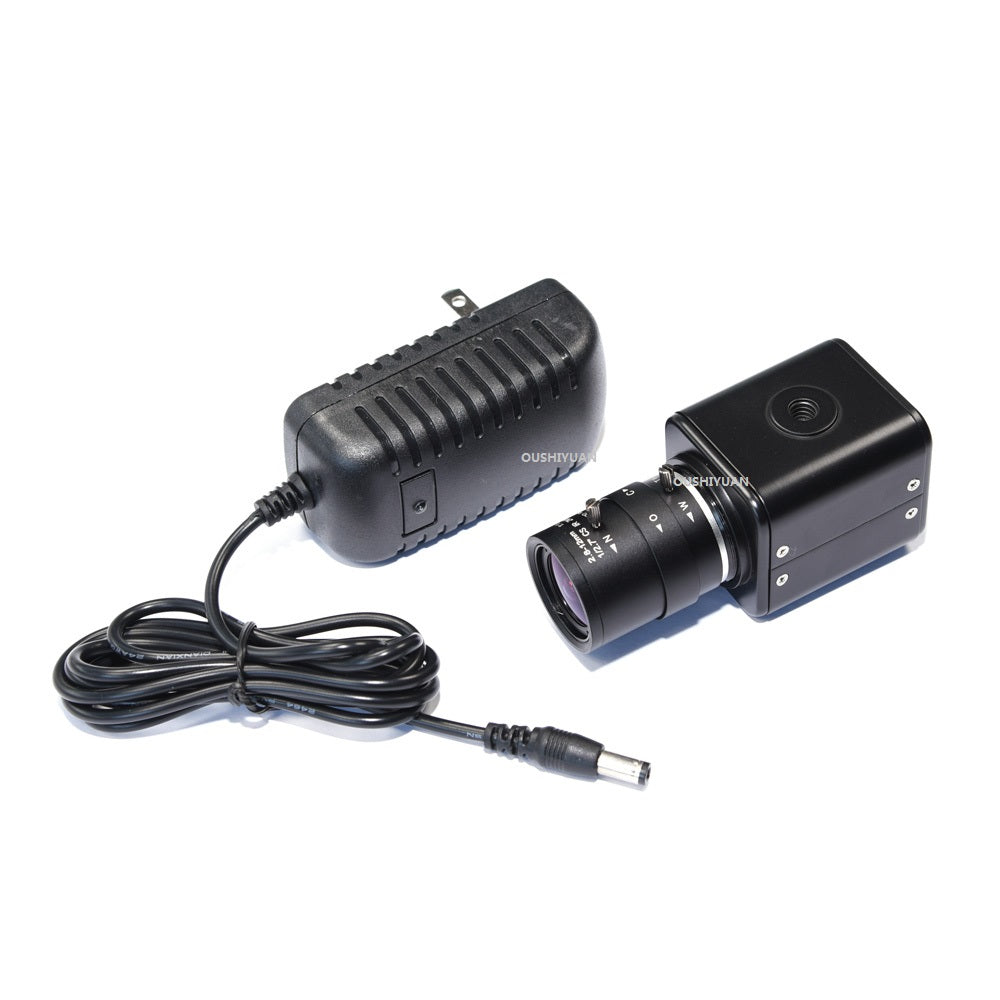

- Power Input: DC 12V / 150mA
- OSD Menu Language: English / Chinese
- Crosshair Generator: 8 lines (movable, color and line width adjustable)
- Image Control: Brightness, Contrast, Sharpness, Saturation, Mirror (H/V), Screen Freeze
Note: If switching to other specialized lenses, please ensure an IR-cut filter is used to maintain accurate color rendition.
